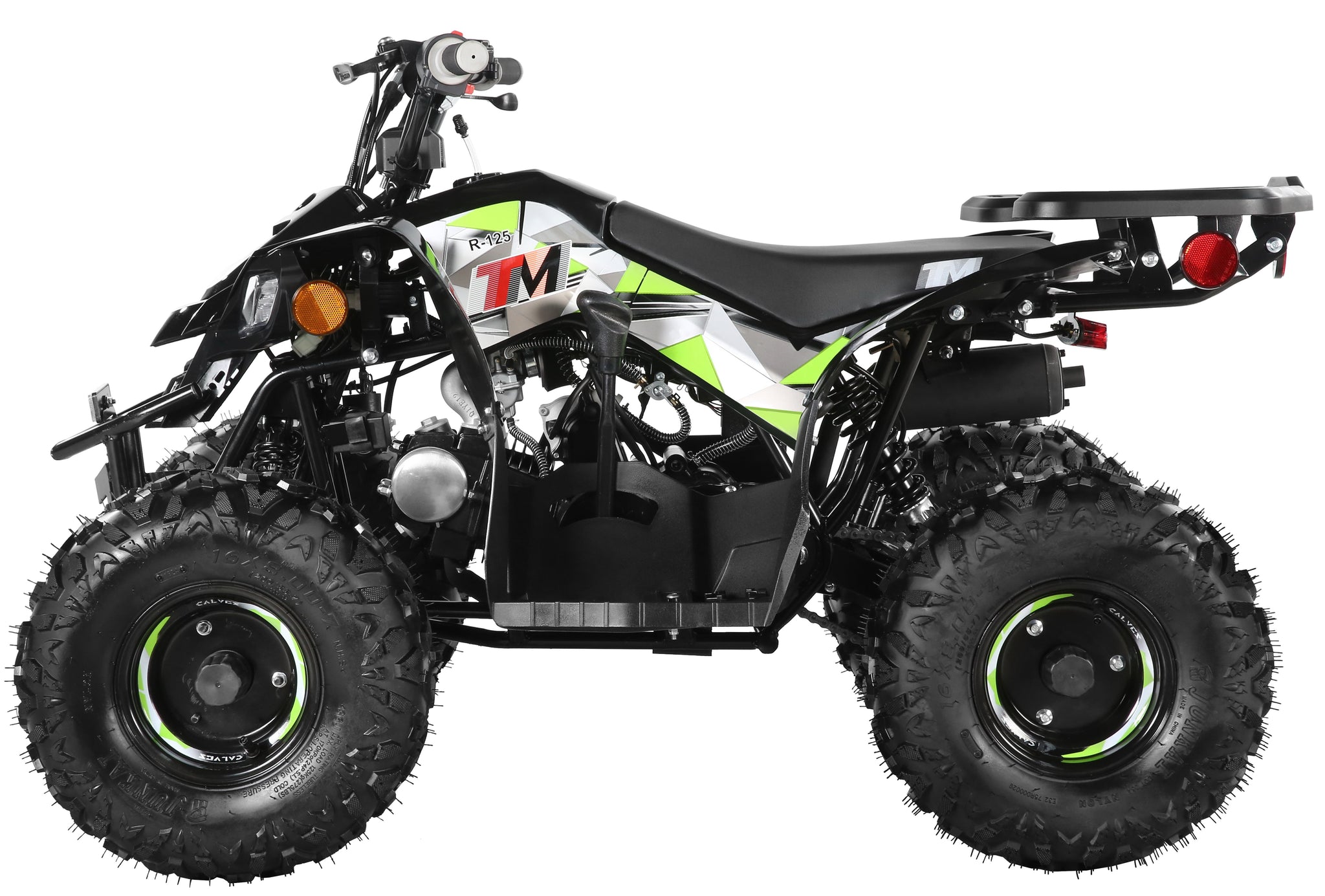

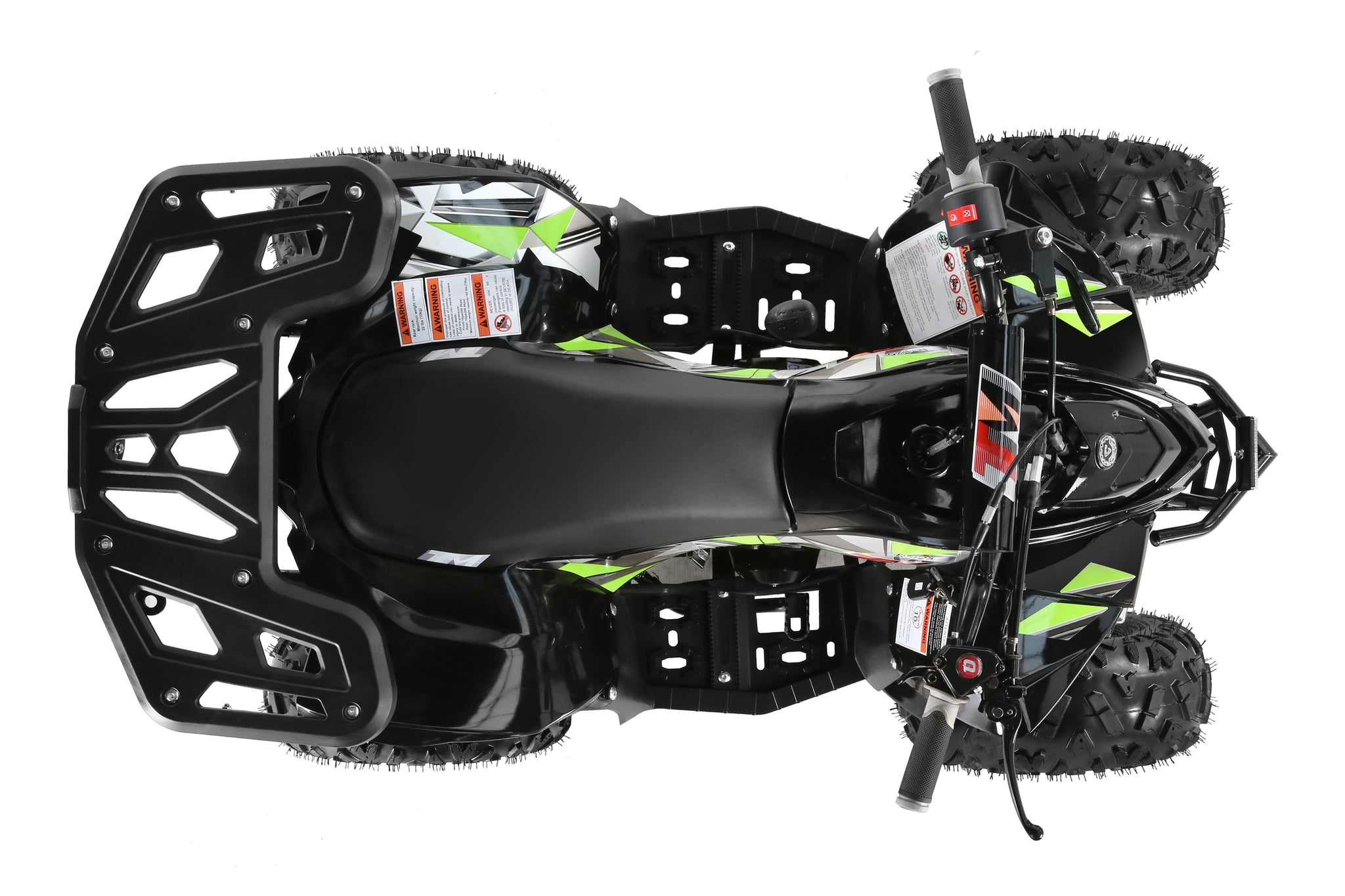

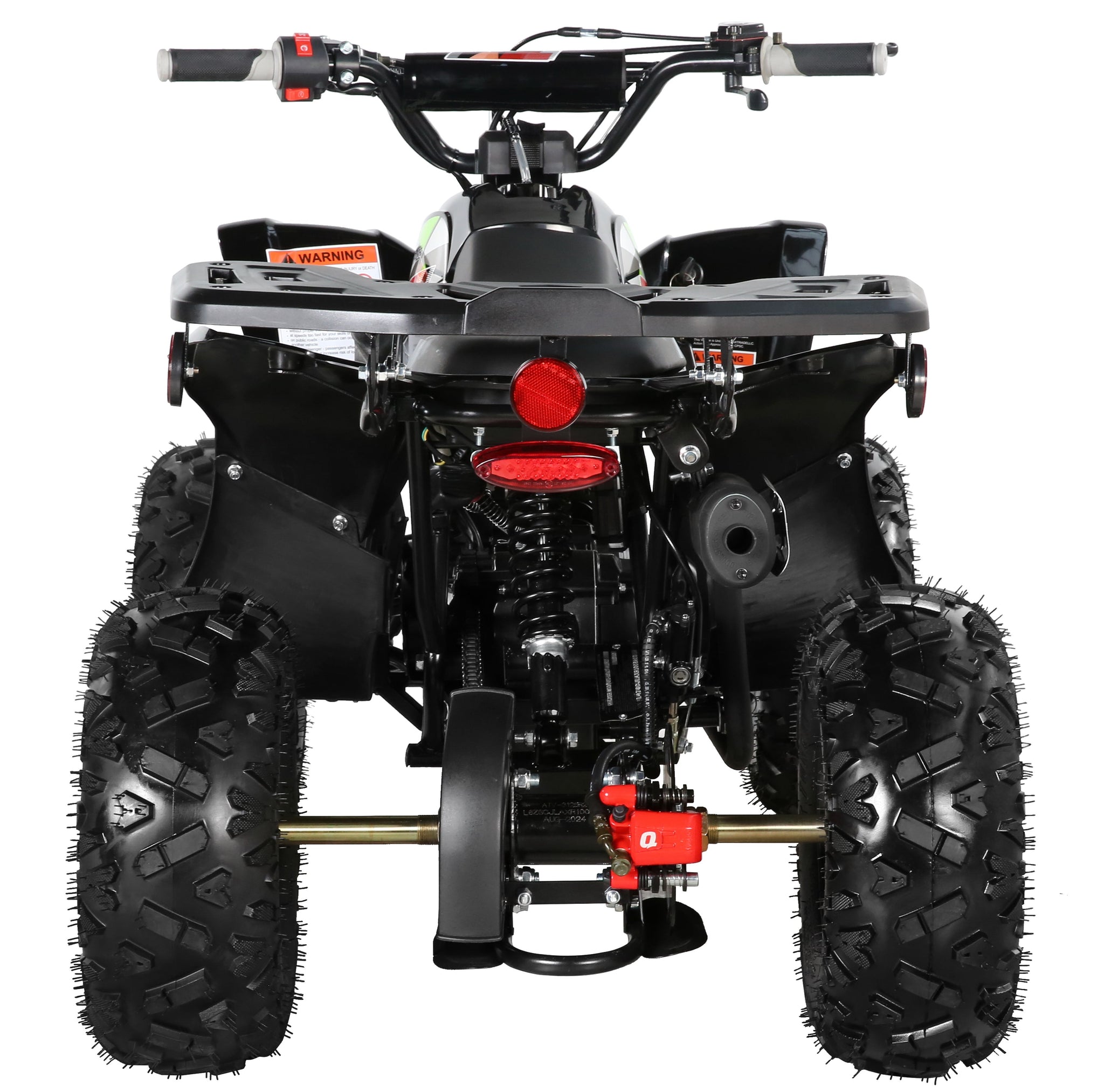

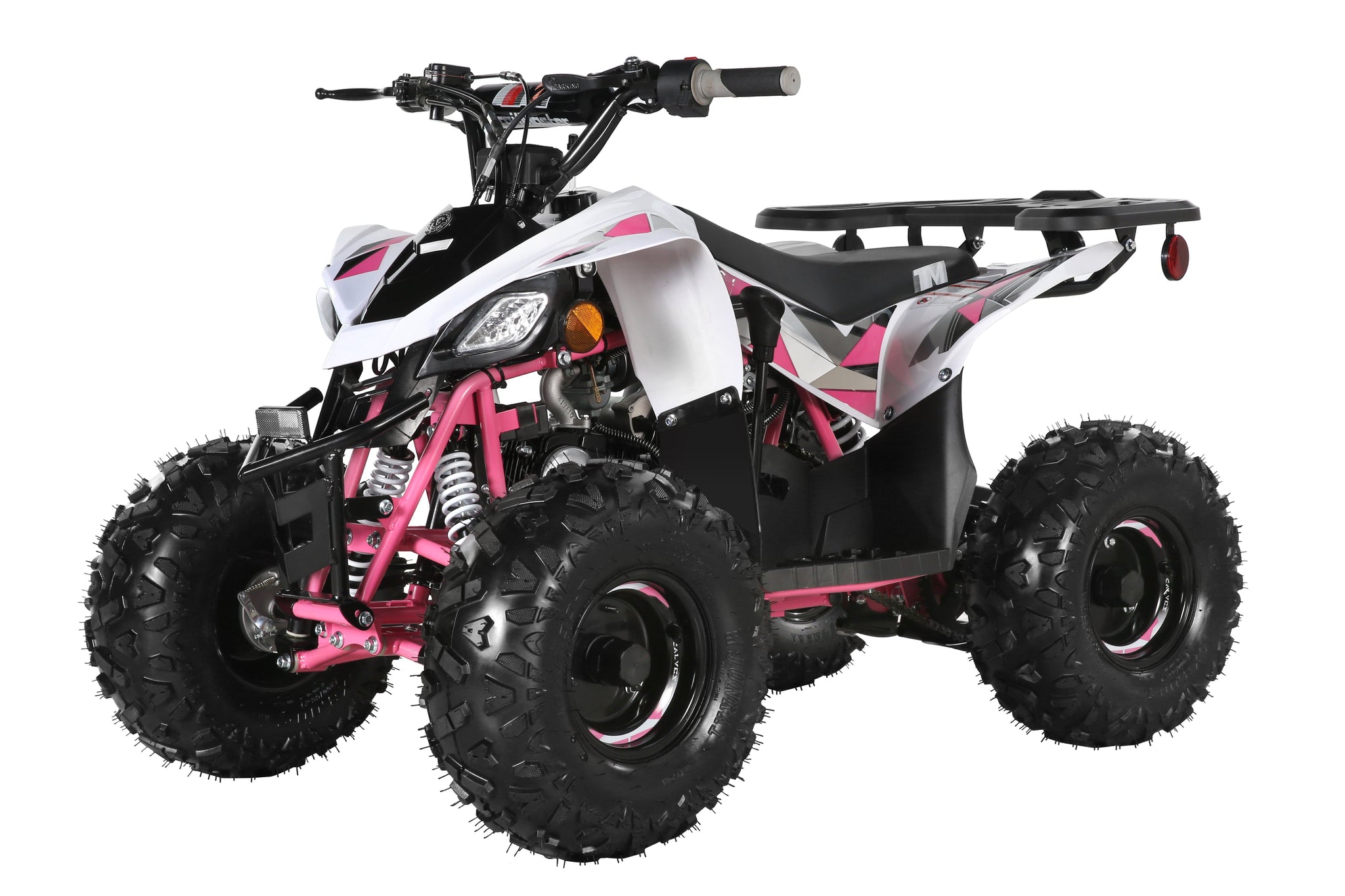

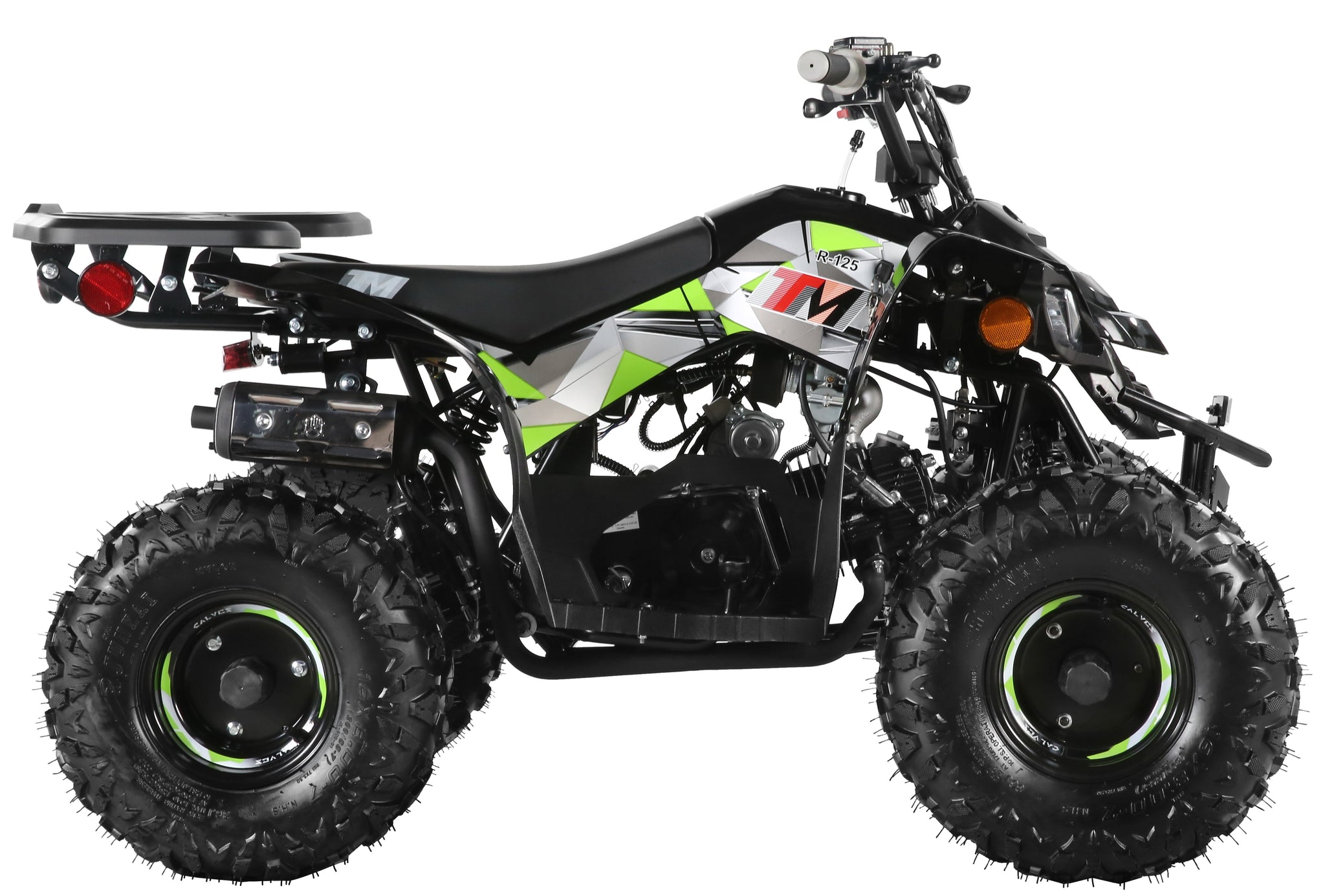

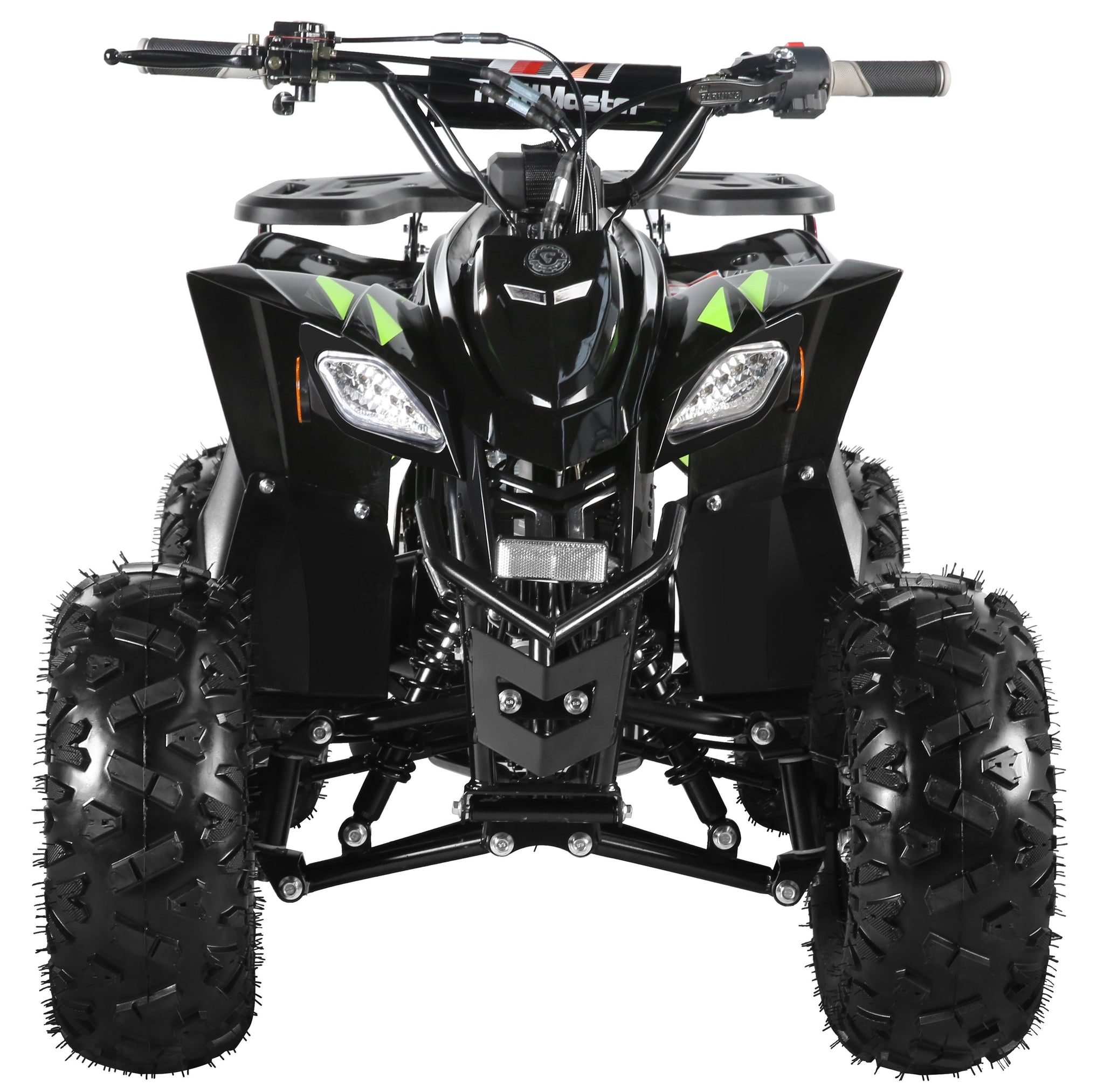

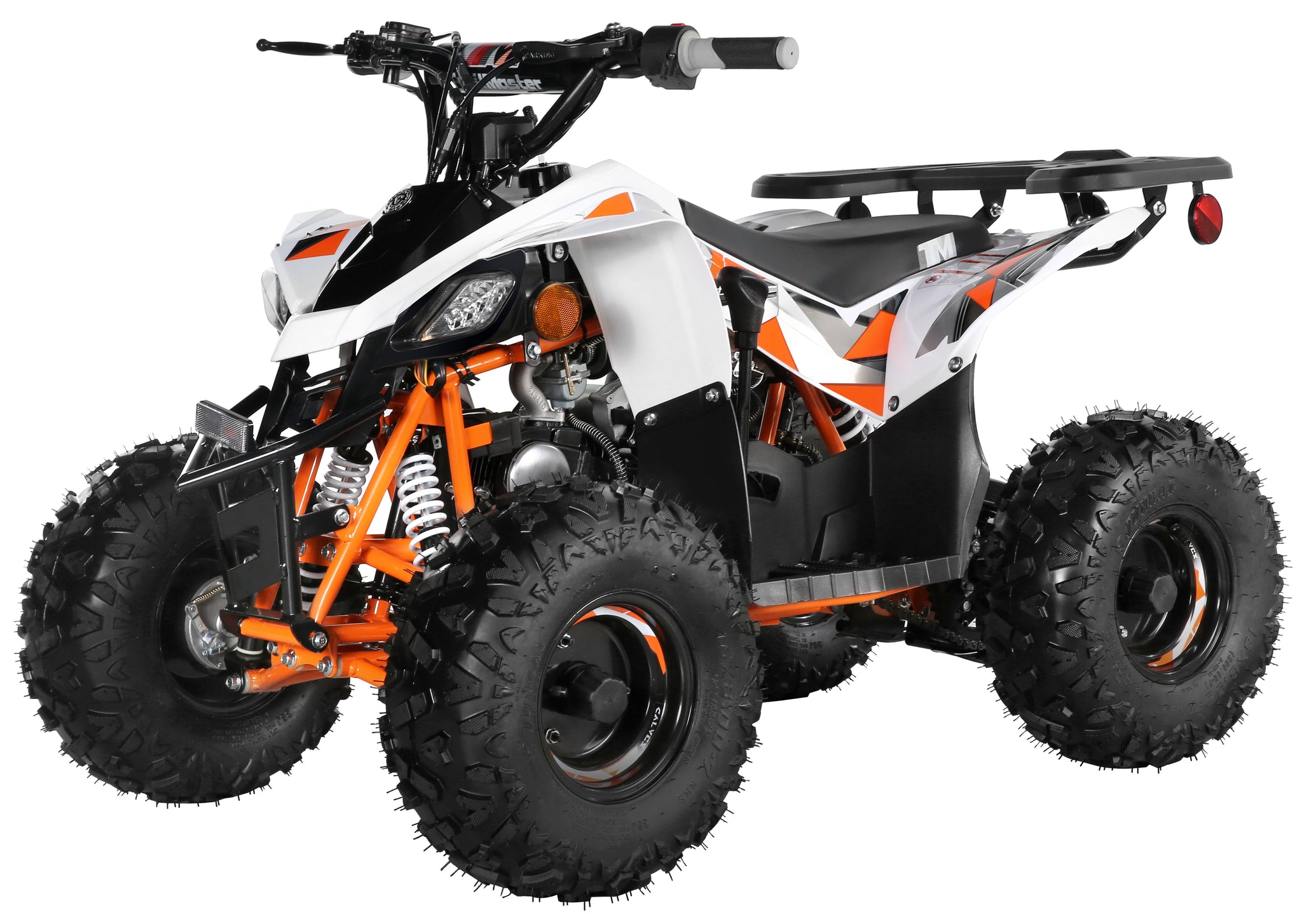

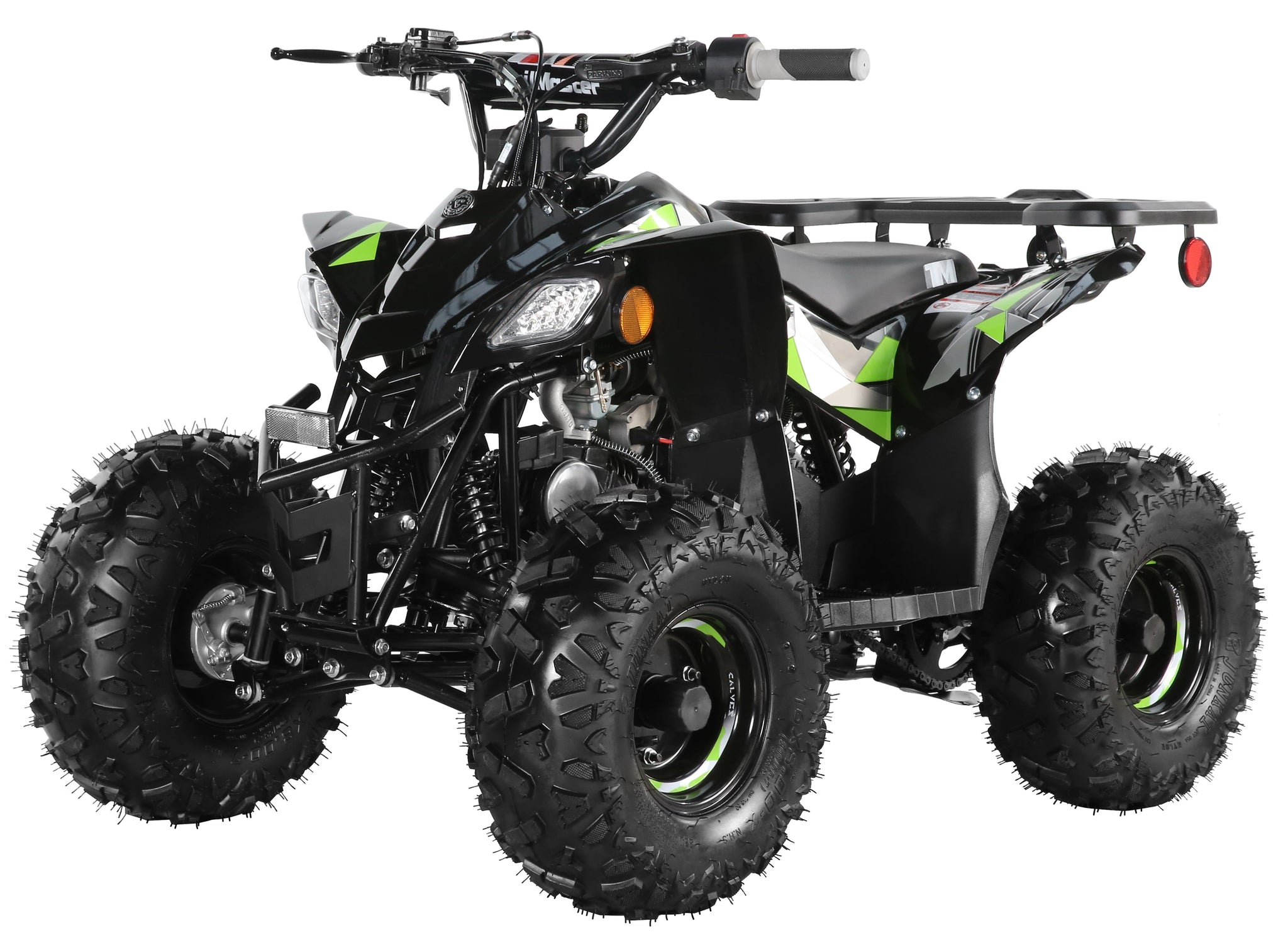

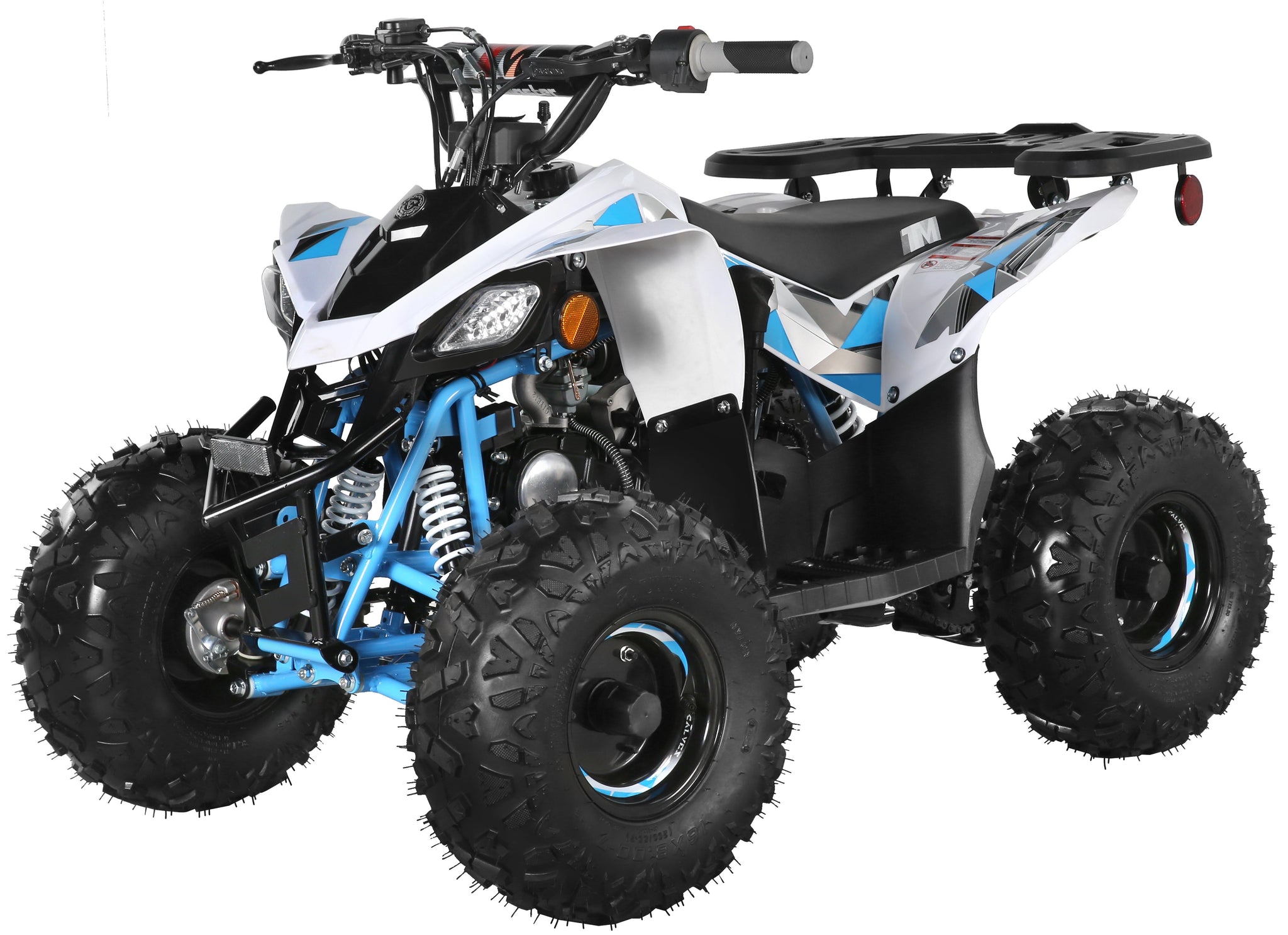

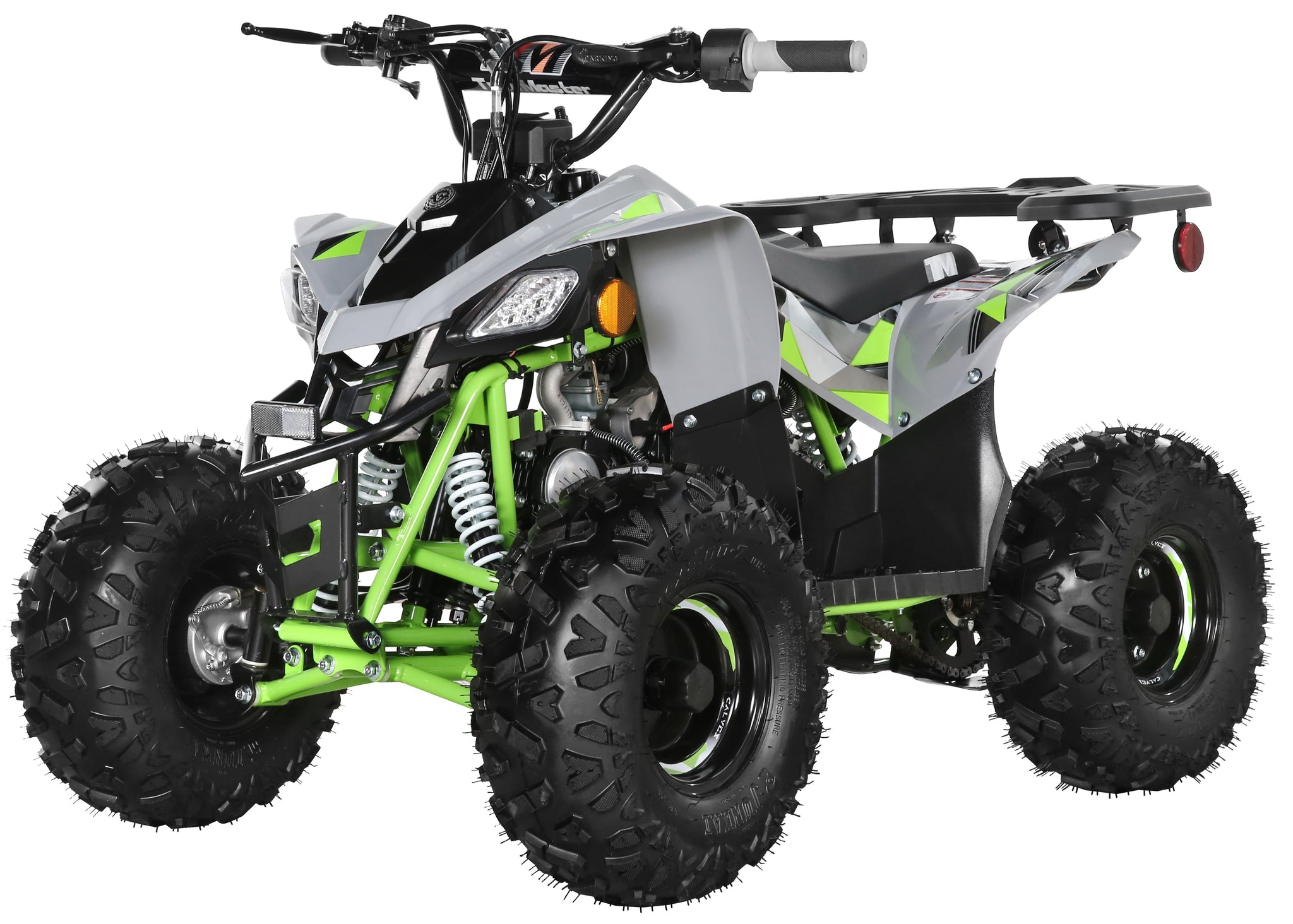

TrailMaster R125 125cc Sport ATV, Automatic with Reverse, 7-inch Wheels, Ages 9-12
No review
Price
$1,549.00
$1,199.00
Selected Size
Green
Availability
Currently Unavailable
This item is not available to order right now
customers are viewing this product
Discover the exceptional quality and meticulous design of the R125Mid-Size 125cc Utility ATV, perfect for children. Boasting all the impressive features of expensive name brand ATVs, this R125U model includes front and rear hydraulic disc brakes, a full suspension, a powerful 125cc, 4-stroke engine with CDI ignition and electric start, as well as a rear rack and front and rear lighting. With an easy access foot shifter, the automatic transmission allows for smooth maneuvering between forward, neutral, and reverse. Complete with a tough chain drive and aggressive all-terrain tires, this sporty kids ATV is a must-have.
Specifications
| Feature | Specification |
|---|---|
| Engine Info | |
| Engine Type | 125cc, 4-stroke, air-cooled, single cylinder |
| Displacement | 120 cc |
| Max Horsepower | 5.3 kW @ 8000 rpm |
| Bore x Stroke | 52.4 x 55.5 mm |
| Max Speed | 29 mph |
| Ignition | CDI |
| Starting System | Electric start |
| Engine Oil | SAE 15W/40 |
| Battery | 12V, 5Ah |
| Chassis | |
| Transmission | Automatic with Reverse |
| Final Drive | Chain |
| Driving Wheel | Rear wheel drive |
| Front Suspension | Double A-arm |
| Rear Suspension | Solid axle |
| Brakes | Front: Drum brake / Rear: Disc brake |
| Tires (Front/Rear) | 16 x 8 - 7 / 16 x 8 - 7 |
| Fuel Capacity | 2.06 L |
| Net Weight | 160.5 lbs |
| Gross Weight | 226.2 lbs |
| Max Load | 143 lbs |
| Dimensions | |
| Wheelbase | 33.46 inches |
| Overall Size (L x W x H) | 53 x 31 x 35 inches |
| Seat Height | 23.62 inches |
| Minimum Ground Clearance | 3.35 inches |
| Packing Size | 54 x 32 x 30 inches |
