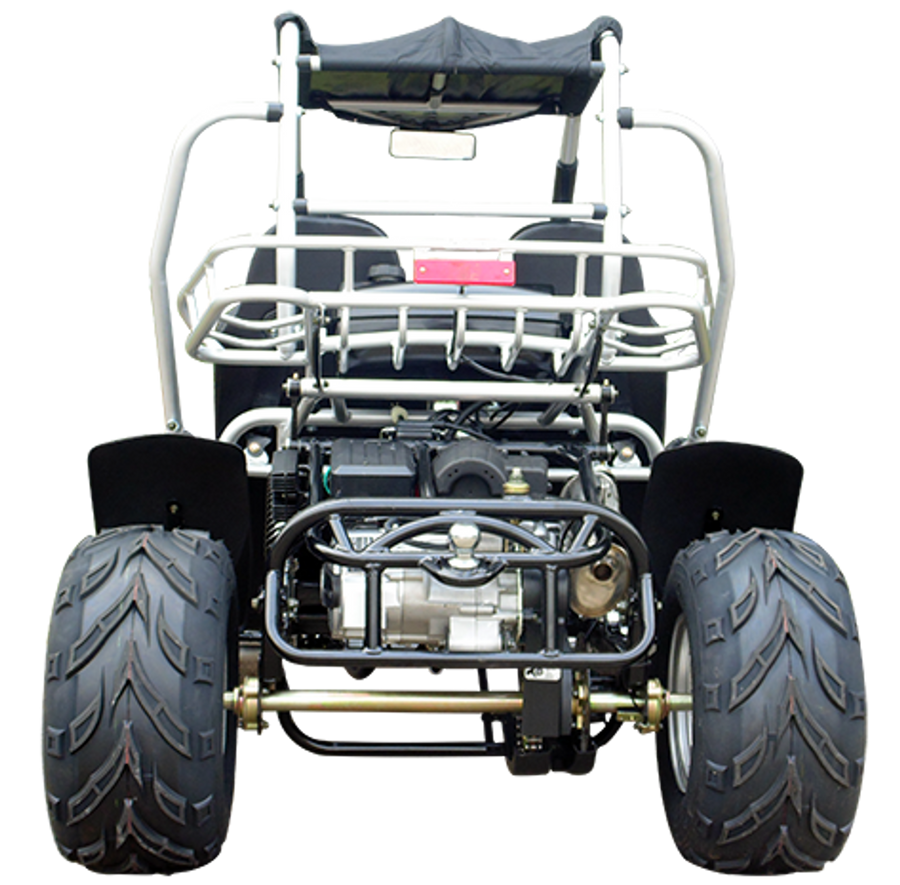

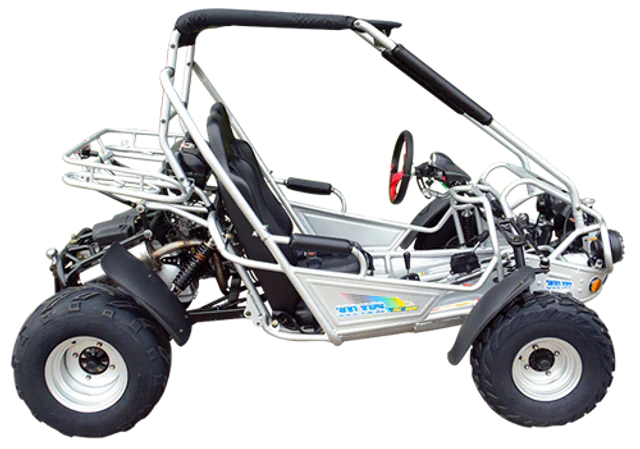

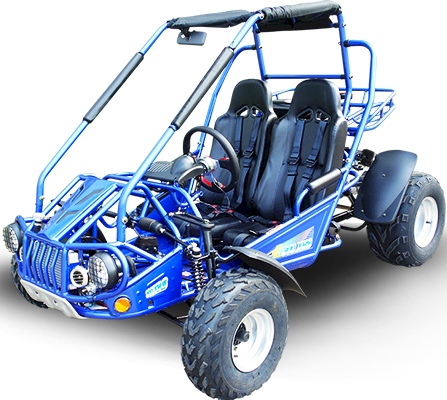

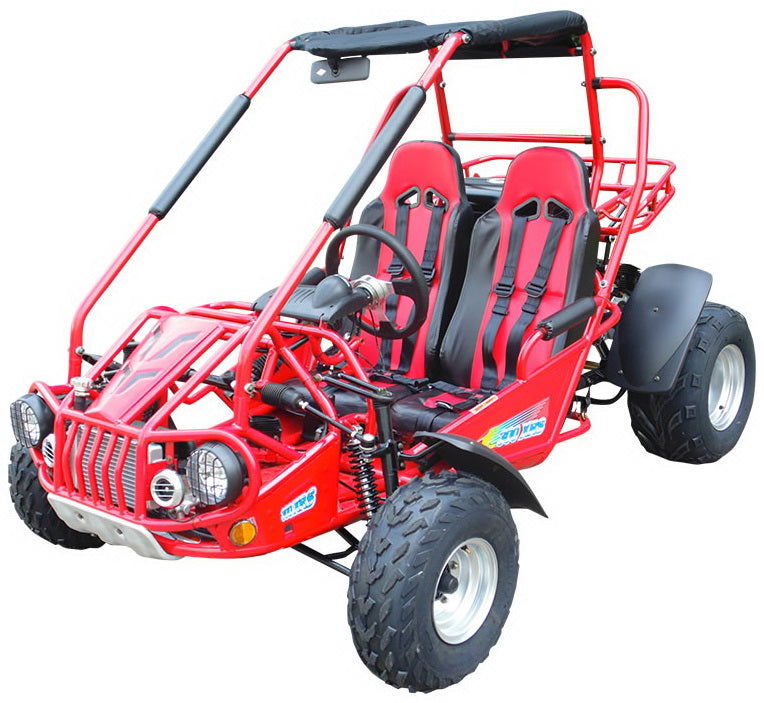

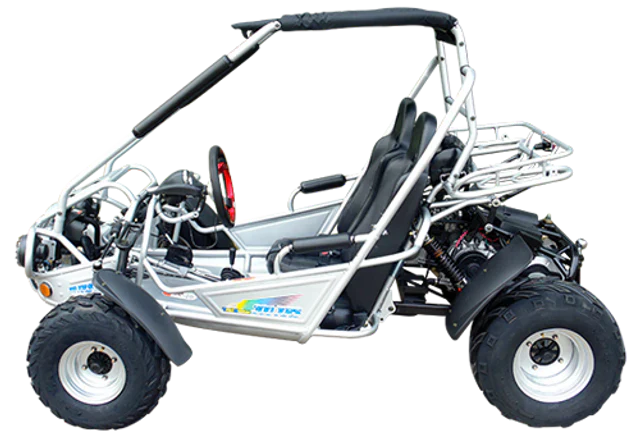

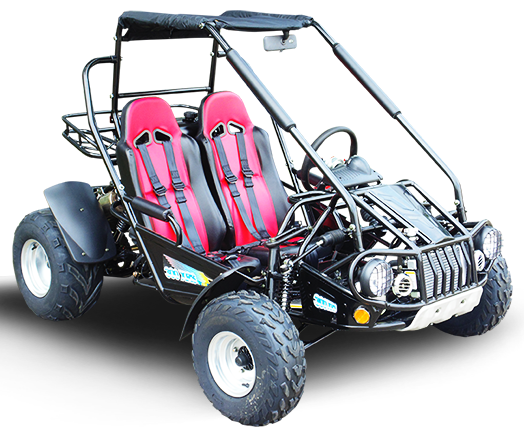

TrailMaster 300E XRS (EFI) Dune Buggy Go Kart, Liquid Cooled, Chain Drive
The TrailMaster 300XRSE Go Kart is a powerful and reliable FUEL INJECTED buggy with a 17.4 HP, 275.6cc liquid cooled engine and automatic CVT chain drive with reverse. It has a digital speedometer/odometer, stainless steel muffler, rack and pinion steering and adjustable steering wheel, and a rear-view mirror for a safe drive. Perfect for sunny days, it also comes with a bikini sunshade top.
This 300E XRS Dune Buggy is perfect for off-road exploration - equipped with adjustable bucket seats and 5-point safety harnesses for secure rides, as well as adjustable 20X7-8 and 22X10-10 steel wheels with heavy-duty rear swing arm for a smooth ride on any terrain. F&R Hydraulic disc brakes and utility rack provide great control and convenience.
Key Features
- 17.4 HP 300cc CVT Auto w/ reverse /Liquid cool

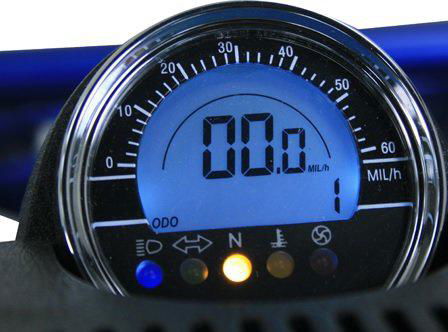

- Digital speedometer/odometer

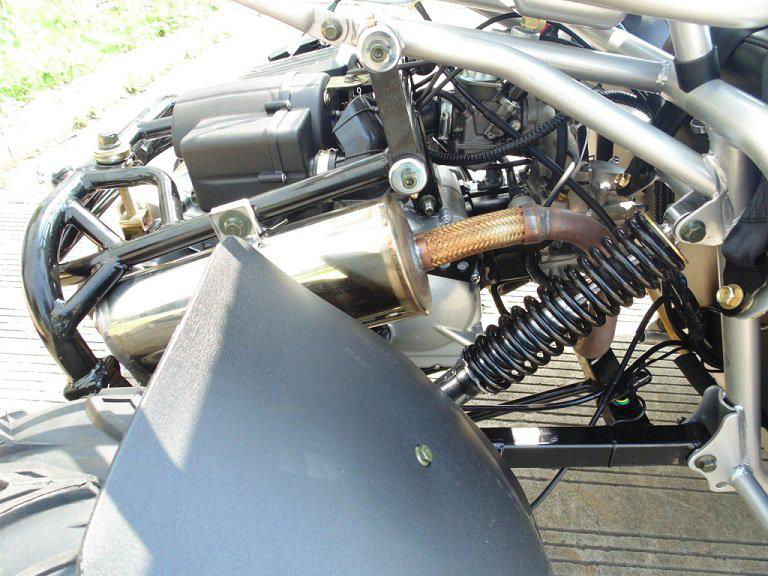

- Stainless steel performance muffler

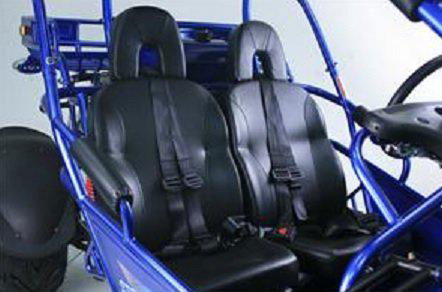

- Five-point safety seatbelt

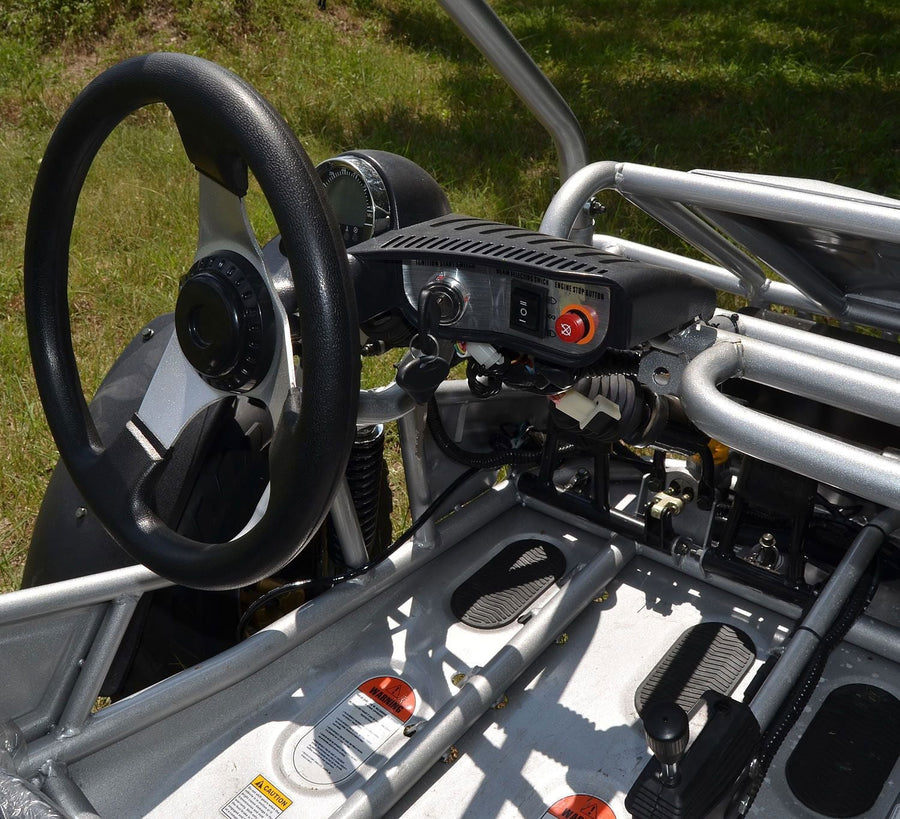

- Adjustable steering wheel
- Electric start with kill switch
- 20X7-8 front / 22X10-10 rear, steel wheel
- Individual sporting seats
- High-low beam head light
- Bikini sunshade top
- Adjustable driver seat: 41” to 46”

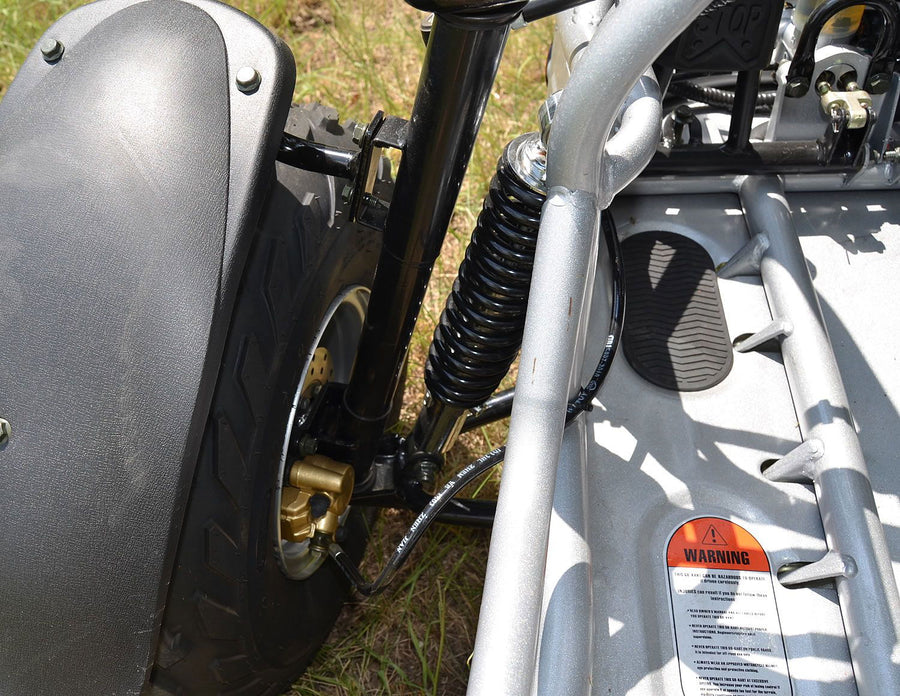

- Adjustable F&R shock absorber
- Central rear-view mirror
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- 4-point rear swing arm
- Parking brake / 4-wheel fenders
- Trailer hitch / utility rack
- Large gas tank
Specifications
Engine Information
- EPA and CARB certificated
- Engine type: 4-stroke, single cylinder, water cooled / 50mph
- Displacement: 275.6cc
- Electronic Fuel Injection
- Max HP: 17.4hp/6500rpm
- Max torque: 16 lb ft/5000rpm
- Bore x stroke: 2.85x2.63 inches
- Climbing ability: 18 degrees
- Ignition: C.D.I
- Starting system: Electric
- Battery: 12V 10Ah
- Carburetor brand: TK (Vacuum film)
- Engine oil: SAE 15W-40
General Information
- Clutch: Automatic CTV with reverse
- Suspension F / R: Double A-arm /Double Oil Damped Shock
- Brakes, F / R: hydraulic brakes, Disc
- Tires, F / R: 20x7-8 / 22x10-10
- Fuel capacity: 2.25 gal
- Weight, G.W. / NW: 705 lbs / 617 lbs
- Max load: 500 lbs
Dimensions
- Wheelbase: 66.1 inches
- OA L x W x H: 90.5x53.1x57.1 inches
- Height to seat: 13.8 inches
- Min ground clearance: 6.7 inches
