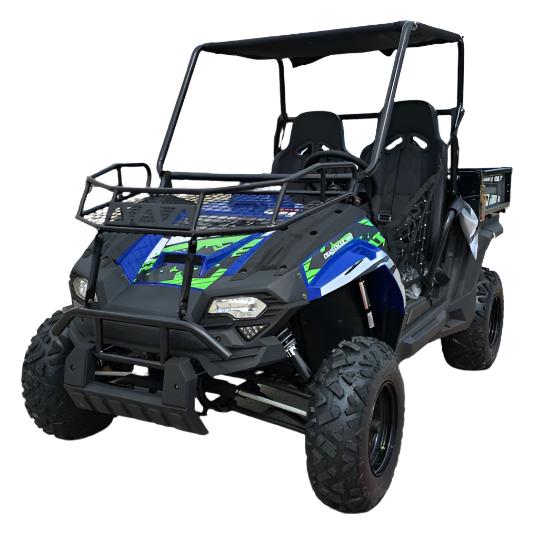

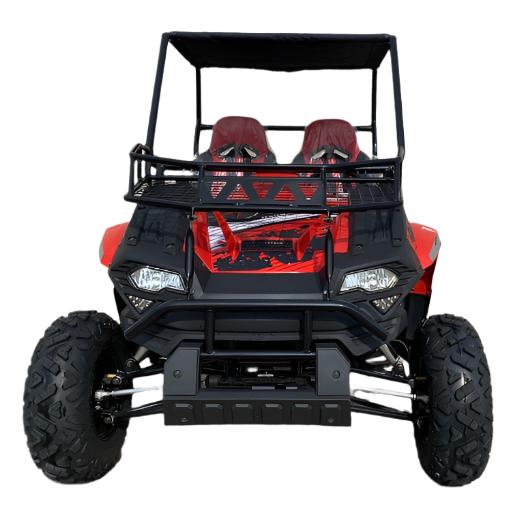

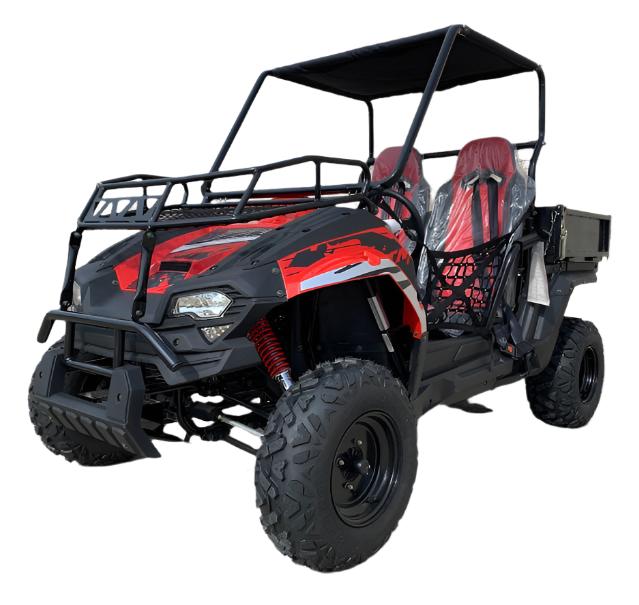

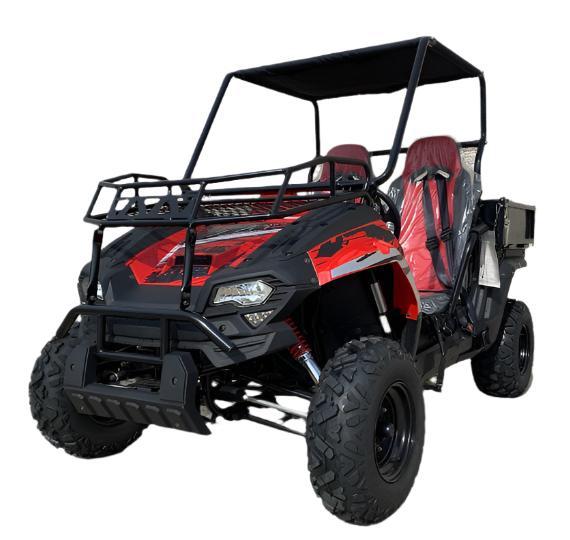

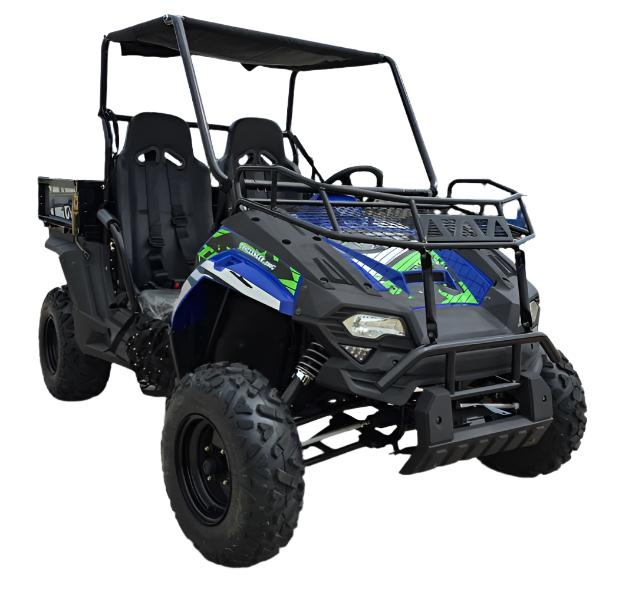

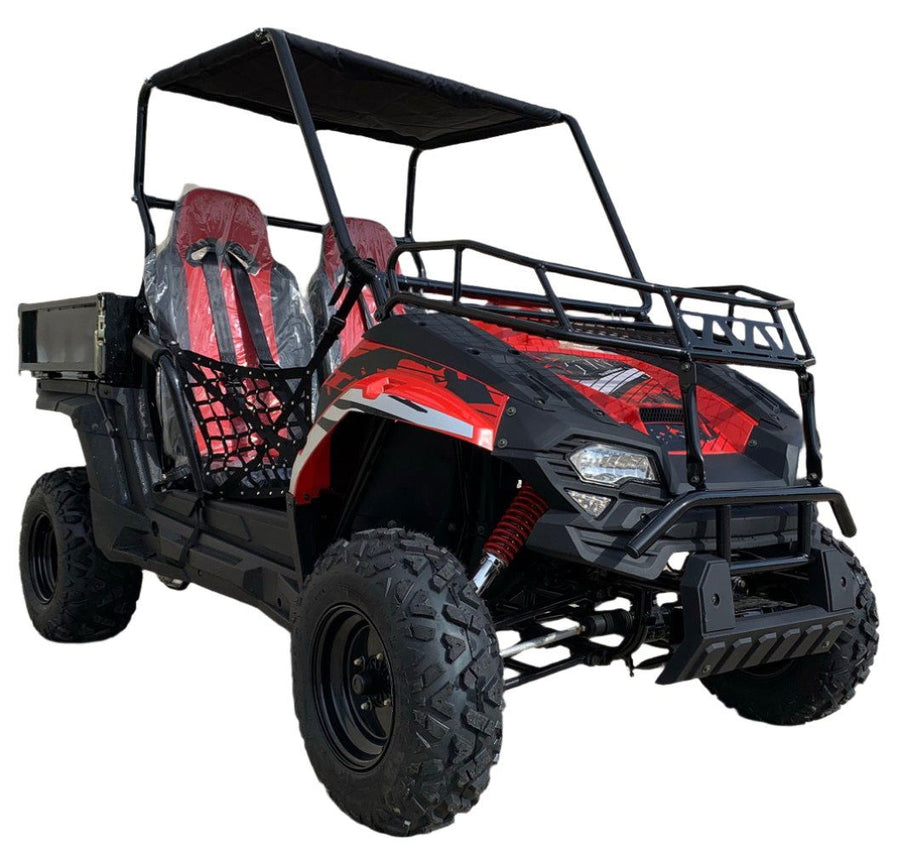

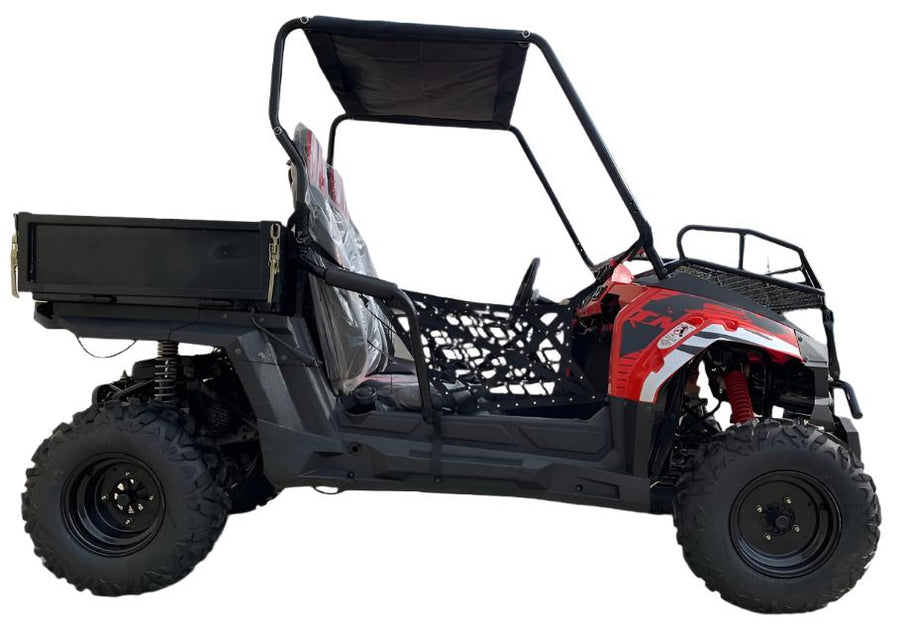

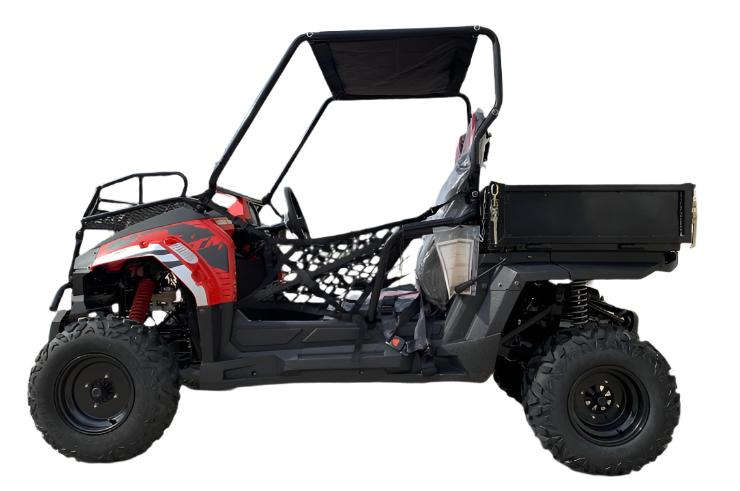

TrailMaster Challenger 200U UTV Side-by-Side, Front Cargo Rack, Rear Dump Bed

The TrailMaster Challenger 200U UTV Side-by-Side boasts a powerful 169cc GY6 engine and a spacious 27.5”X45.3”X93.5” dump bed with a maximum load capacity of 165lbs. It also features a 32-degree flip down function for added convenience. This impressive vehicle is equipped with a new gear ratio that provides superior low-end torque, as well as front and rear suspension systems that effortlessly navigate rough terrains. Additionally, the Challenger comes with a variety of standard features, such as a digital speedometer/odometer, horn, adjustable steering wheel, 12v outlet, turn signals, and front and rear disc brakes. Optional add-ons include a winch, windshield, side rear view mirror, LED light bar, and top cargo rack.

Features

• Fully automatic with reverse, high performance 11.1 HP 168.9cc GY6 engine with internal F-N-R
• New gear ratio set up offers maximum low-end torque

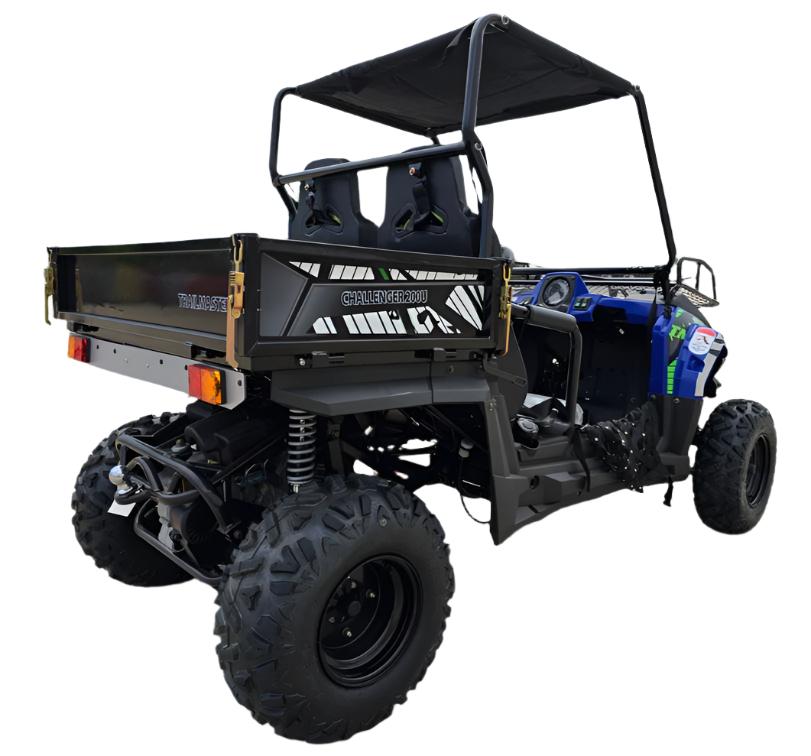

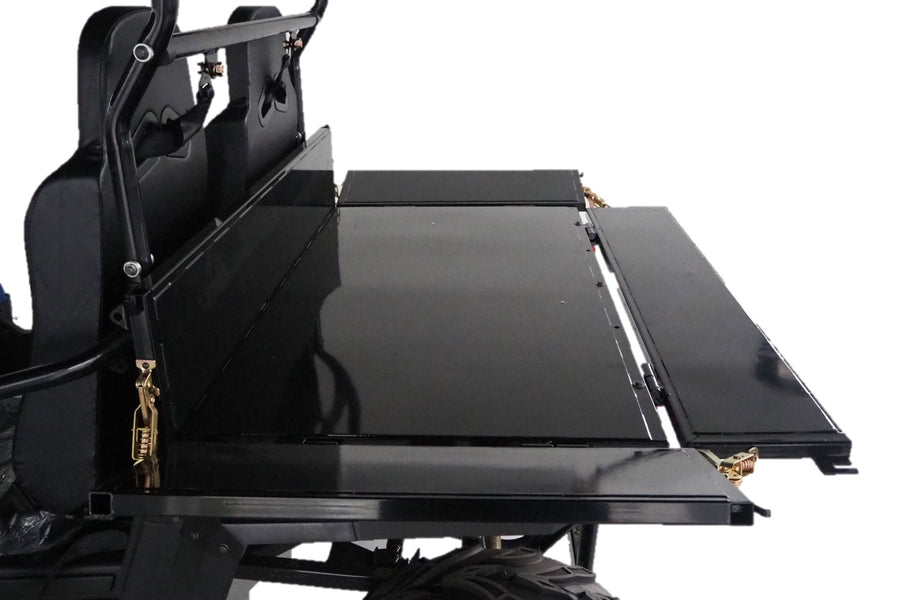

• Large 27.5”X45.3”X93.5” dump bed with max load 165lbs, flips down 32 degrees.

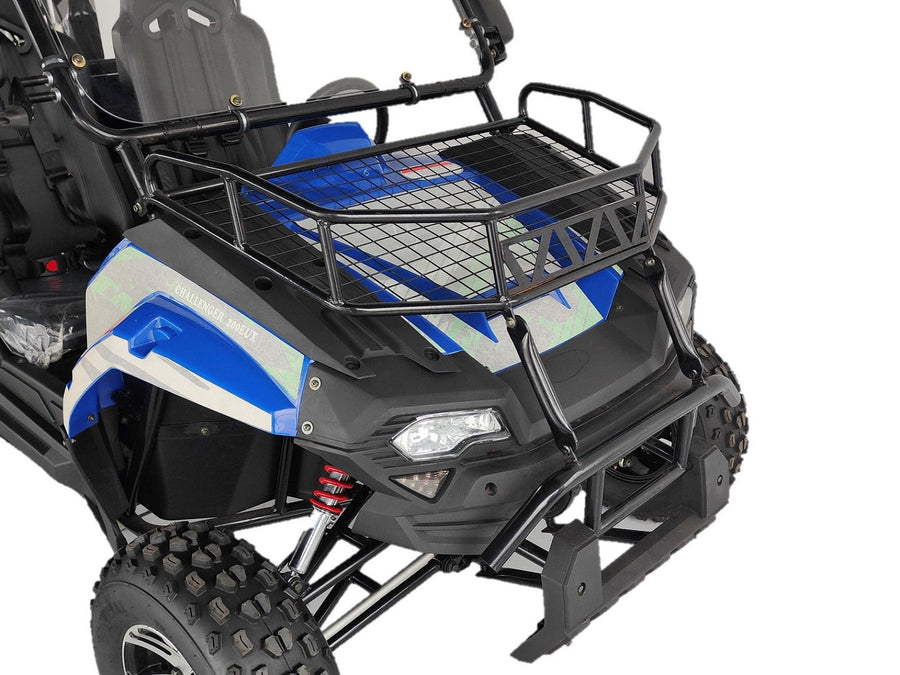

• Large front cargo rack
• Front steel and plastic bumper
• Large top cargo rack

• Windshield

• Side rearview mirrors
• Exciting graphics
• Large tires with 22X7-10 in the front and 22X10-10 in the back
• Speedometer and odometer
• Bikini sunshade top
• Turn signals
• LED headlights
• Horn
• Trailer Hitch
• 12V outlet
• Top speed 38M/H
• Adjustable steering wheel
• Age group: 16 & older
• Large driving cabin fits person up to 6’2
• Electric start with kill switch
• Four-point safety seatbelt
• Individual sporting seats
• Adjustable driver seat: pedal to seat back adjustable from 28.5” to 34.5”
• Adjustable heavy-duty front and rear shock absorber
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• Parking brake
• Optional winch

Specifications

Engine

• EPA certificated
• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 168.9cc
• Max HP: 11.1hp/7500 RPM
• Max torque: 11N.m@5000 RPM
• Bore x stroke: 2.4x2.28 inches
• Max speed: 33 mph
• Climbing ability: 20-25 degrees
• Ignition: CDI
• Starting system: Electric
• Battery: 12V 10Ah
• Engine oil: SAE 15W-40

General Information

• Clutch: Automatic CTV with reverse
• Driveline / Driving wheel: Chain / Dual wheel drive
• Suspension F / R: Independent Dual A-arm / Double Oil Damped Shock
• Brakes, F / R: Both hydraulic brakes, Disc
• Tires, F / R: 22x7-10 / 22x10-10
• Fuel capacity: 2 gal
• Weight, G.W. / N.W.: 840 / 705 lbs
• Max load: 500 lbs
• Dump bed max load: 165 lbs

Size Information

• Wheelbase: 72 inches
• OA L x W x H: 100x53x63 inches
• Packing size:91X54X35 inches
• Height to seat: 23.6 inches
• Min ground clearance: 6.3 inches
• Dump bed dimension: 27.5X45.3X93.5
