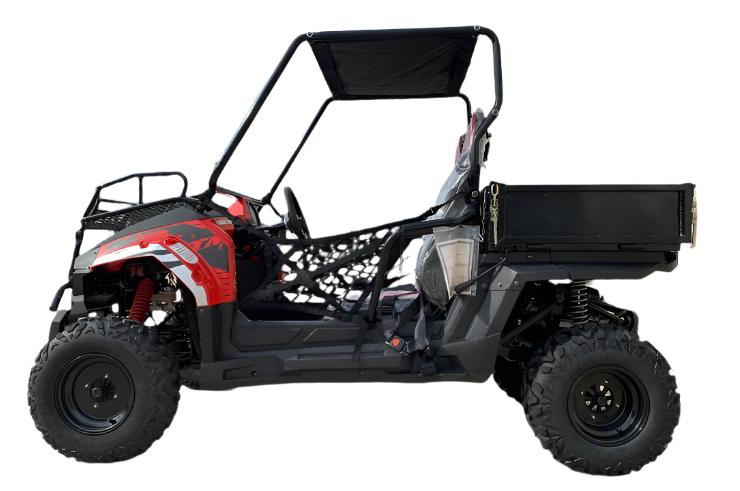

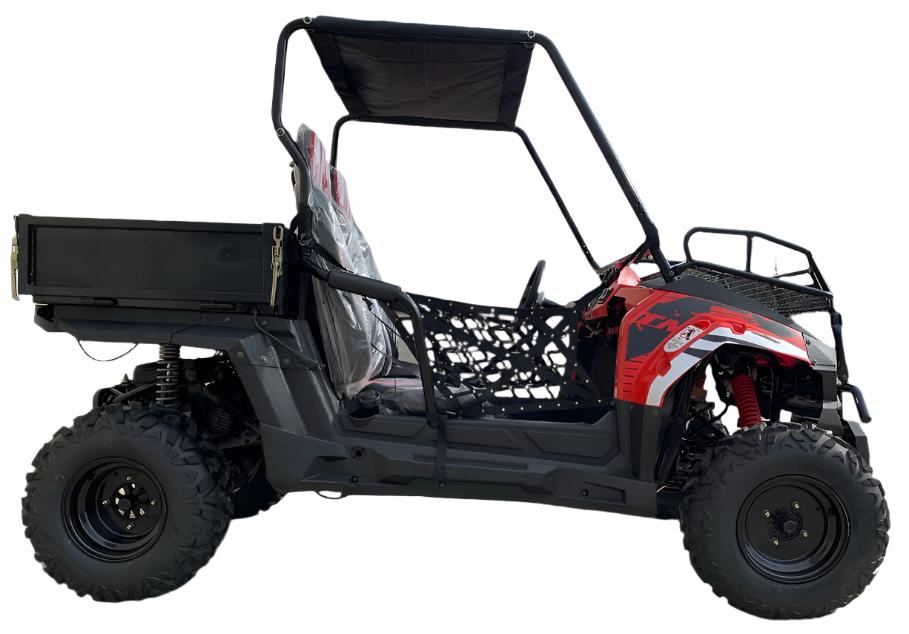

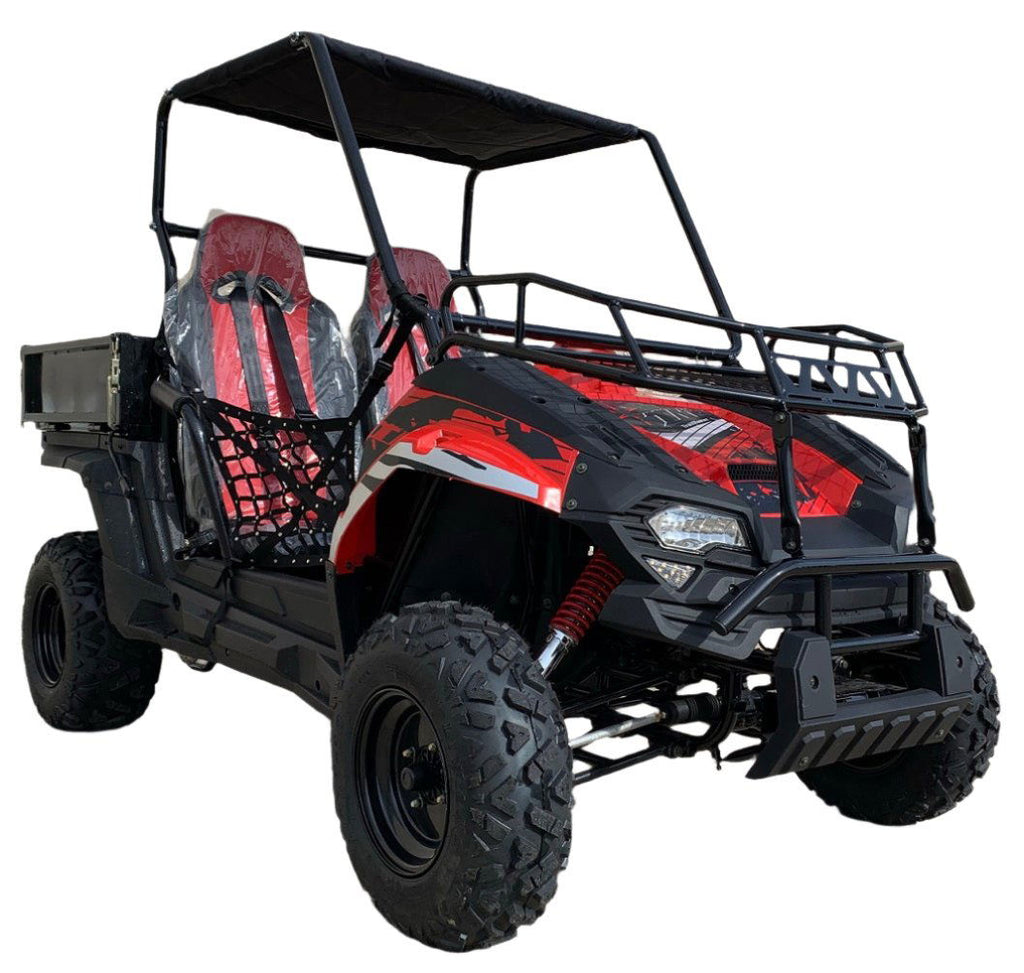

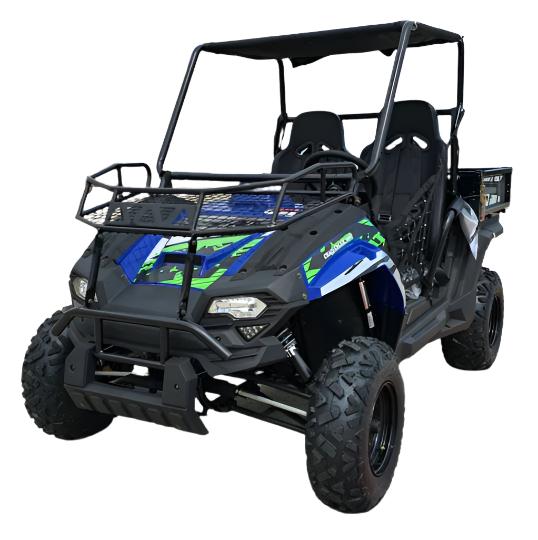

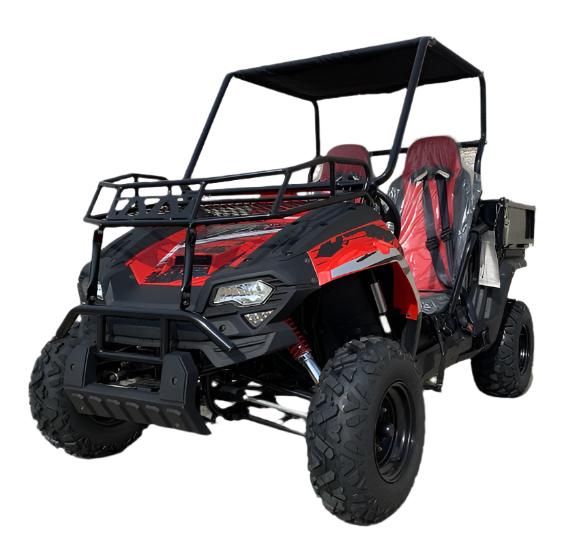

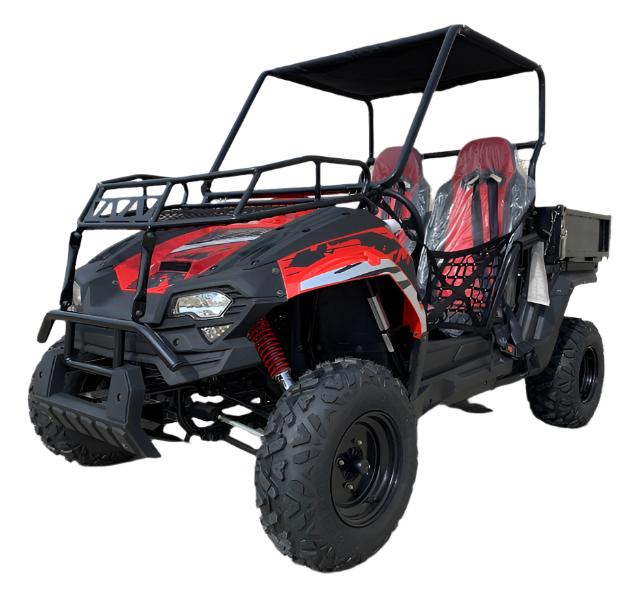

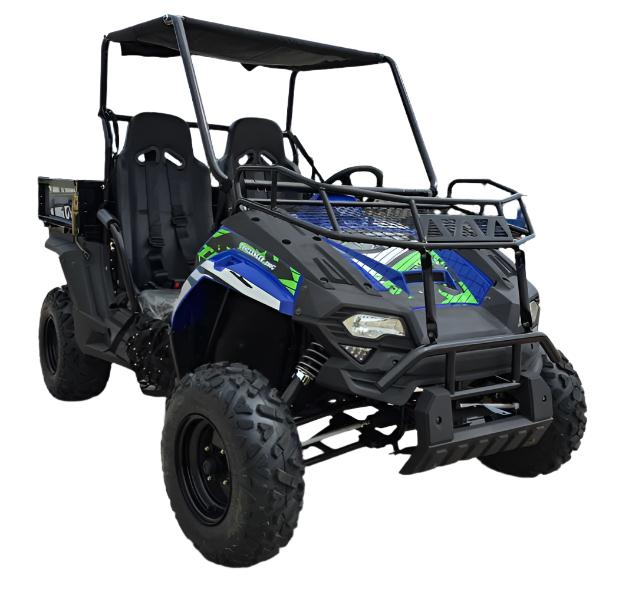

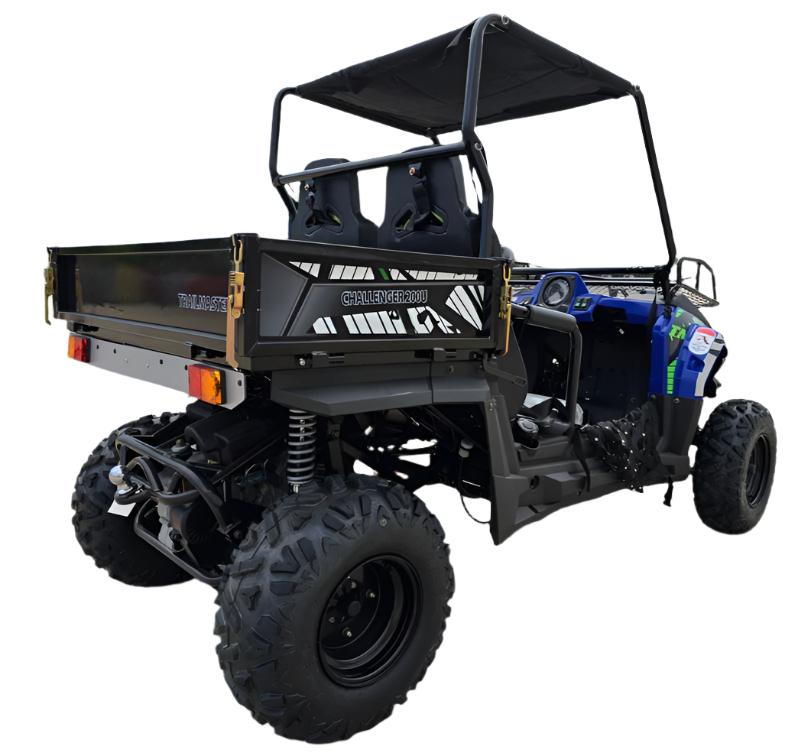

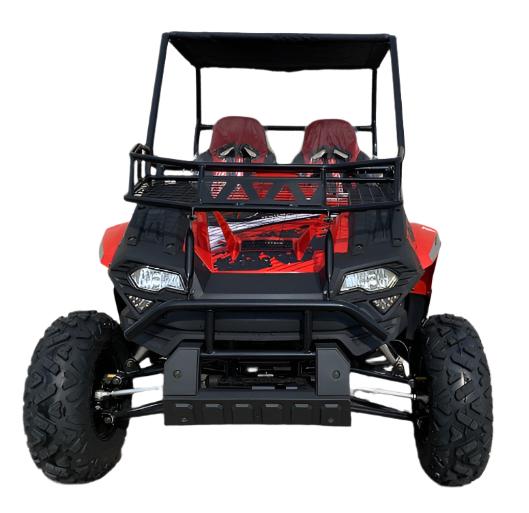

TrailMaster Challenger 200U UTV Side-by-Side, Front Cargo Rack, Rear Dump Bed
The TrailMaster Challenger 200U UTV Side-by-Side boasts a powerful 169cc GY6 engine and a spacious 27.5”X45.3”X93.5” dump bed with a maximum load capacity of 165lbs. It also features a 32-degree flip down function for added convenience. This impressive vehicle is equipped with a new gear ratio that provides superior low-end torque, as well as front and rear suspension systems that effortlessly navigate rough terrains. Additionally, the Challenger comes with a variety of standard features, such as a digital speedometer/odometer, horn, adjustable steering wheel, 12v outlet, turn signals, and front and rear disc brakes. Optional add-ons include a winch, windshield, side rear view mirror, LED light bar, and top cargo rack.
Features
- Fully automatic with reverse, high performance 11.1 HP 168.9cc GY6 engine with internal F-N-R
- New gear ratio set up offers maximum low-end torque

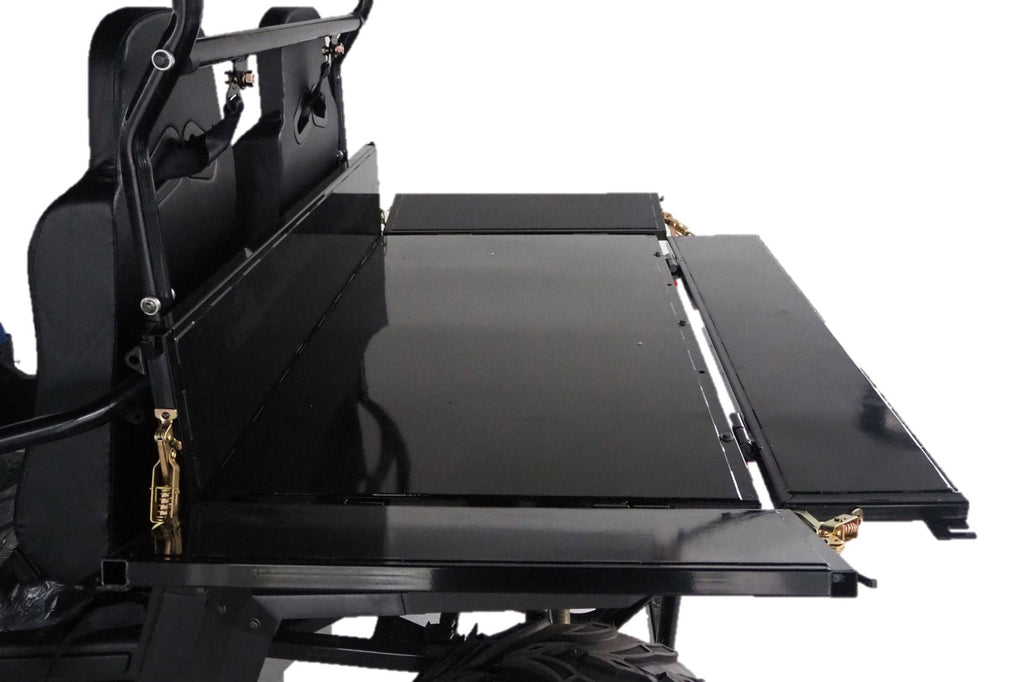

- Large 27.5”X45.3”X93.5” dump bed with max load 165lbs, flips down 32 degrees.

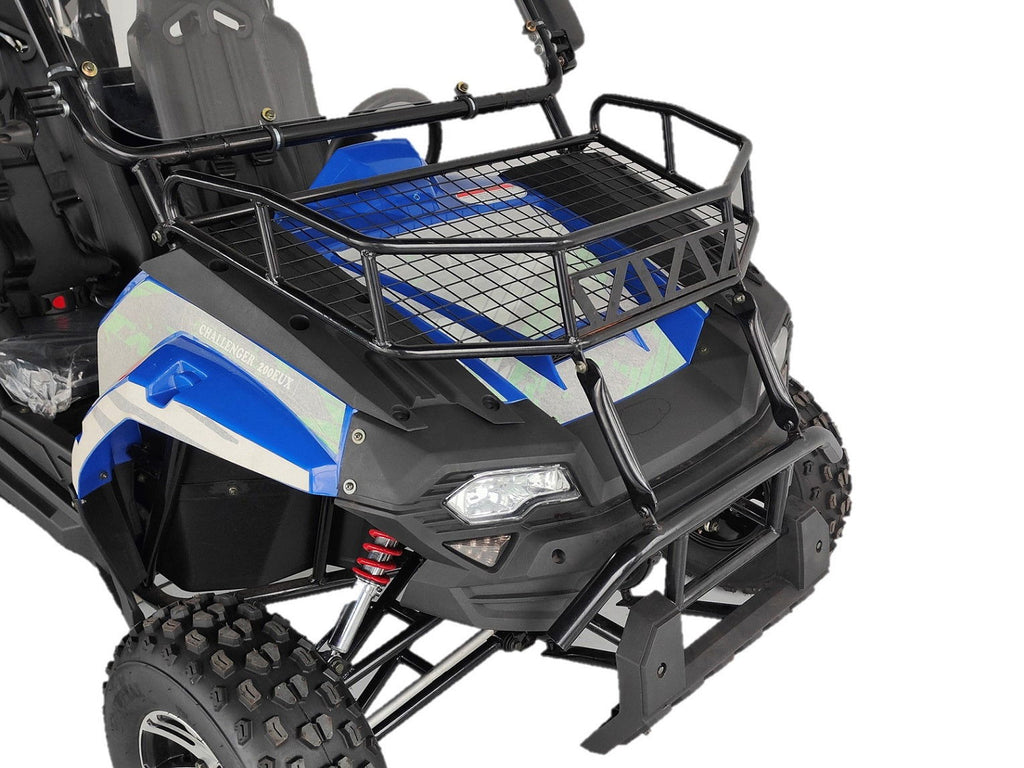

- Large front cargo rack
- Front steel and plastic bumper
- Large top cargo rack
- Windshield
- Side rearview mirrors
- Exciting graphics
- Large tires with 22X7-10 in the front and 22X10-10 in the back
- Speedometer and odometer
- Bikini sunshade top
- Turn signals
- LED headlights
- Horn
- Trailer Hitch
- 12V outlet
- Top speed 38M/H
- Adjustable steering wheel
- Age group: 16 & older
- Large driving cabin fits person up to 6’2
- Electric start with kill switch
- Four-point safety seatbelt
- Individual sporting seats
- Adjustable driver seat: pedal to seat back adjustable from 28.5” to 34.5”
- Adjustable heavy-duty front and rear shock absorber
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- Parking brake
- Optional winch
Specifications
Engine
- EPA certificated
- Engine type: 4-stroke, single cylinder, air cooled
- Displacement: 168.9cc
- Max HP: 11.1hp/7500 RPM
- Max torque: 11N.m@5000 RPM
- Bore x stroke: 2.4x2.28 inches
- Max speed: 33 mph
- Climbing ability: 20-25 degrees
- Ignition: CDI
- Starting system: Electric
- Battery: 12V 10Ah
- Engine oil: SAE 15W-40
General Information
- Clutch: Automatic CTV with reverse
- Driveline / Driving wheel: Chain / Dual wheel drive
- Suspension F / R: Independent Dual A-arm / Double Oil Damped Shock
- Brakes, F / R: Both hydraulic brakes, Disc
- Tires, F / R: 22x7-10 / 22x10-10
- Fuel capacity: 2 gal
- Weight, G.W. / N.W.: 840 / 705 lbs
- Max load: 500 lbs
- Dump bed max load: 165 lbs
Size Information
- Wheelbase: 72 inches
- OA L x W x H: 100x53x63 inches
- Packing size:91X54X35 inches
- Height to seat: 23.6 inches
- Min ground clearance: 6.3 inches
- Dump bed dimension: 27.5X45.3X93.5
