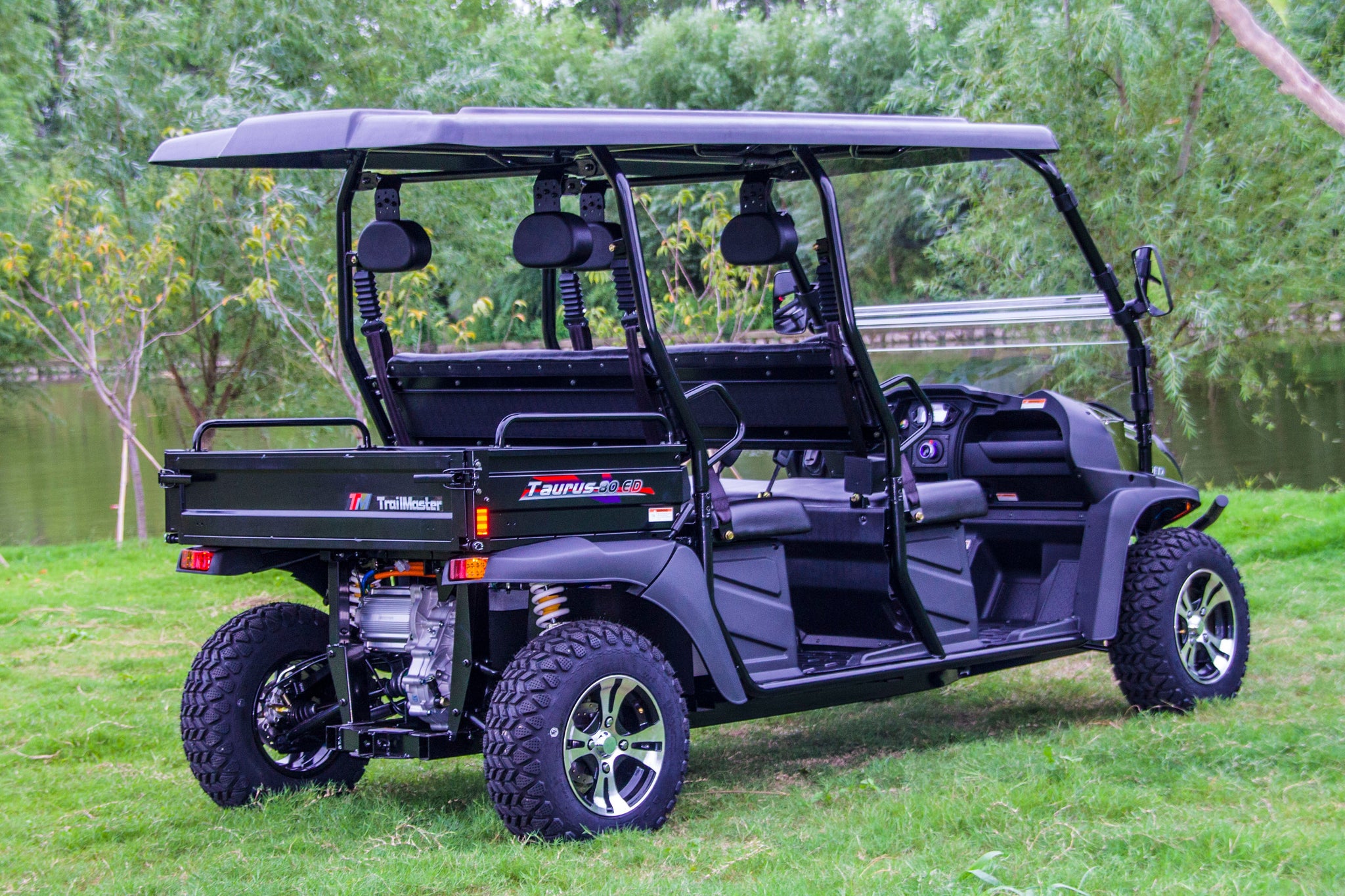

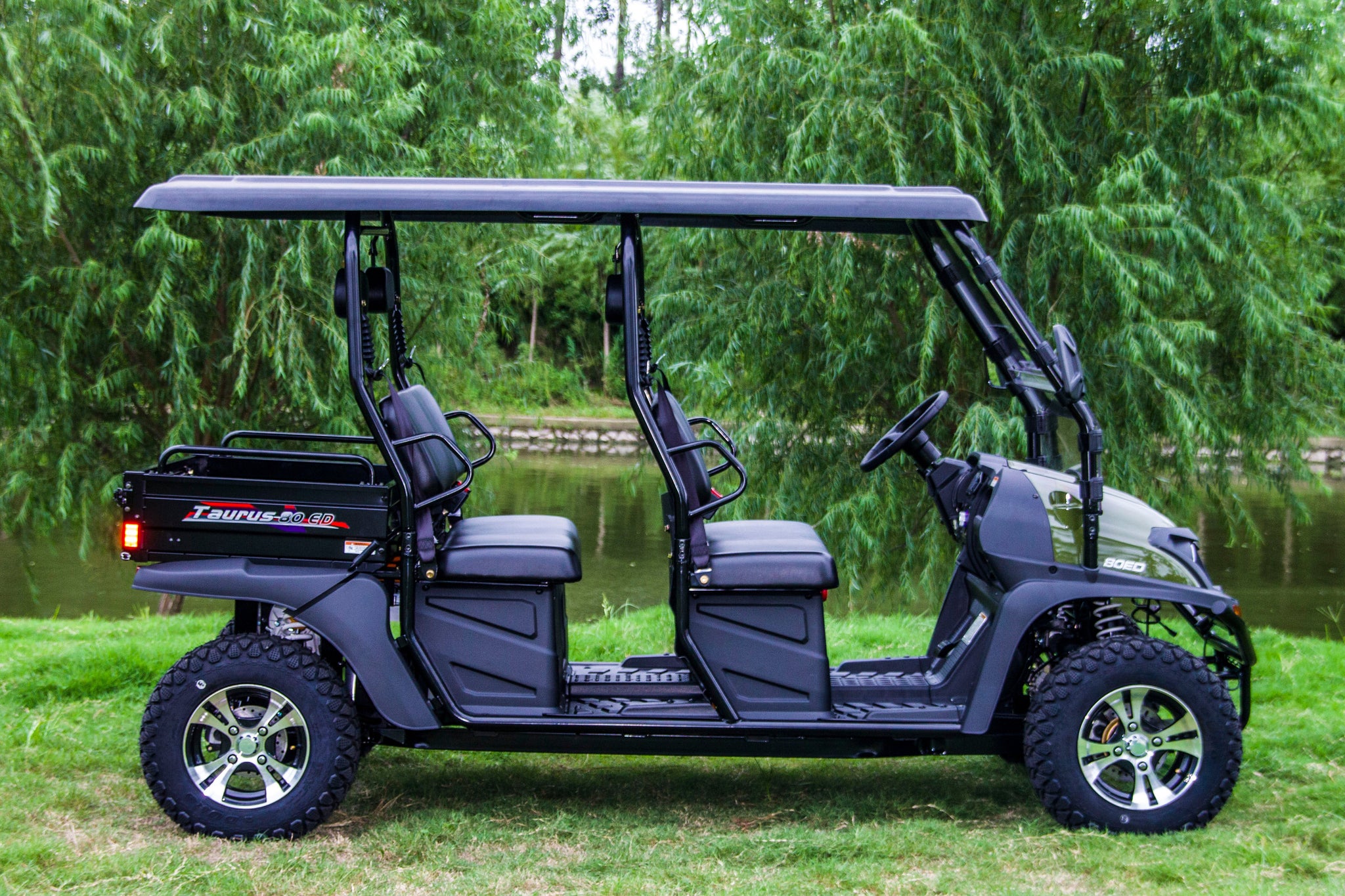

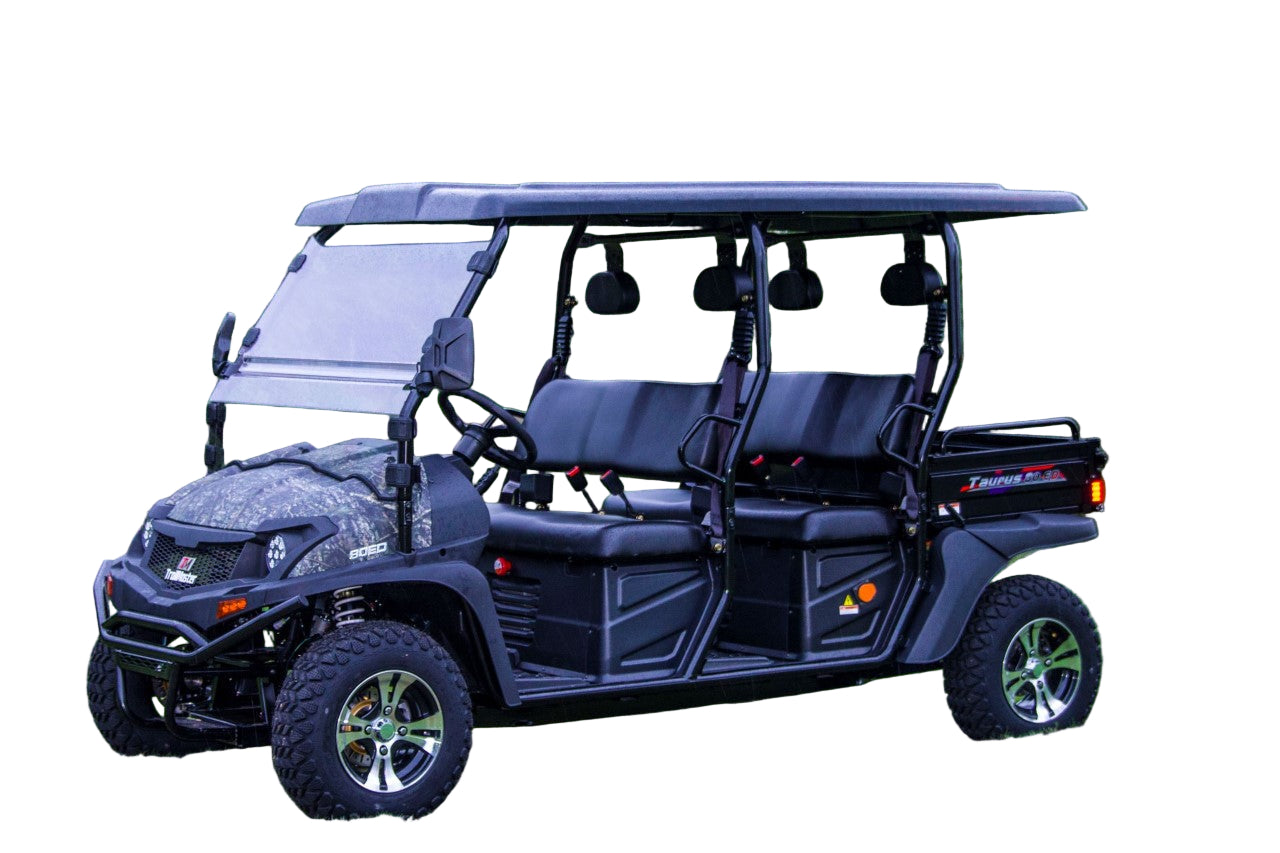

Trailmaster Taurus 80ED — 72V Electric 4x4 UTV / Golf Cart Hybrid with 60-Mile Range, Coil-Over Suspension & DOT Package

The Trailmaster Taurus 80ED is a revolutionary 72-volt electric UTV and golf cart hybrid that blends off-road performance with modern electric technology. Built on a rugged UTV undercarriage but styled like a premium golf cart, the Taurus 80ED is ready for everything from cruising the neighborhood to exploring trails or hauling supplies around the property.

With its 7.5 kW PMSM electric motor, coil-over suspension, and ventilated hydraulic disc brakes, this all-electric workhorse delivers smooth, quiet torque and agile control. The 72V / 135Ah system provides up to 60 miles of range per charge, and with 10+ inches of ground clearance, it’s as capable as it is comfortable.

Trailmaster Taurus 80ED Key Features

• 72V DC Electric System with PMSM 7.5 kW motor and 95 N·m of torque.
• Up to 60 Miles per Charge with 135Ah lithium battery capacity.
• High Ground Clearance: 10.2 inches for light off-road and uneven terrain.
• Coil-Over Shocks & Independent Suspension front and rear for superior ride comfort.
• All Hydraulic Disc Brakes for confident stopping power.

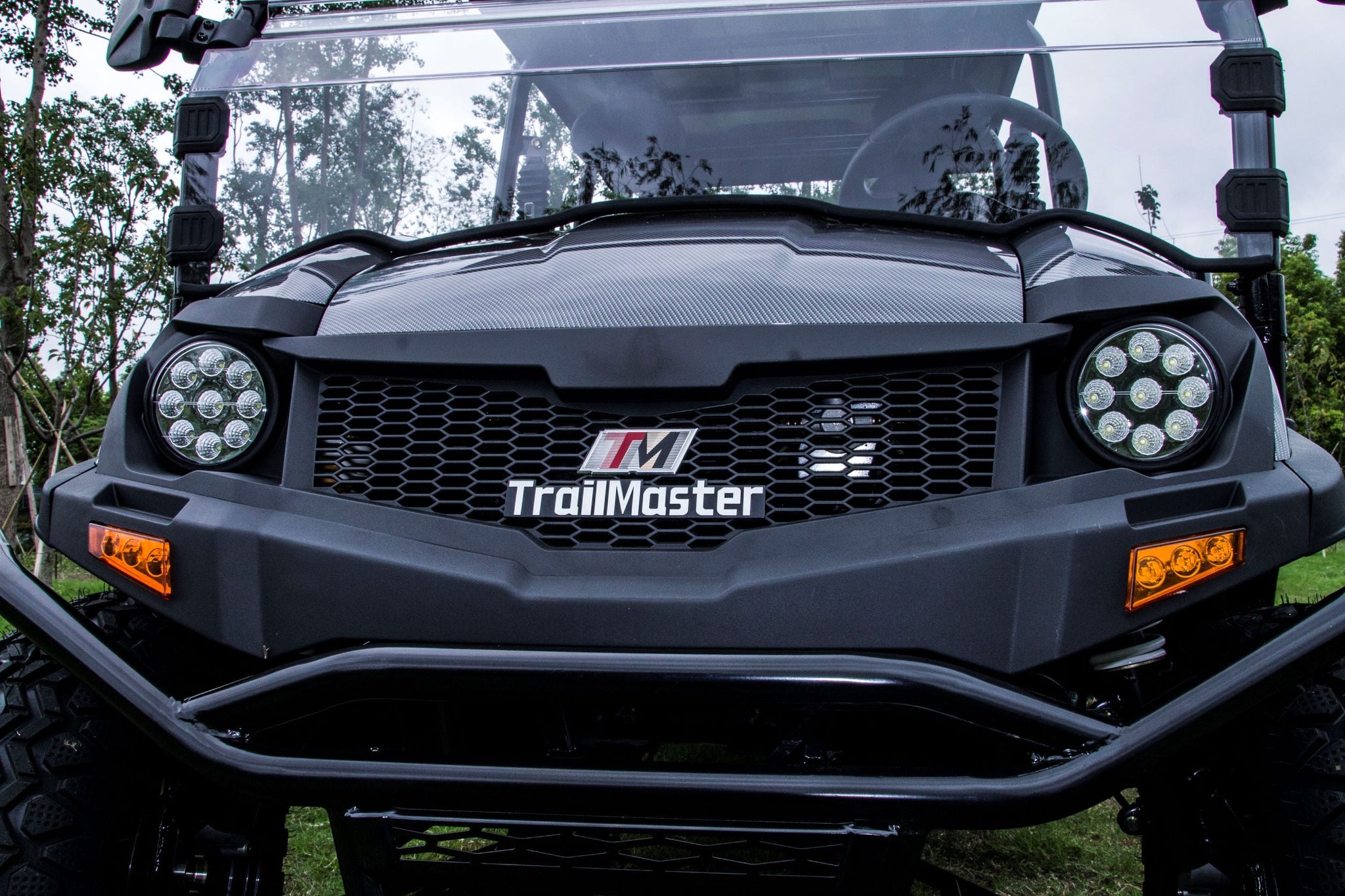

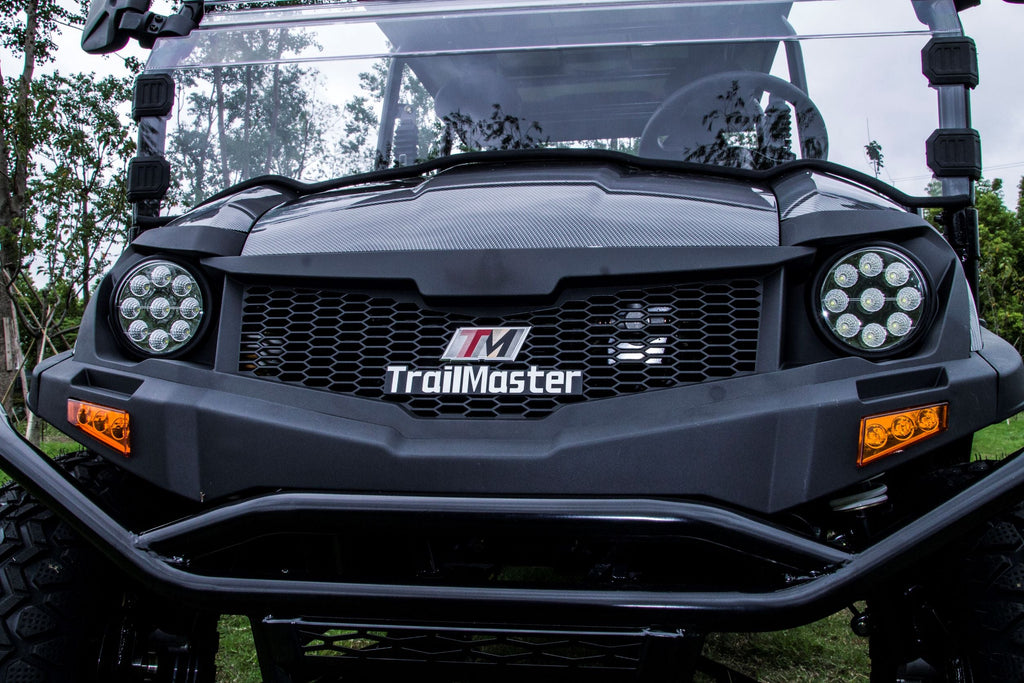

• Full DOT Light Package: headlights, brake lights, turn signals, and horn.
• Top Speed: 33 mph (55 km/h).
• Aluminum Custom Wheels with dual-purpose tires for turf and trail use.
• Shaft Drive for smooth, efficient power transfer.
• Ships Fully Assembled from Trailmaster — ready to drive off the carrier.

Optional Add-Ons

• Two-piece windshield
• 24” LED light bar
• 2,500 lb winch
• Snow plow kit

Technical Specifications

• Motor Type: PMSM 7.5 kW (Permanent Magnet Synchronous Motor)
• Voltage / Capacity: 72V / 135Ah
• Range: Up to 60 miles (100 km)
• Top Speed: 33 mph (55 km/h)
• Torque: 95 N·m
• Charging Time: 8–10 hours (1.8 kW charger, 110–240V input)
• Ground Clearance: 10.2 inches
• Dimensions: 121.7” L × 58.3” W × 76.4” H
• Weight: 1,698 lbs
• Bed Capacity: 441 lbs (26.4” × 43.4” × 9.45”)
• Suspension: Front: Independent McPherson / Rear: Double A-Arm
• Brakes: Ventilated Hydraulic Disc (Front & Rear)
• Drive Mode: Shaft Drive with Steering Wheel Control
• Lighting: Full DOT package (headlights, turn signals, taillights, horn)

Note: Not CARB approved for California public roads; legal for private property and off-road use.

Why Choose Lee Motorsports?

Lee Motorsports is proud to offer the Trailmaster Taurus 80ED — one of the most advanced electric side-by-sides on the market. Each unit is shipped fully assembled and delivered nationwide with white-glove transport. Enjoy zero emissions, low maintenance, and high fun factor — all backed by Trailmaster’s trusted quality.

---
