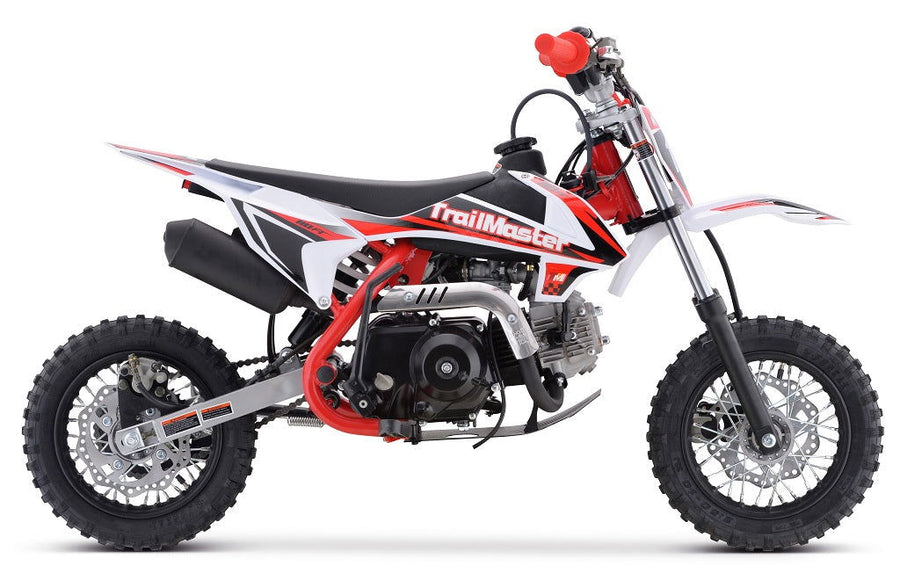

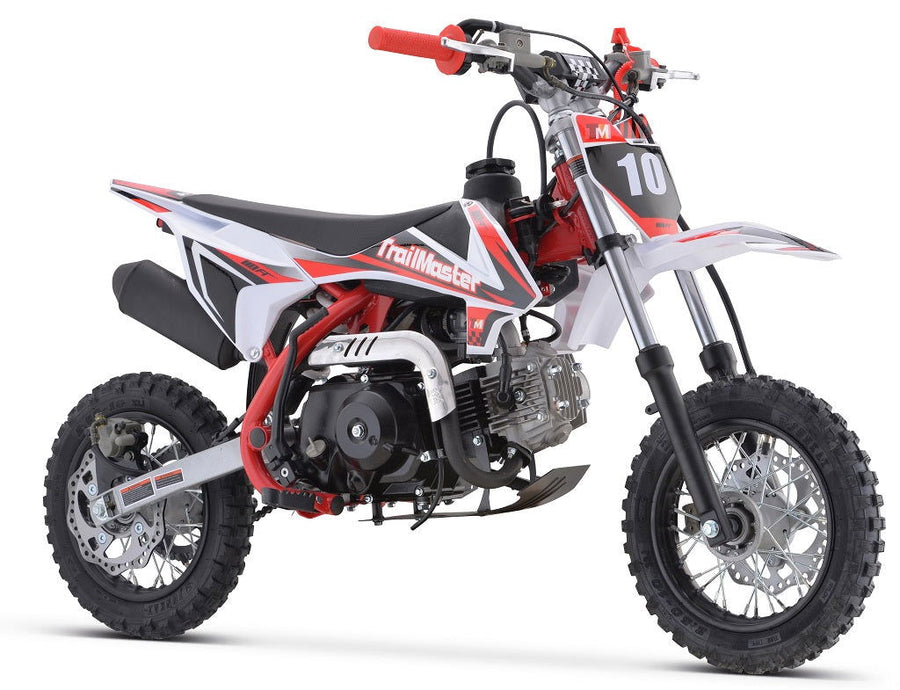

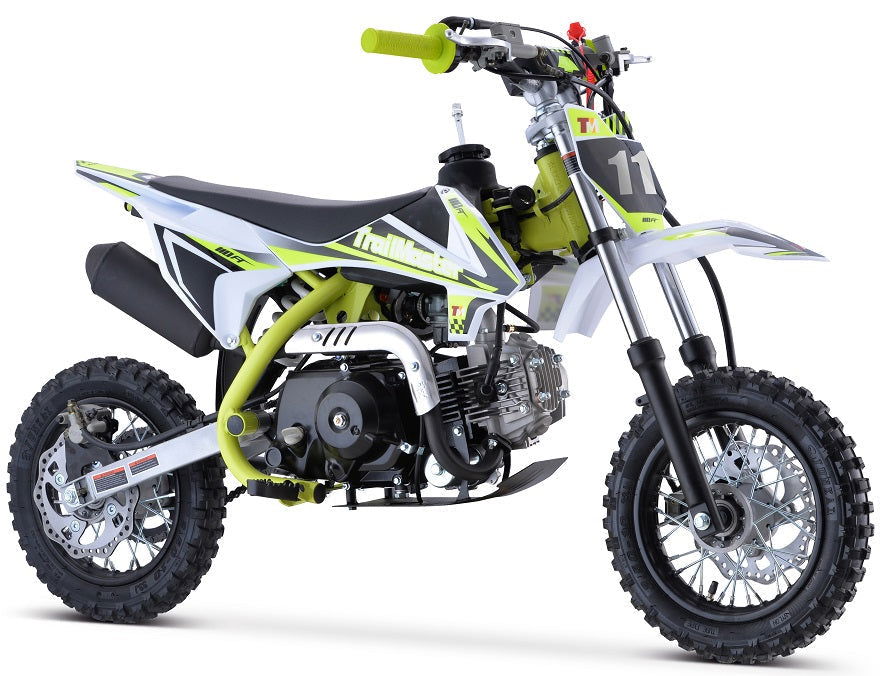

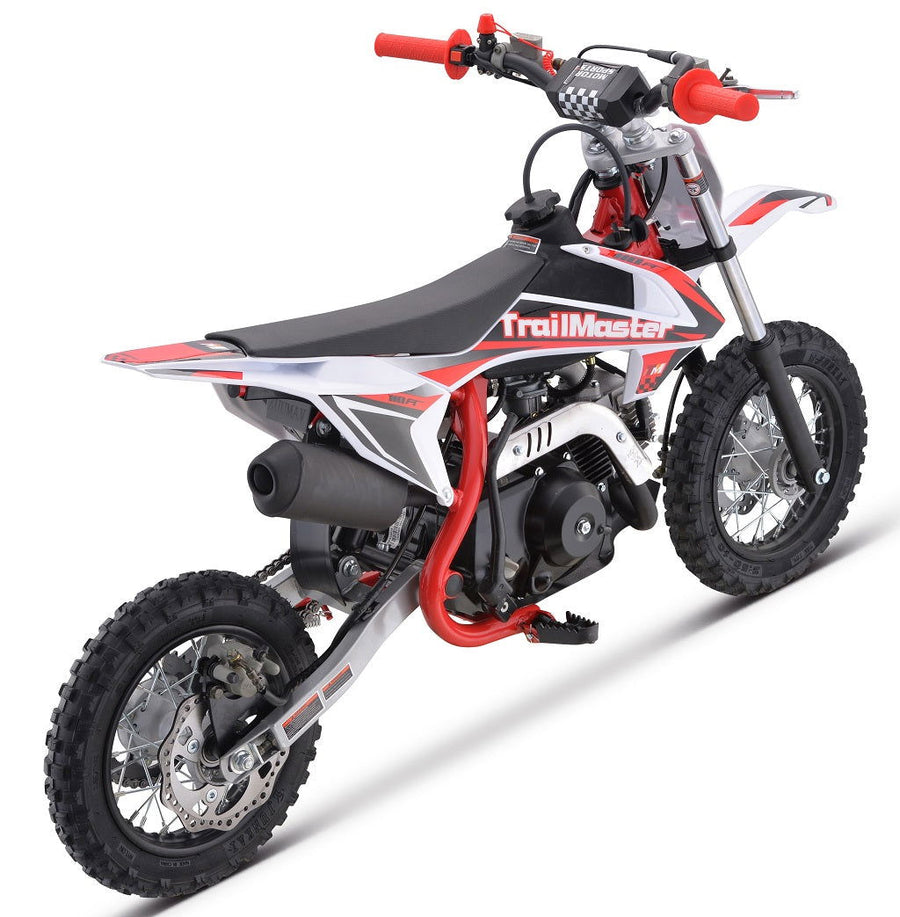

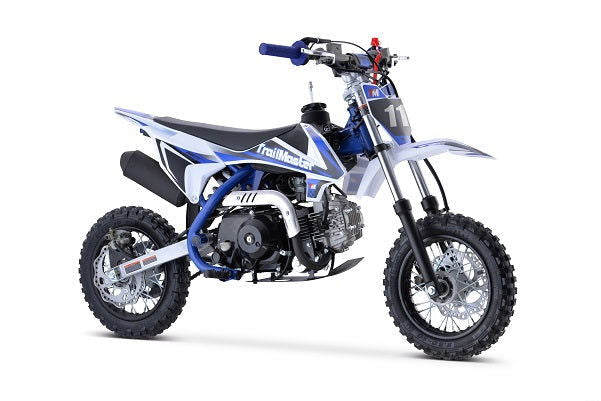

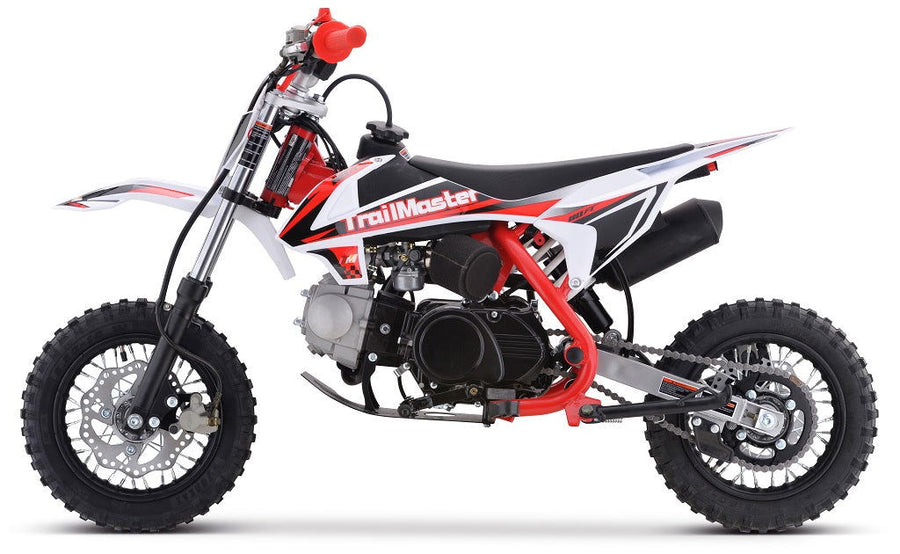

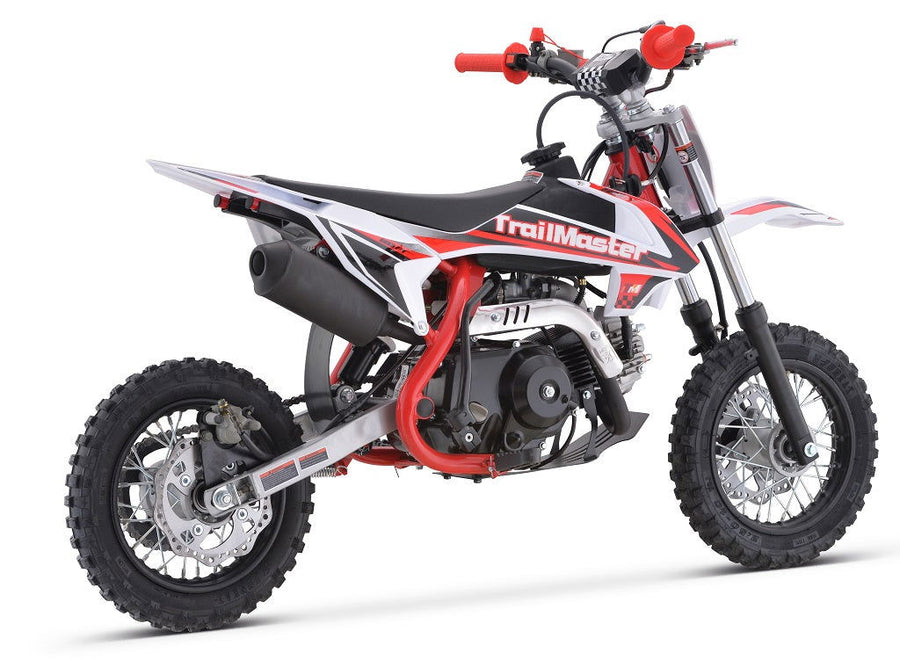

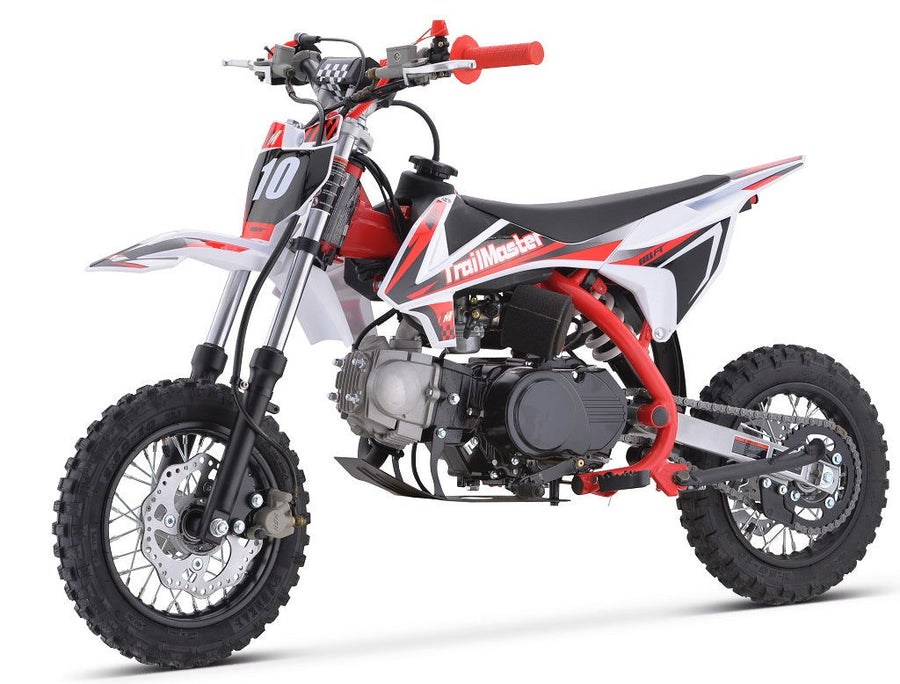

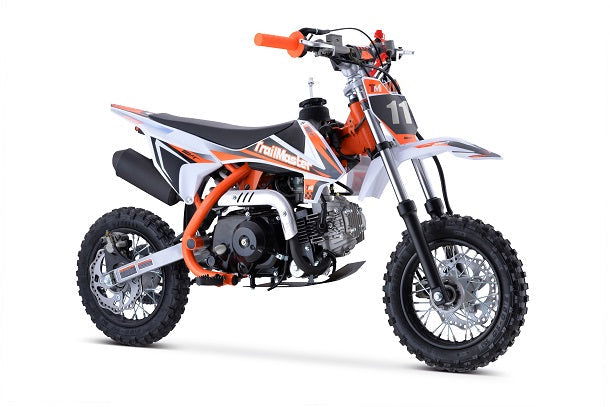

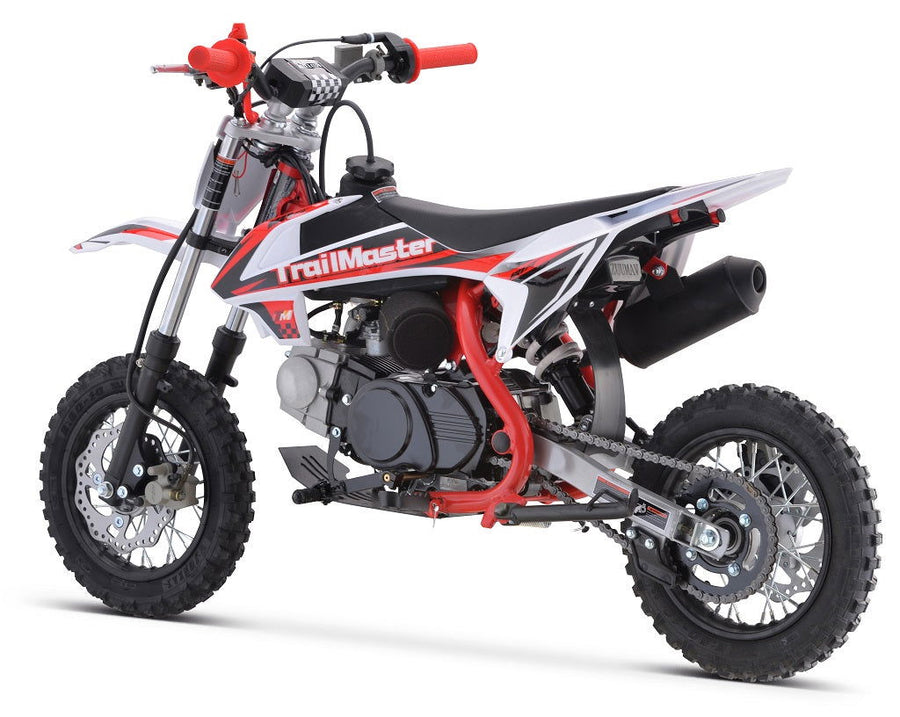

TrailMaster TM10 110cc Dirt Bike 4-Speed Auto Clutch, Dual Disc (10/10), Ages 8-12
No review
Price
$799.00
Selected Size
Green
Availability
Currently Unavailable
This item is not available to order right now
customers are viewing this product
No clutch to worry about lets them focus on learning to ride and shift.
The TrailMaster TM10 110cc Dirt Bike is an ideal entry-level vehicle for younger riders. Powered by a reliable 110cc 4-stroke engine with a max speed of 35 MPH, its 4-speed auto clutch and dual disc brakes offer a safe and controlled ride. The heavy-duty frame is designed for maximum durability and features 10" front and rear tires. Available in Red, Blue, Green, and Orange.
The TM 10‐110 (SEMI‐AUTO) is a great Junior size dirt bike. It has a high performance 110cc 4-stroke 6 hp engine with kick start and a top speed of around 35 MPH and a seat height of 24”.
Specifications
Engine System
- Engine Type: 110CC, Single Cylinder, 4‐Stroke, Air Cooled
- Displacement: 107 ml
- Automatic Clutch, N‐1‐2‐3‐4
- Start Type: Kick Start Only
- Bore x Stroke: 52.4×49.5mm
- Max Power: 6.7 hp
- Max Torque: 7.5/5500±500N.m/r/min
- Compression Ratio: 9.0:1
- Min. Fuel Consumption: ≤367g/kw.h
- Engine Oil: 5W-30
- Ignition: CDI
- Transmission: #420 Chain, FT: 14T/RR: 39T Sprocket
Size Data
- Overall Size (L*W*H): 59.84" X 25.60" X 33.07"
- Wheelbase: 39.37"
- Seat Height: 24.41"
- Ground Clearance: 8.27"
- Fuel Capacity: 2.2L / 0.58 Gal.
- Wheels: Fr. & Rr. Both Steel 1.40 ×10/￠12 Rims, Cast Hubs
- Tires: Fr. & Rr. Both 2.50x10, Knobby tires
Frame/Suspension/Brake System
- Cradle Type Steel Tube Frame
- Front Fork: 33*650mm Telescopic Forks, Non‐Adjustable
- Rear Shock 10*270mm, Non‐Adjustable
- Swing‐Arm: Steel Tube 12inch
- Handlebar: Steel Crossbar, L=620mm; Dia=22mm
- Front Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Exhaust: Black Pipe with catalyst converter (EPA Standard)
- Packing Size: 49.4*13.2*24.2 inch
- N.W: 111.3 LBS
- G.W: 126.8 LBS
