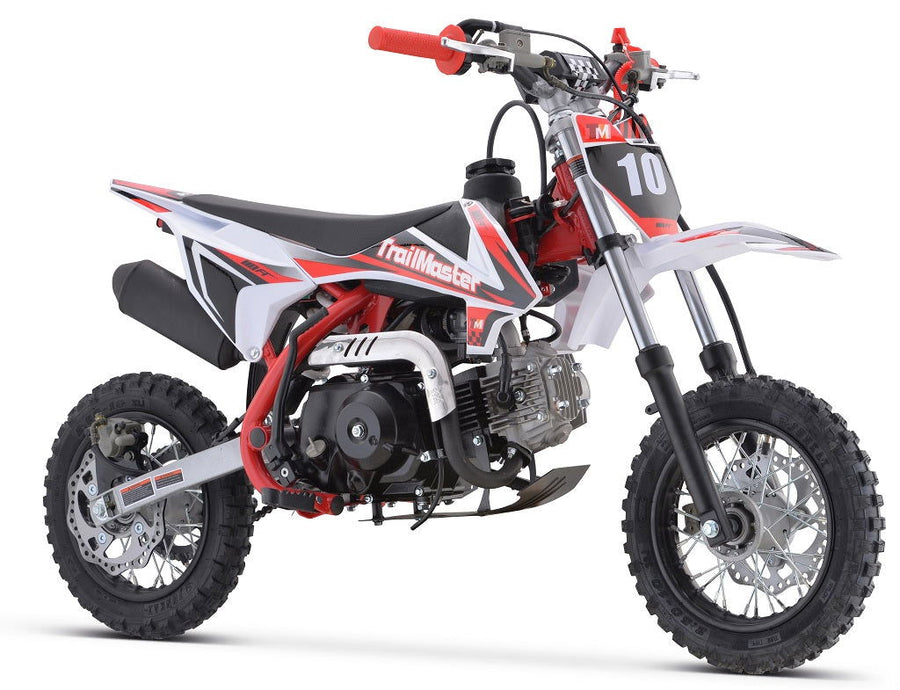

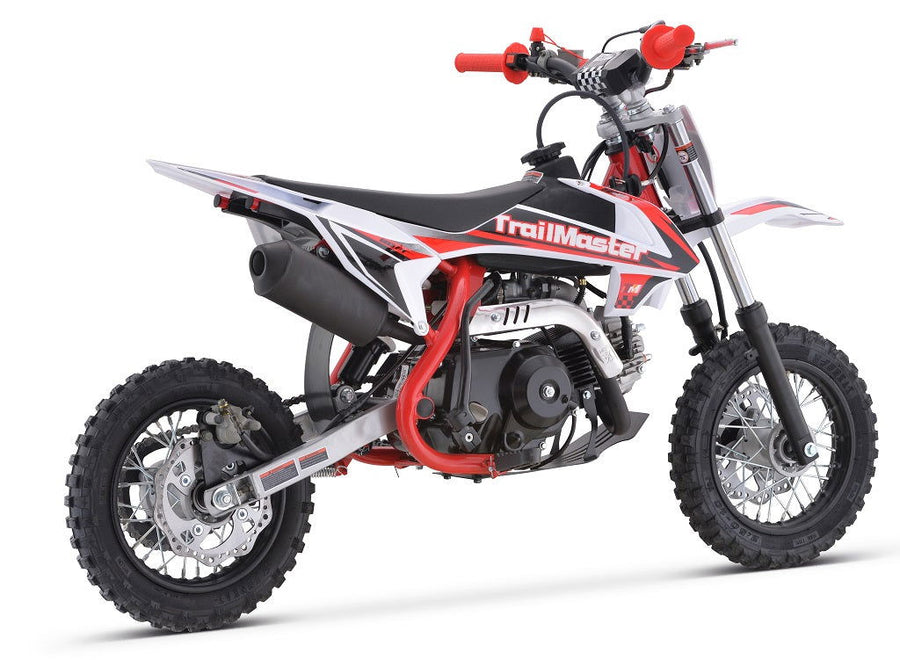

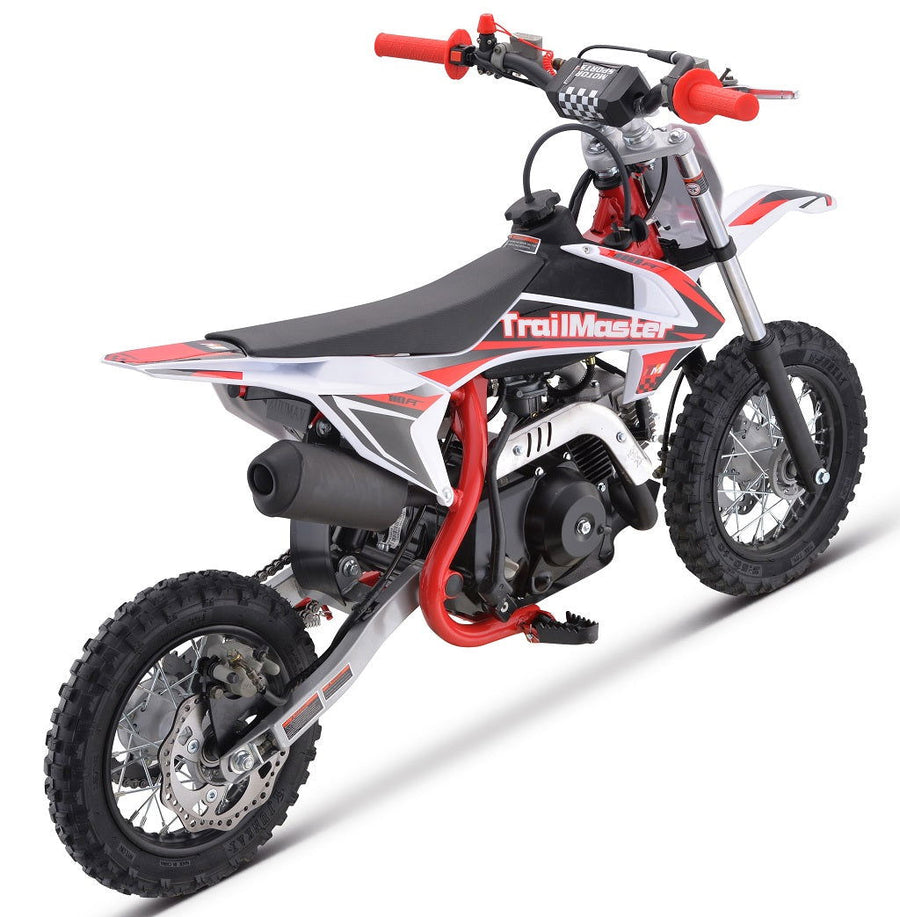

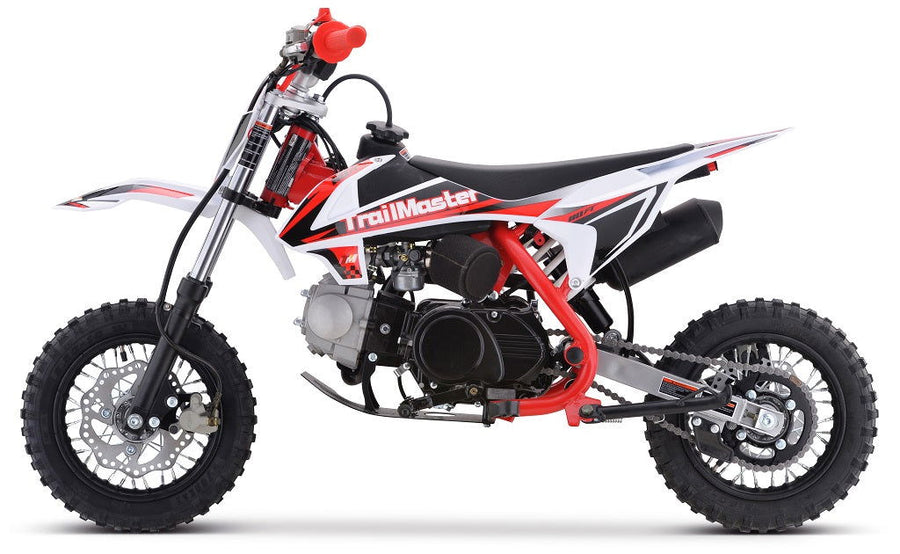

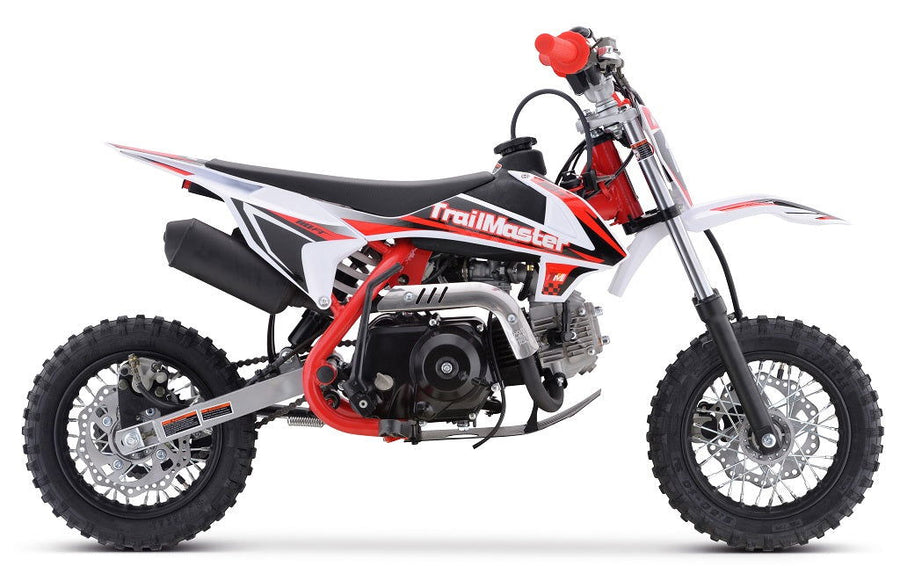

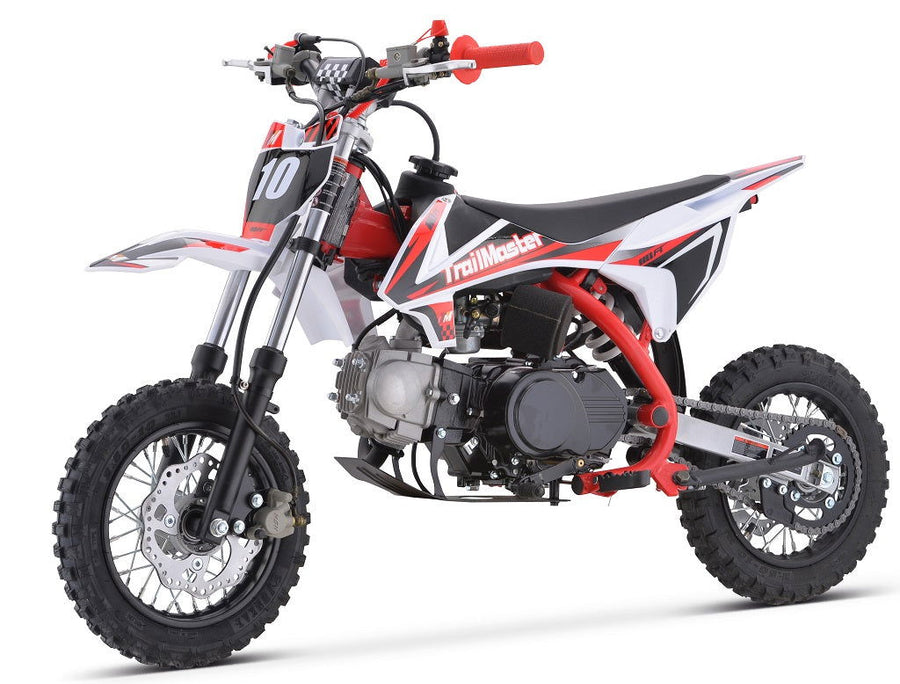

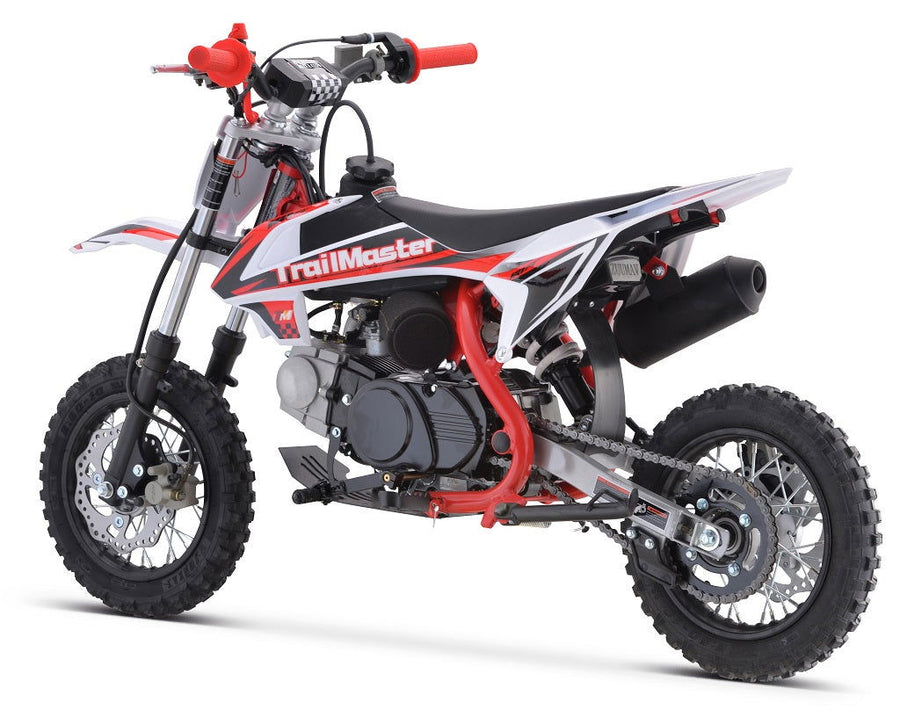

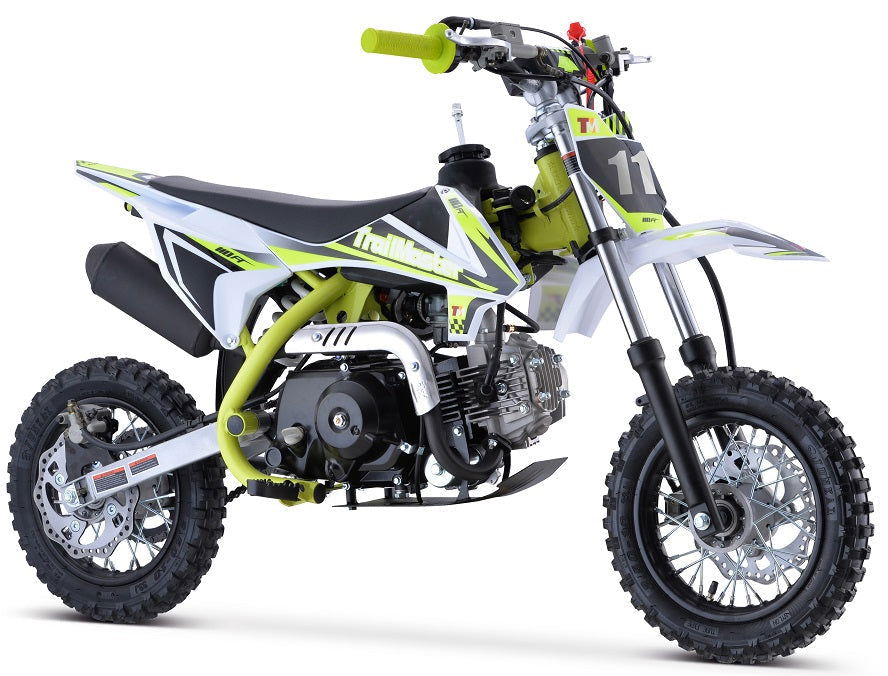

TrailMaster TM11 110cc Dirt Bike Fully Auto with Electric Start, Dual Disc Brakes (10/10), Ages 8-12
No review
Price
$829.00
Selected Size
Red
Availability
Currently Unavailable
This item is not available to order right now
customers are viewing this product

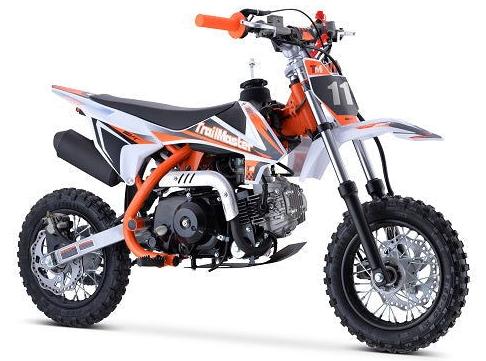

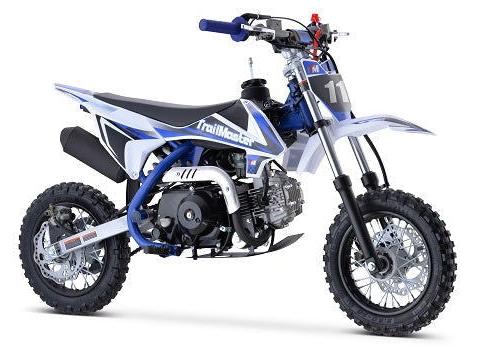

The TM 11‐110 (AUTO) is a great Junior size dirt bike. It has a high performance 110cc 4 stroke 6 hp engine with electric start (No Kick Start) and a seat height of 24”. It is available in red, blue, green, and orange colors. The TM10 features a fully Automatic transmission with one gear, front and rear disc brakes, 10” front & Rear Tire and a heavy-duty frame built for durability!
Specifications
Engine System
- Engine Type: 110CC, Single Cylinder, 4‐Stroke, Air Cooled
- Displacement: 107 ml
- Automatic Clutch, one gear
- Start Type: Electric Start Only
- Bore x Stroke: Ф52.4×49.5mm
- Max Power: 6.7 hp
- Max Torque: 7.5/5500±500N.m/r/min
- Compression Ratio: 9.0:1
- Min. Fuel Consumption: ≤367g/kw.h
- Engine Oil: 5W-30
- Ignition: CDI
- Transmission: #420 Chain, FT: 14T/RR: 39T Sprocket
Size Data
- Overall Size (L*W*H): 59.84"X25.60"X33.07"
- Wheelbase: 39.37"
- Seat Height: 24.41"
- Ground Clearance: 8.27"
- Fuel Capacity: 2.2L / 0.58 Gal.
- Wheels: Fr. & Rr. Both Steel 1.40 ×10/￠12 Rims, Cast Hubs
- Tires: Fr. & Rr. Both 2.50x10, Knobby tires
Frame/Suspension/Brake System
- Cradle Type: Steel Tube Frame
- Front Fork: ￠33*650mm Telescopic Forks, Non‐Adjustable
- Rear Shock: ￠10*270mm, Non‐Adjustable
- Swing‐Arm: Steel Tube 12inch
- Handlebar: Steel Crossbar, L=620mm; Dia=￠22mm
- Front Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Rear Brake: Hydraulic Single Piston Caliper, 190mm Disc
- Exhaust: Black Pipe with catalyst converter (EPA Standard)
- Packing Size: 49.4*13.2*24.2 inch
- N.W: 111.3 LBS
- G.W: 126.8 LBS
