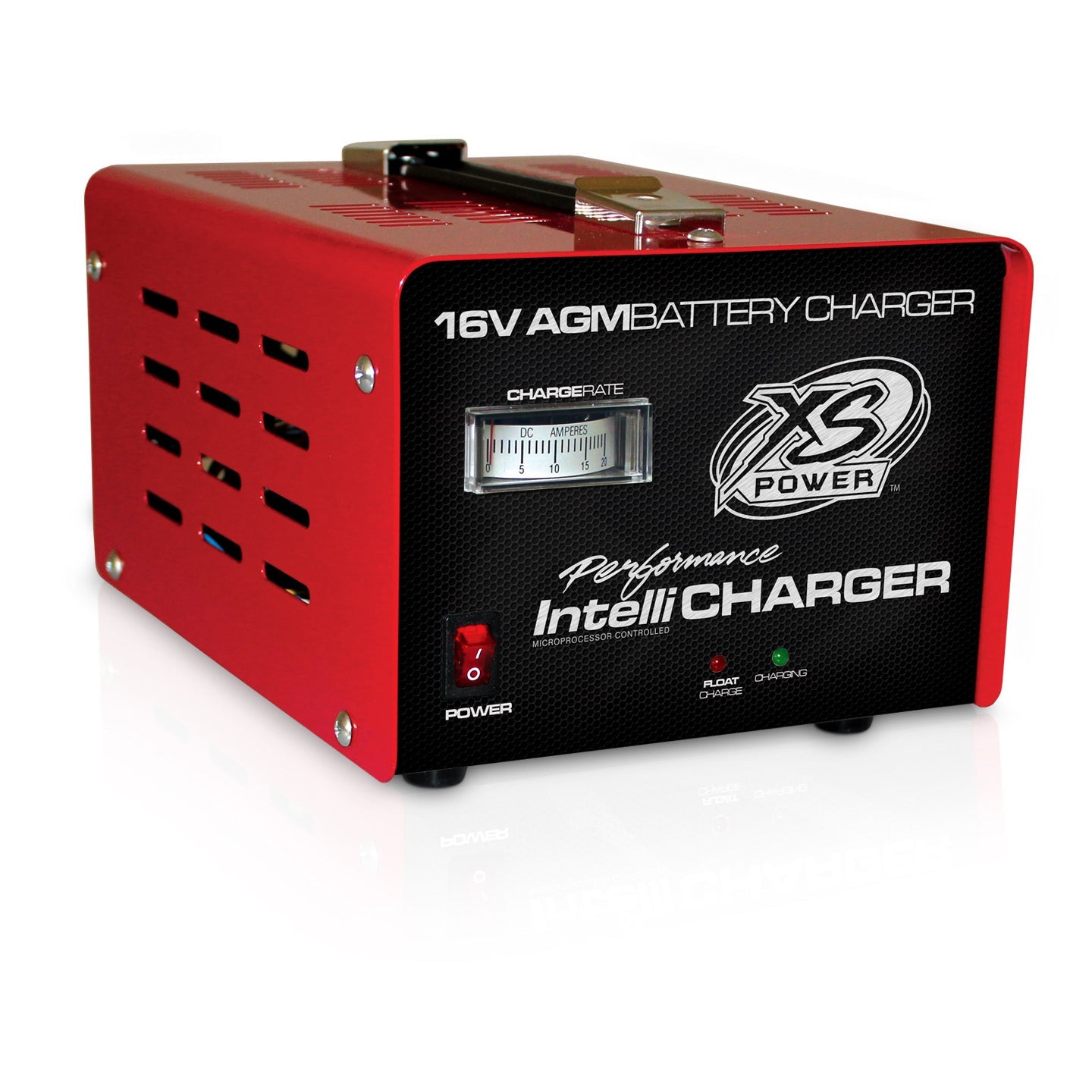

XS Power 1004 16V Battery Charger – 20A

XS Power 1004 16V Battery Charger – 20A is a charging tool for matching 16V battery systems.

Lee Motorsports is a nationwide authorized XS Power dealer.

Specifications and product details

Features

• Three stage microprocessor-optimized charging
• Charge rate ammeter
• Integrated cooling fan
• Copper-plated battery clamps included
• Auto 10-hour shutdown

Included hardware and features

• Three stage microprocessor-optimized charging
• Compatible With All 16V AGM and Gel-Cell Batteries
• Charging completed indicator
• Charge rate ammeter
• Integrated cooling fan
• Copper-plated battery clamps included
• Auto 10-hour shutdown

Practical application examples

• Workshop or race-pit recharge: Restore charge between uses with the battery isolated or connected as required by its instructions. Confirm the battery accepts the charger’s current and charge profile before connecting.
• Storage care: Use continuous maintenance only if both battery and charger instructions allow it. An automatic charger is not automatically a suitable maintainer for every lithium model.

Selection and installation checklist

• Match nominal voltage, supported chemistry and the battery’s approved charge profile.
• Confirm recommended battery capacity and charging current; charging speed is not the only selection factor.
• Keep cooling paths clear and check the installation environment against the charger manual.
• Check polarity before connection and follow the specified sequence for battery leads and AC power.

Questions about 1004

Will 1004 charge any battery with the same voltage?

No. The correct voltage is only one requirement. Chemistry, maximum charging voltage, current limits and maintenance behavior must also match the battery instructions.

How long will charging take?

Time depends on the charge deficit, battery acceptance, charger current and charge stage. A simple Ah ÷ A calculation is only an ideal estimate; tapering, losses and battery condition add time.

Does automatic shutoff mean I can leave it connected indefinitely?

Only when the battery and charger instructions explicitly permit that use. Lithium storage and float behavior can differ from AGM requirements.

Manuals, warranty and Lee Motorsports support

16V 1004 IntelliCHARGER Instructions (PDF)

Manufacturer warranty coverage depends on the applicable terms, installation and use. Contact Lee Motorsports with your model, order details and symptoms for assistance. Returns are subject to Lee Motorsports’ return policy.

Build the rest of your setup

• Compare XS Power products with the buying guide
• Shop related XS Power products
• Installation instructions, care and warranty library
• Ask Lee Motorsports about your setup

Ordering and availability

Current price and availability are shown above. Confirm delivery timing and local-pickup eligibility for your exact item with Lee Motorsports. An inventory quantity does not by itself establish that the item is on the Joplin shelf.
