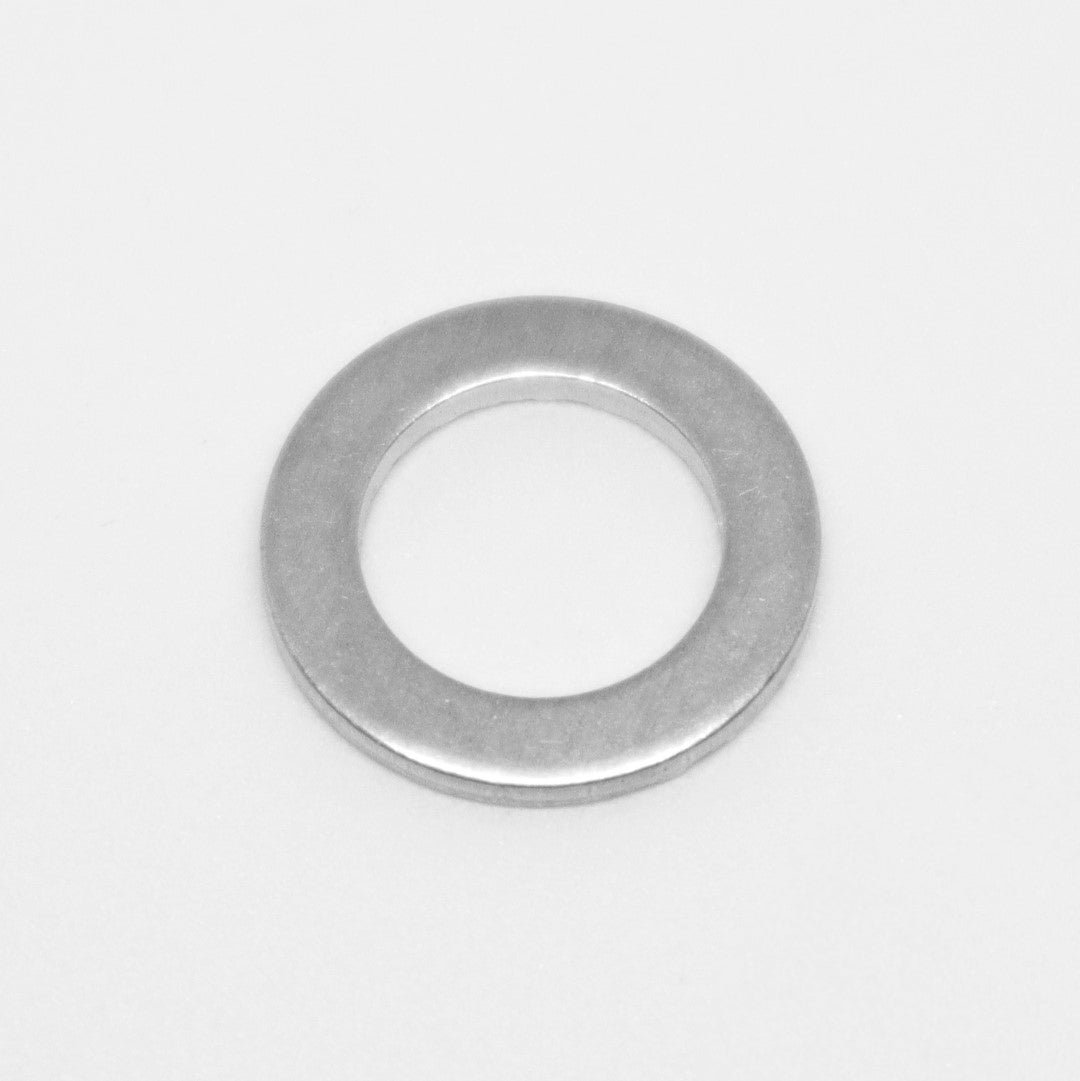

Aluminum Crush Washer – AN Sizing
No review
Price
$2.00
Selected Size
03 AN
Your selected option · two ways to get it
Ships nationwideDelivery options and rates at checkout.
customers are viewing this product
These Aluminum Crush Washers are designed for use with fittings requiring the use of a crush washer to provide a tight leak-proof seal, such as banjo fittings or our magnetic oil drain plugs. These are sized for AN or ORB applications, but may have other possible uses. Refer to table below for ID/OD sizing.
| Part Number | OD | ID |
|---|---|---|
| WSHR-AL-03 | 15.9mm OD | 9.8mm ID |
| WSHR-AL-04 | 17mm OD | 11.3mm ID |
| WSHR-AL-06 | 20mm OD | 14.5mm ID |
| WSHR-AL-08 | 25.3mm OD | 19.3mm ID |
| WSHR-AL-10 | 28.28mm OD | 22.5mm ID |
| WSHR-AL-12 | 33.5mm OD | 27.2mm ID |
| WSHR-AL-16 | 40mm OD | 33.5mm ID |
| WSHR-AL-20 | 47.5mm OD | 41.5mm ID |
Technical information & fitment help
Finish Line Factory technical library
Confirm the exact part, connection and operating conditions before assembly. Ask Lee Motorsports about your setup.
