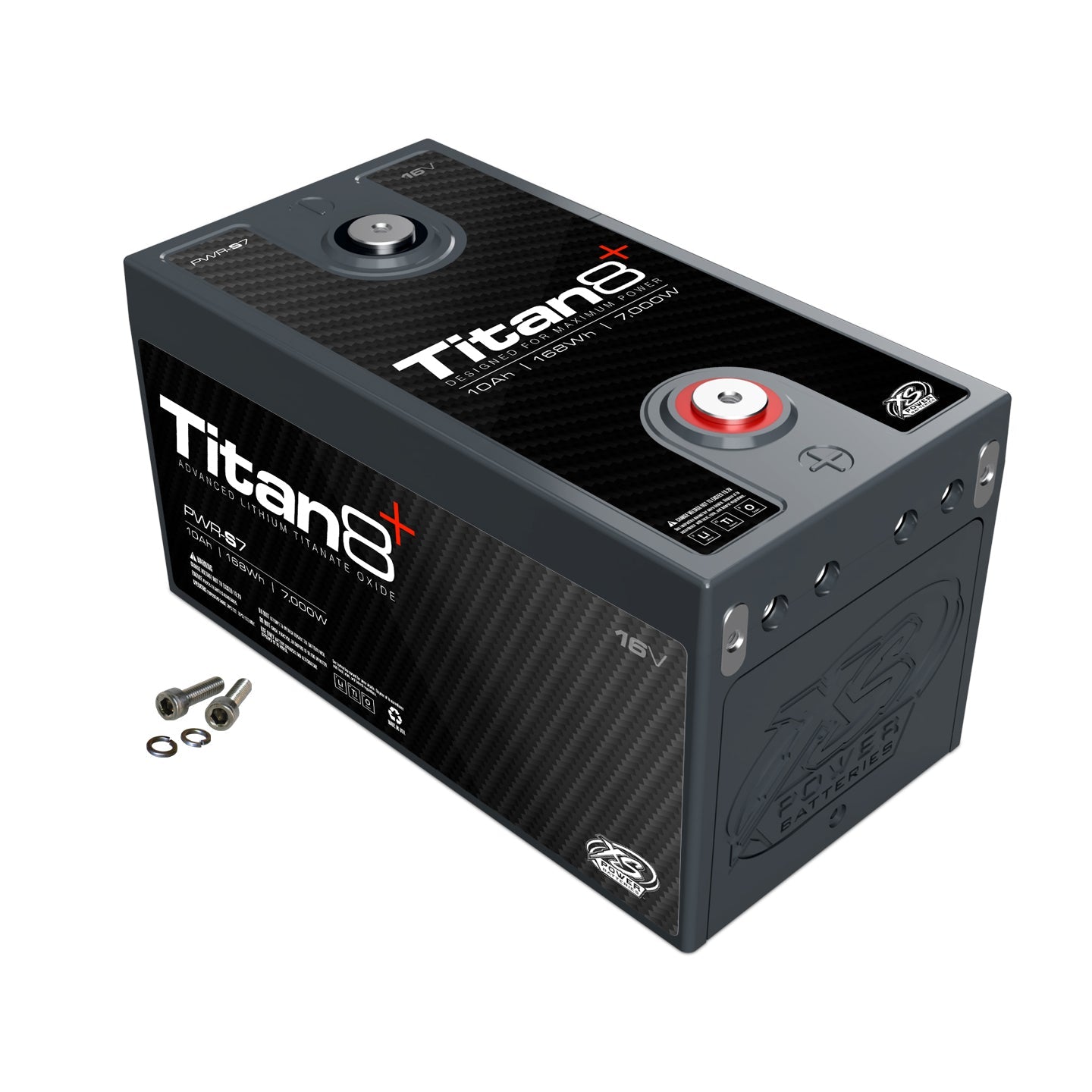

XS Power PWR-S7 16V TITAN8 LTO Lithium Racing Battery is a battery option for a compatible motorsports electrical system. This TITAN8 model uses lithium titanate oxide (LTO); its charging and installation requirements differ from AGM and LiFePO4 batteries.
Lee Motorsports is a nationwide authorized XS Power dealer.
What PWR-S7 brings to your setup
- 16V LTO TITAN8 model PWR-S7.
- 10 Ah actual lithium capacity; AGM-equivalent figures are listed separately.
- 1500 CA; compare starting demand and the rating test conditions.
- 2000 maximum amps is a peak rating, not a continuous-current or runtime promise.
- Published battery weight: 10 lbs..
Specifications
| Model |
PWR-S7 |
| Product type |
TITAN8 Lithium Batteries |
| Nominal voltage |
16V |
| Technology |
LTO |
| Series |
TITAN8 |
| Maximum current (amps) |
2000 |
| Capacity (Ah) |
10 |
| AGM-equivalent capacity (Ah Pb Eq) |
30 |
| Energy (Wh) |
168 |
| Battery weight |
10 lbs. |
| Cranking amps (CA) |
1500 |
Physical fit and terminal checks
Confirm exact case dimensions with Lee Motorsports before ordering. Shipping-package dimensions are not physical-fit dimensions.
- Measure the tray and usable length, width and height. Include the hold-down, battery cables and terminal clearance.
- Identify positive and negative terminal locations and match the cable end style and fastener size.
- Secure the battery against movement; follow the vehicle’s installation requirements and the applicable battery instructions.
- Check current draw, cable sizing, protection and charging-system output as part of the complete installation.
Included hardware
- M6 Terminal Hardware Included
Practical application examples
-
Between-round race-car loads: Include the fuel pump, ignition, electric fan and data logger in the reserve calculation. Repeated starts plus time in staging can require more stored energy than a single engine start.
-
Electrical-system planning: For a 16V setup, verify the starter, ECU, ignition, pumps and charger. This is a system-voltage choice, not a direct replacement for an ordinary 12V vehicle.
Charging, storage and care
Use charging equipment approved for the exact TITAN8 LTO model and voltage. Do not infer compatibility from a “lithium” label alone. Confirm maximum charging voltage, charge current, temperature limits, protection provisions and when to disconnect the charger. Read the applicable TITAN8 instructions before deciding on an under-hood location or building a battery bank.
TITAN8 Lithium Battery Instructions (PDF)
Questions about PWR-S7
Will PWR-S7 fit my vehicle?
A vehicle fitment guarantee has not been established. Send Lee Motorsports the vehicle details, current battery model, tray measurements and terminal layout for a model-specific check.
What do the power ratings mean?
CA and CCA describe starting performance under different test conditions. Maximum amps describes peak current capability. Amp-hours describe stored charge at a stated test rate; these ratings are not interchangeable. Actual runtime depends on load, temperature, voltage cutoff and battery condition.
Which charger should I use?
Use charging equipment approved for the exact TITAN8 LTO model and voltage. Do not infer compatibility from a “lithium” label alone. Confirm maximum charging voltage, charge current, temperature limits, protection provisions and when to disconnect the charger. Read the applicable TITAN8 instructions before deciding on an under-hood location or building a battery bank.
Manuals, warranty and Lee Motorsports support
TITAN8 Lithium Battery Instructions (PDF)
12V, 14V & 16V XS Power TITAN8 Lithium Batteries 1 Year Warranty — read eligibility and exclusions (PDF)
Manufacturer warranty coverage depends on the applicable terms, installation and use. Contact Lee Motorsports with your model, order details and symptoms for assistance. Returns are subject to Lee Motorsports’ return policy.
Build the rest of your setup
Ordering and availability
Current price and availability are shown above. Confirm delivery timing and local-pickup eligibility for your exact item with Lee Motorsports. An inventory quantity does not by itself establish that the item is on the Joplin shelf.
