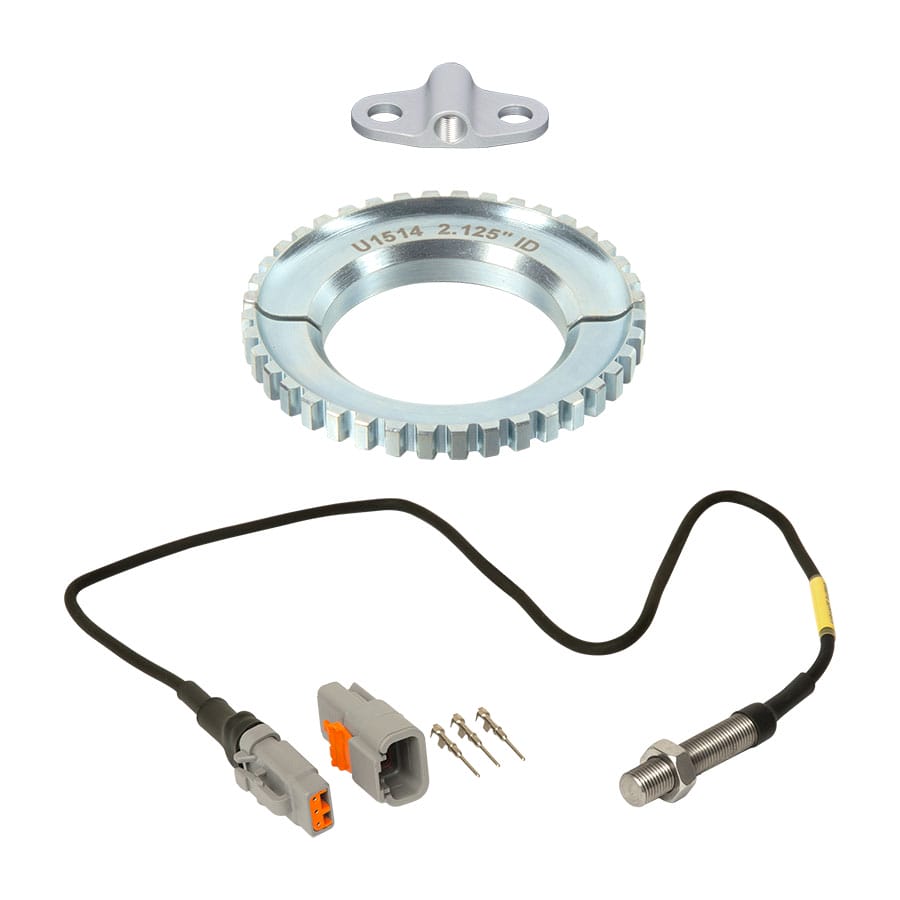

Strange Driveshaft Speed Sensor Kit

Strange driveshaft speed sensor kit for Ultra Case taper / ball pinion support


For Strange Ultra Case Tapered/Ball Support – N1952A
Using 35 spline yoke or coupler

* For 28 spline yoke/coupler – See U1613-TUCB

Design
Provides driveshaft speed information to data acquisition systems
Offers high resolution due to 40 tooth trigger wheel
Produces smooth and easy to read graphs when comparing to other data

Hall Effect Sensor Assembly
• High precision zero speed design
• Industry standard 3/8″-24 fully threaded body
• Stainless steel housing – more durable than aluminum bodies
• Proven reliability in top fuel cars
• Made in the USA
• Requires 4.5-26 VDC supply voltage
• 0-15kHZ operating frequency
• Terminated with Deutsch DTM plug
• Includes mating Deutsch DTM receptacle with pins
• One jam nut provided with sensor

Trigger Wheel
• High resolution 40 tooth trigger wheel
• Plated for corrosion resistance
• Split design with SHCS bolts

Sensor Mounting Bracket
• Billet aluminum
• Clear anodized to resist corrosion
• Attaches to existing pinion support bolts

See Instruction Sheet For More Detailed Information
