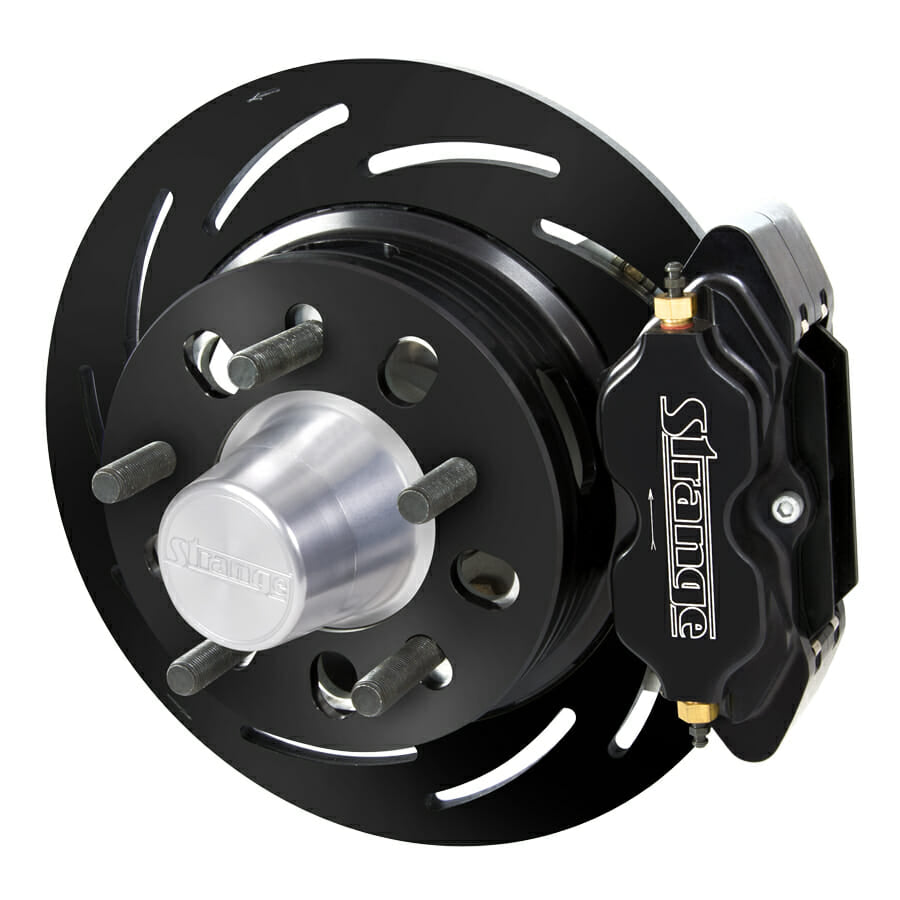

Strange Pro II H/D Front Brake Kit

Pro Series II front brake kit for 1988-1998 Chevy C1500 Pickup with OEM Disc spindles


Designed Specifically For Drag Racing

1988-1998 Chevy C1500 Pickup With OEM Disc Brake Spindles
• Spindles require removal of caliper ears
• See instruction sheet for full details
• Does not fit aftermarket drop spindles

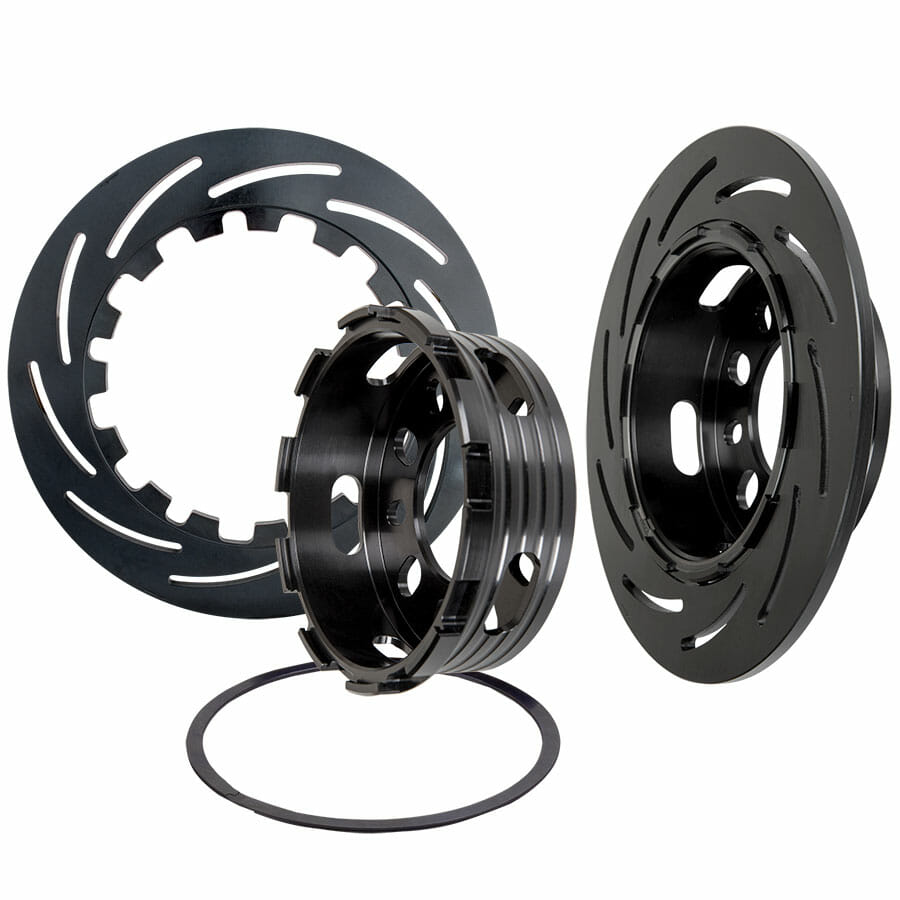

Two Piece Floating Slotted Steel Rotors – B2794L / B2794R
• Isolates rotor from hat section
• Eliminates pulling forces that can result in cupped rotors
• Slots improve air flow, assist in warpage prevention and reduce weight

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

DTC-30 Semi Metallic Brake Pads – B5010
• Best compound suited for front application
• Excellent cold holding capabilities

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Billet Aluminum Hubs
• Strong lightweight material
• Lightening holes for enhanced weight reduction

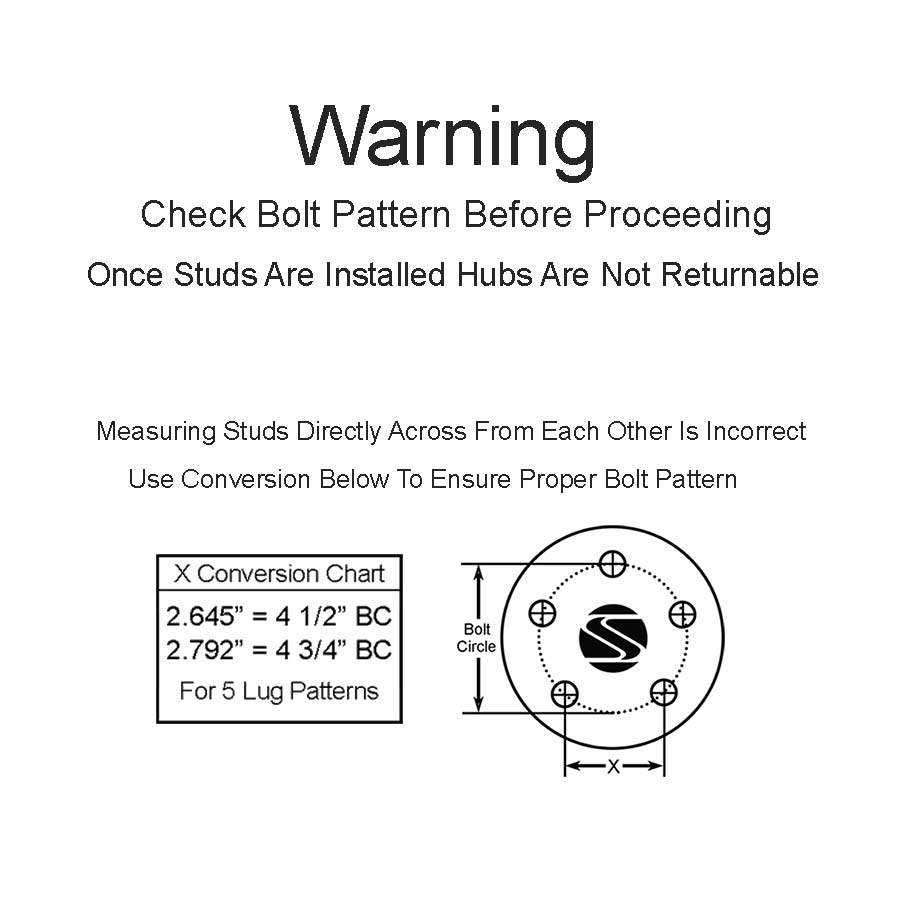

• 4 3/4″ bolt circle
• Billet hub caps with O-rings
• Bearings, races and seals

Screw-in Wheel Studs – A1028
• Tapered allen 1/2″-20 x 2 1/2″
• Standard allen in 3″ available on request

All Necessary Mounting Hardware

Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
