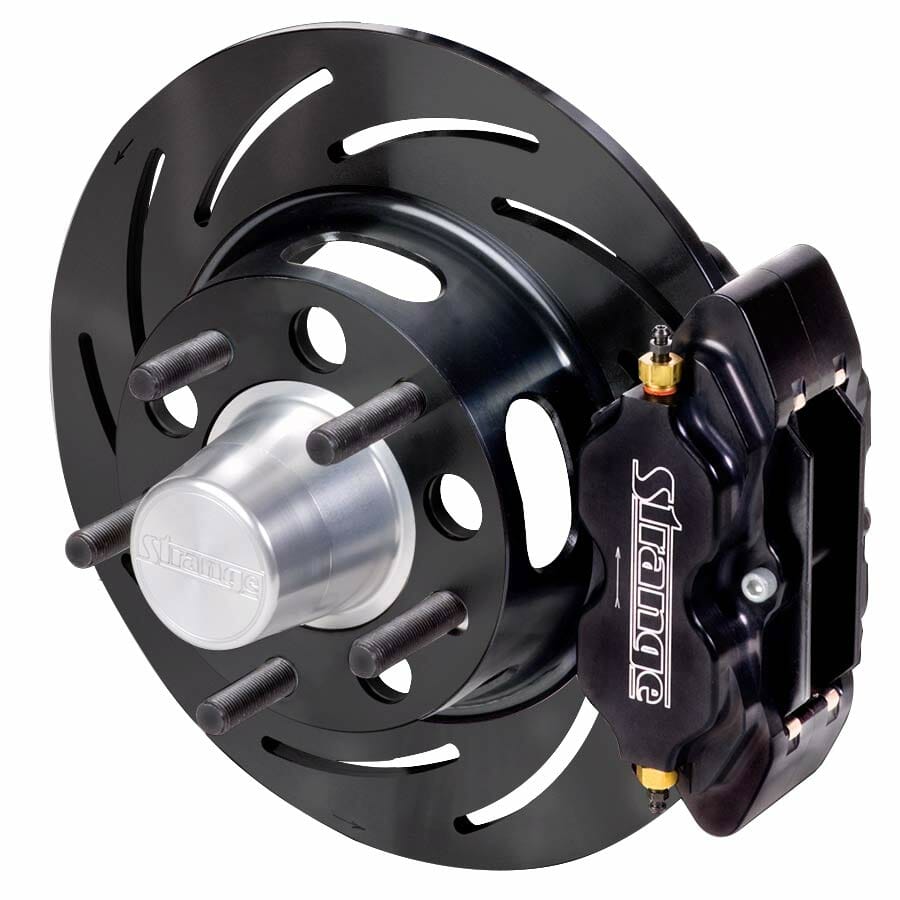

Strange Pro Series H/D Front Brake Kit

1983-1994 Ford Ranger 2WD Pro Series Front Brake Kit – 4 1/2″ BC With 4 Piston Calipers & Forged Rotors


Designed Specifically For Drag Racing

Application
1983-1994 Ford Ranger 2WD

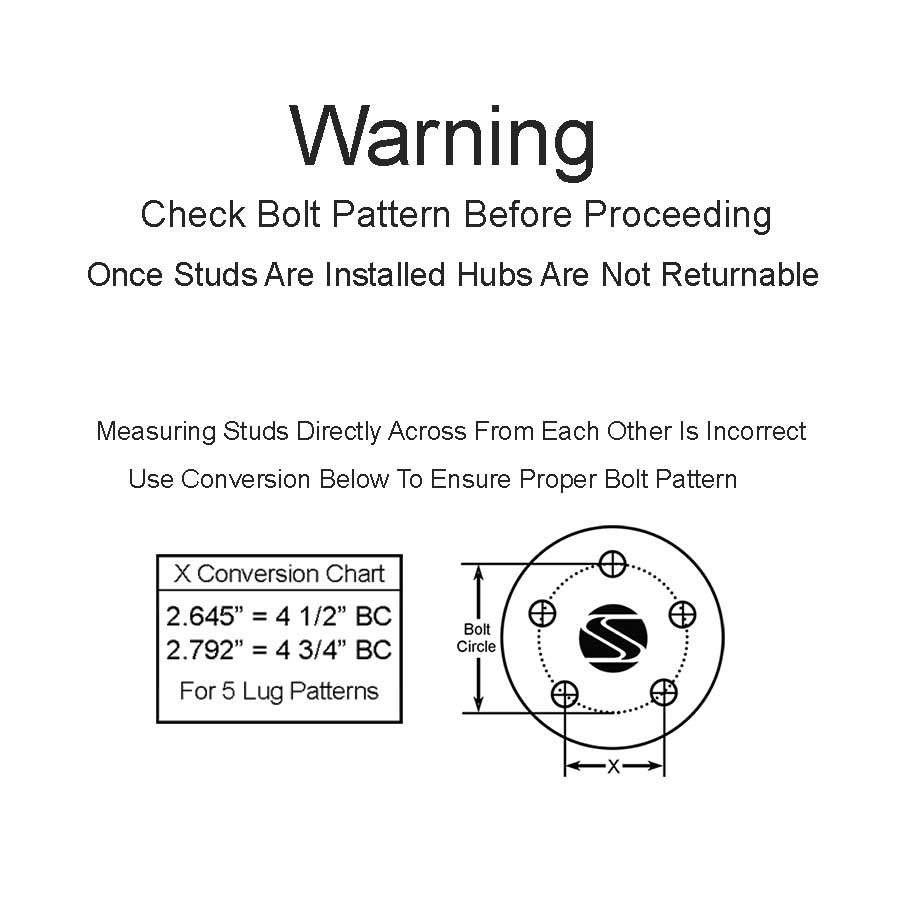

• 4 1/2″ bolt circle
• Requires modification to spindles
• See instruction sheet for more details
• Moves wheel outboard 0.625″ – Verify tire clearance

Weight Savings
• This kit removes 16.2 lbs per side in comparison to stock brakes
• Total weight reduction of 32.4 lbs

One Piece Forged Steel Rotors – B2795 / B2796
• Directional slots increase air flow and reduce weight
• One piece design eliminates bolts & safety wire
• Hat section drilled & milled to further reduce weight

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

DTC-30 Semi Metallic Brake Pads – B5010
• Best compound suited for front application
• Excellent cold holding capabilities

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Billet Aluminum Hubs
• Strong lightweight material
• Lightening holes for enhanced weight reduction
• Billet hub caps with O-rings
• Bearings, races and seals

Screw-in Wheel Studs – A1028
• Tapered allen 1/2″-20 x 2 1/2″
• Standard allen in 3″ available on request

All Necessary Mounting Hardware

Brake hoses and lines are not included
Calipers are tapped 1/8″ NPT and supplied with male 3 AN fittings
