Photos show the catalog model. Confirm the selected configuration and color with Lee Motorsports.
TrailMaster / Dirt Bikes

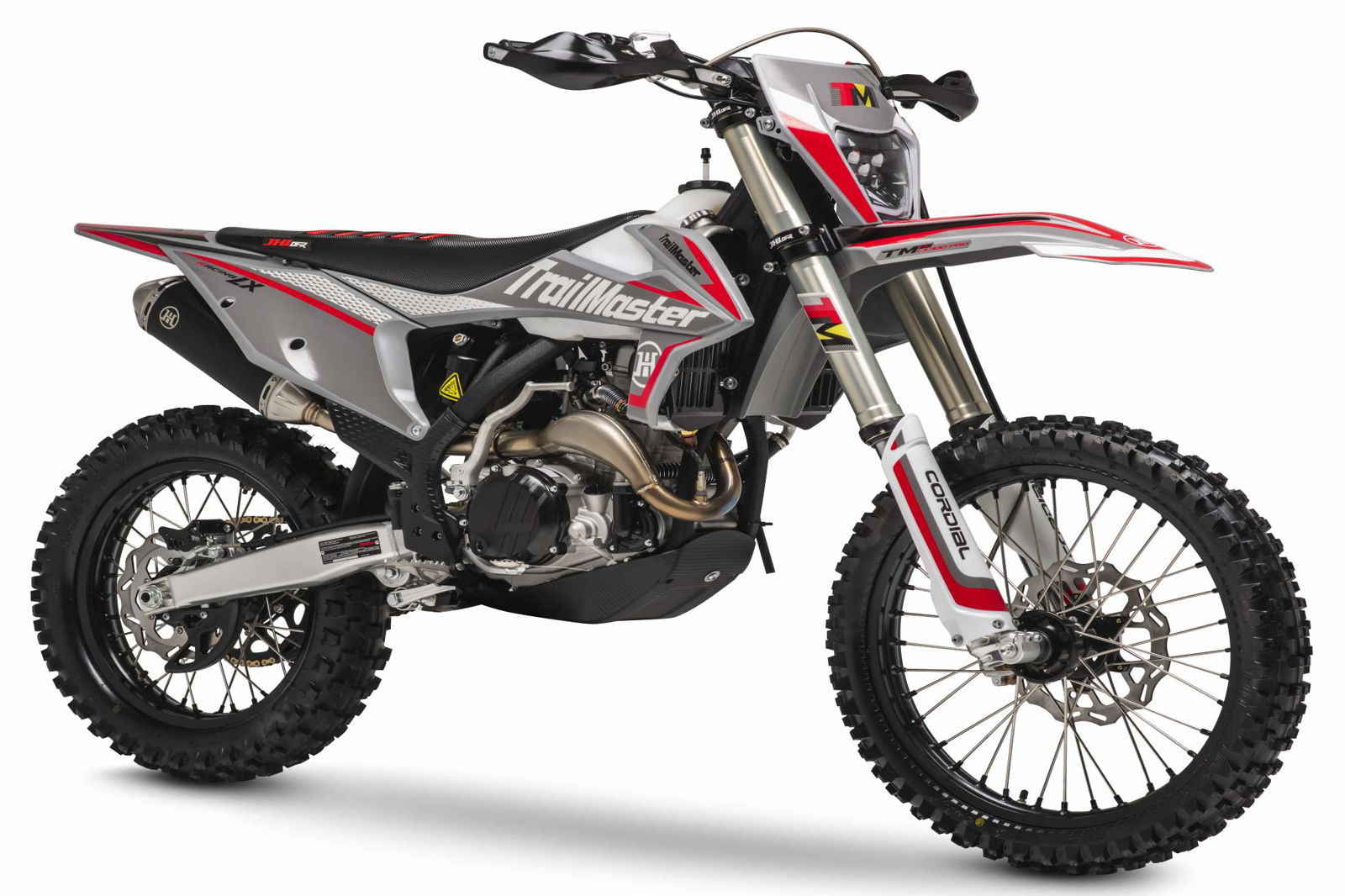

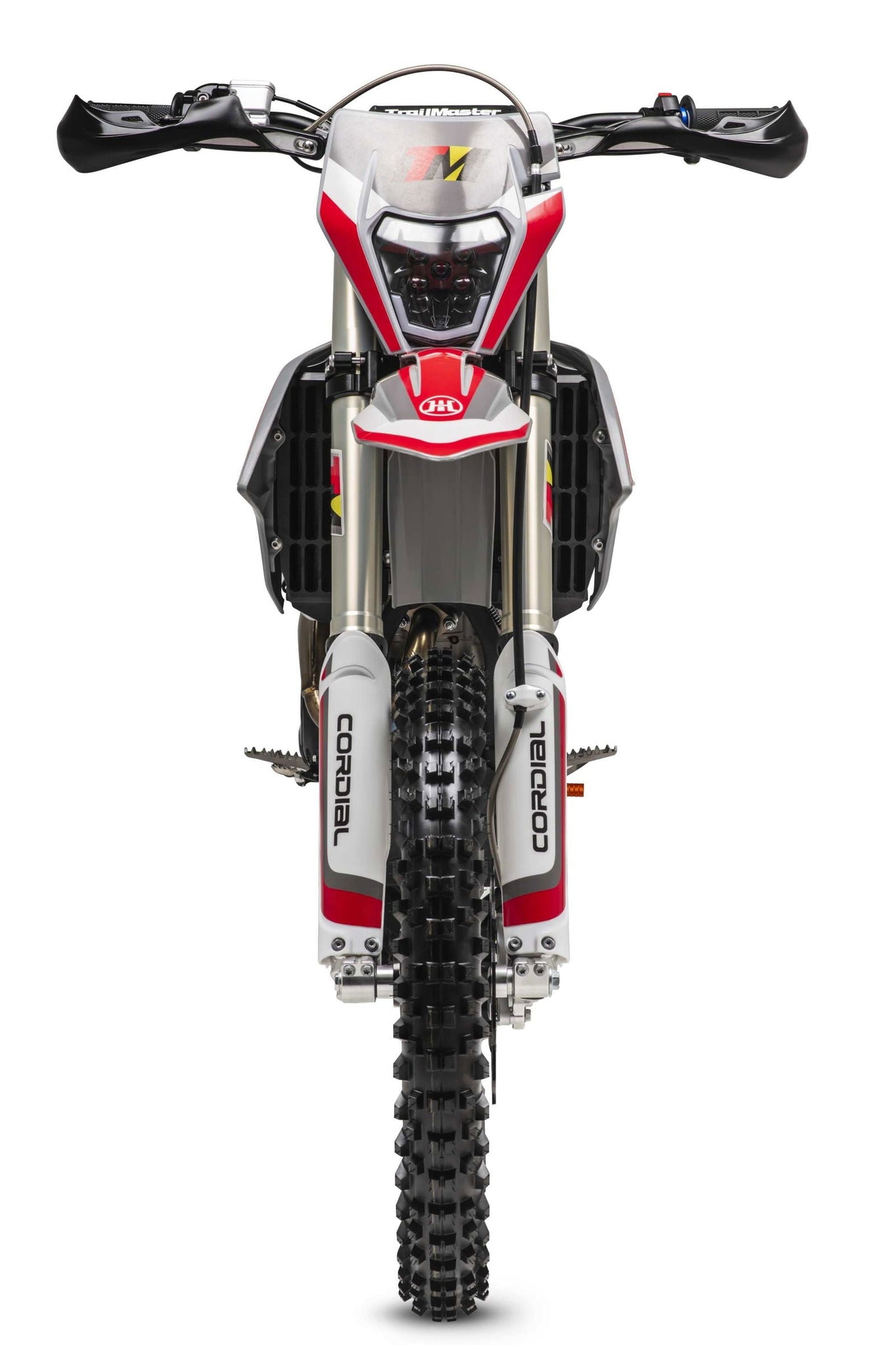

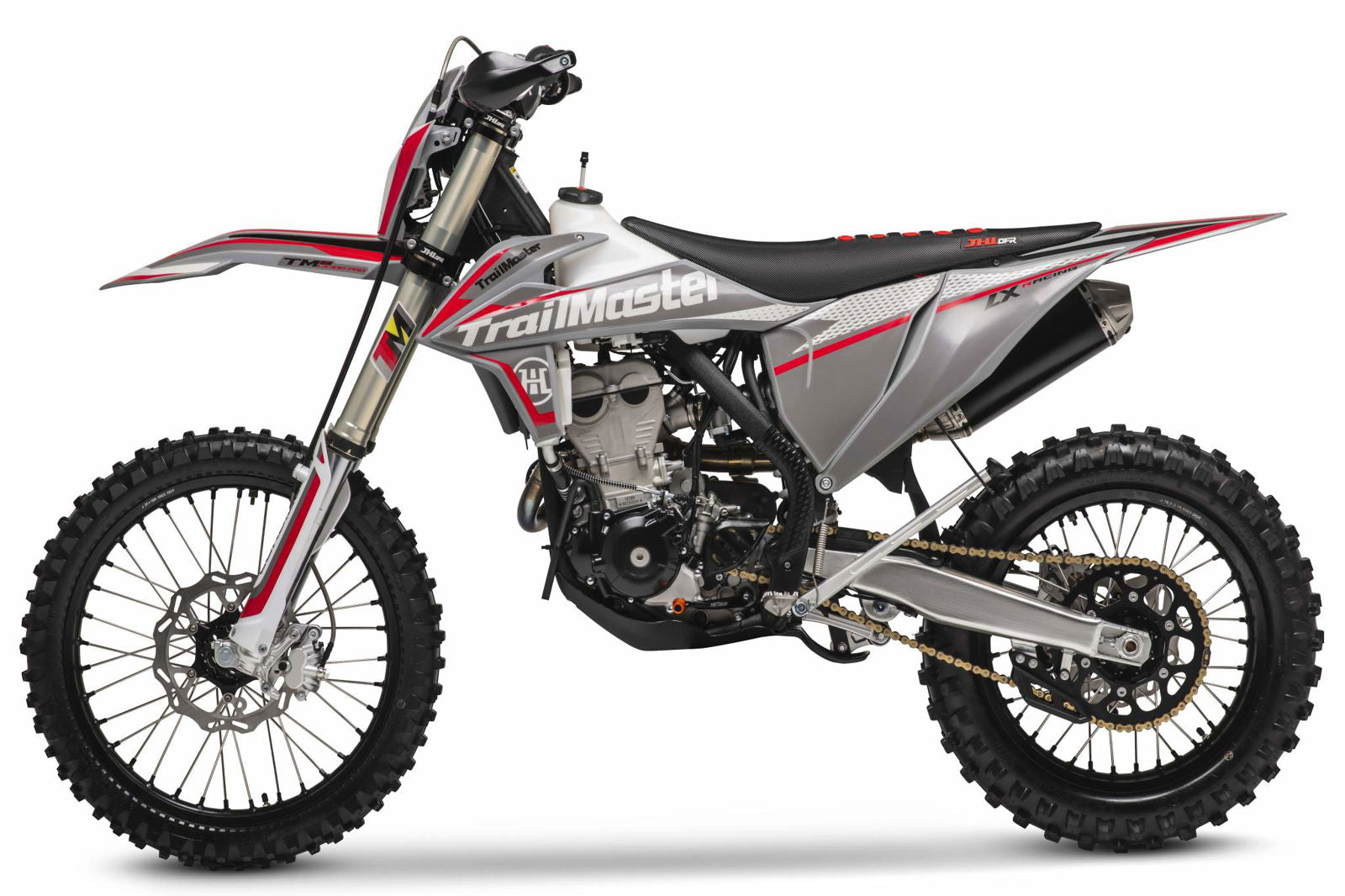

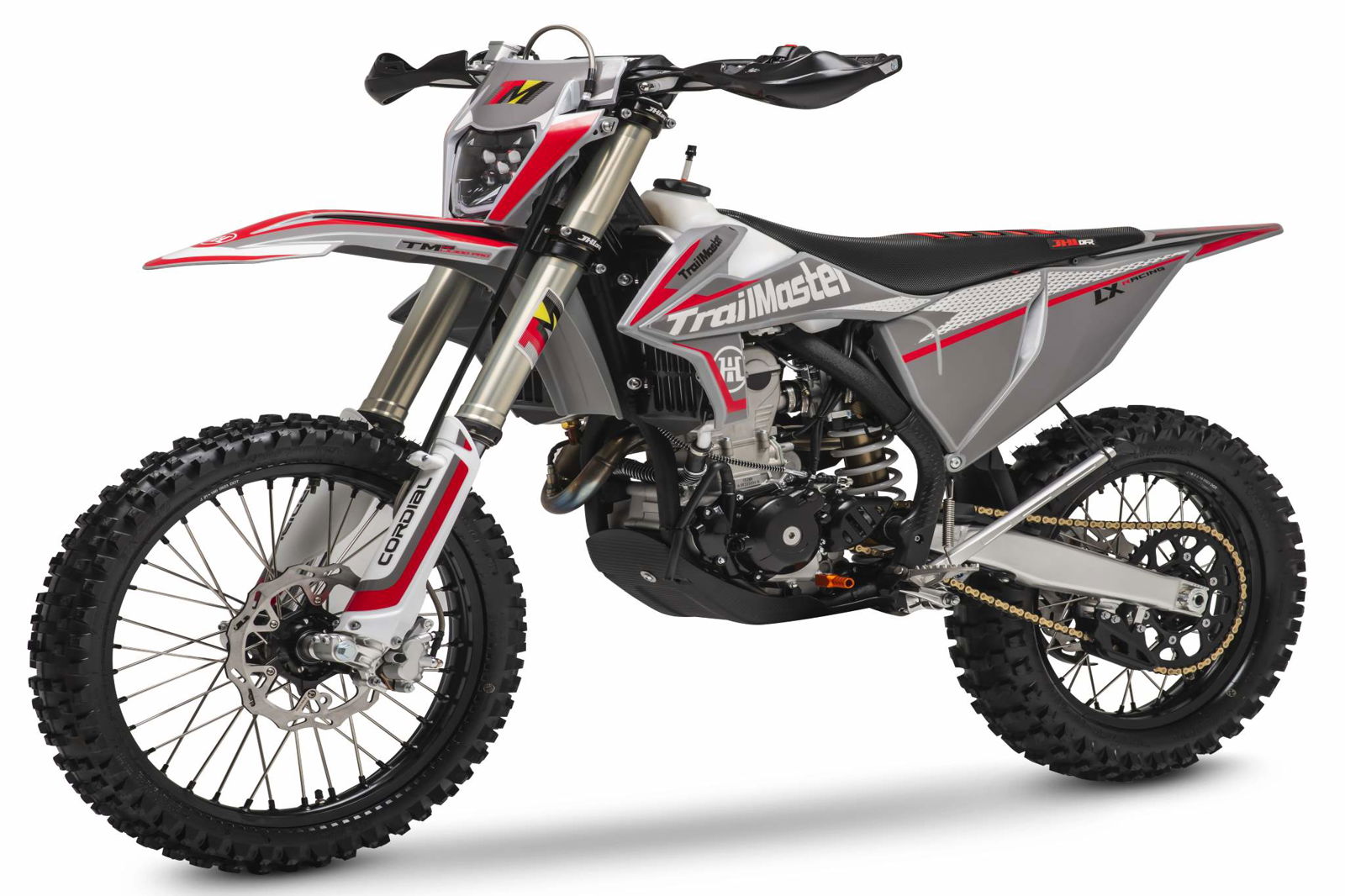

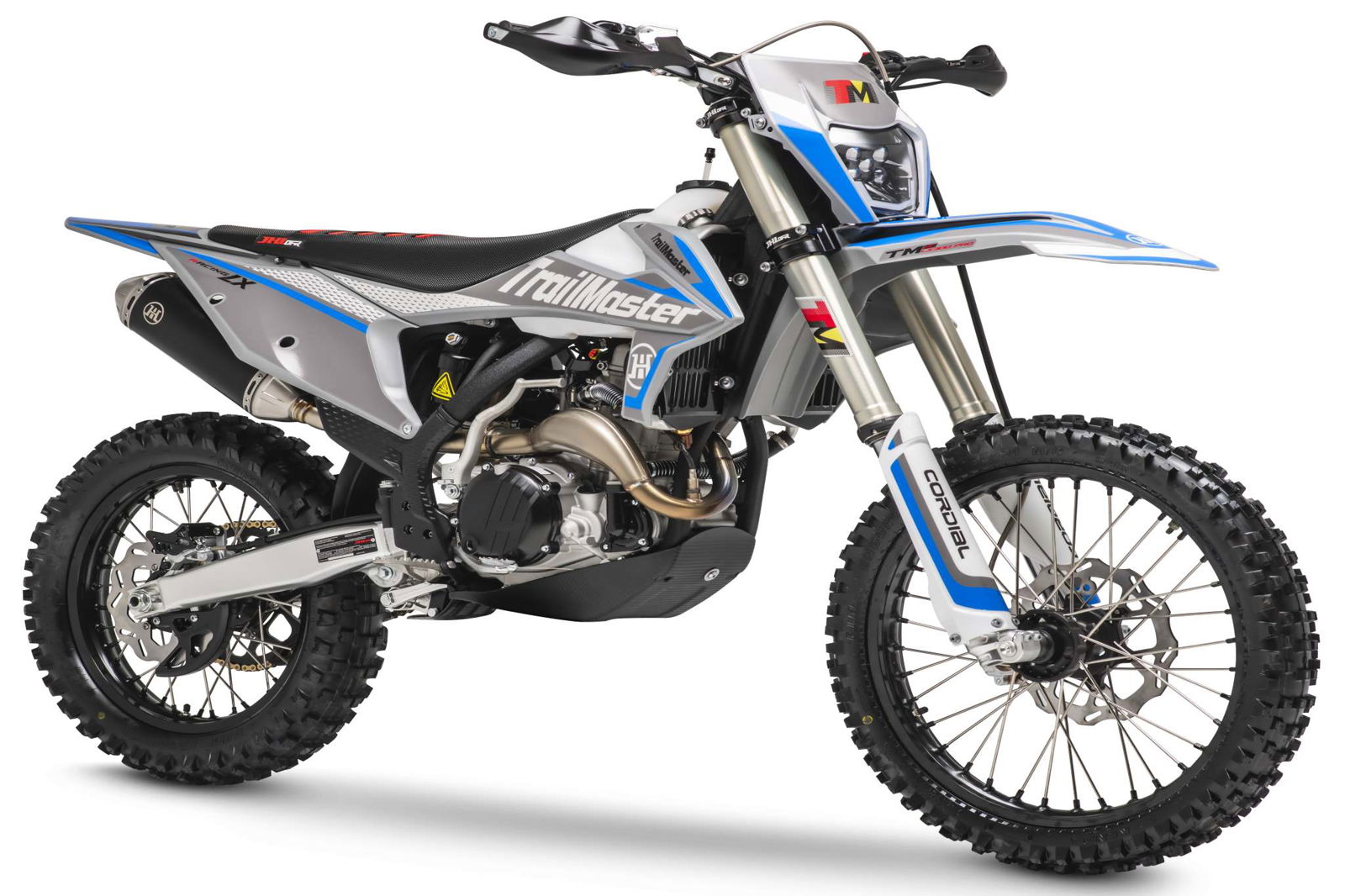

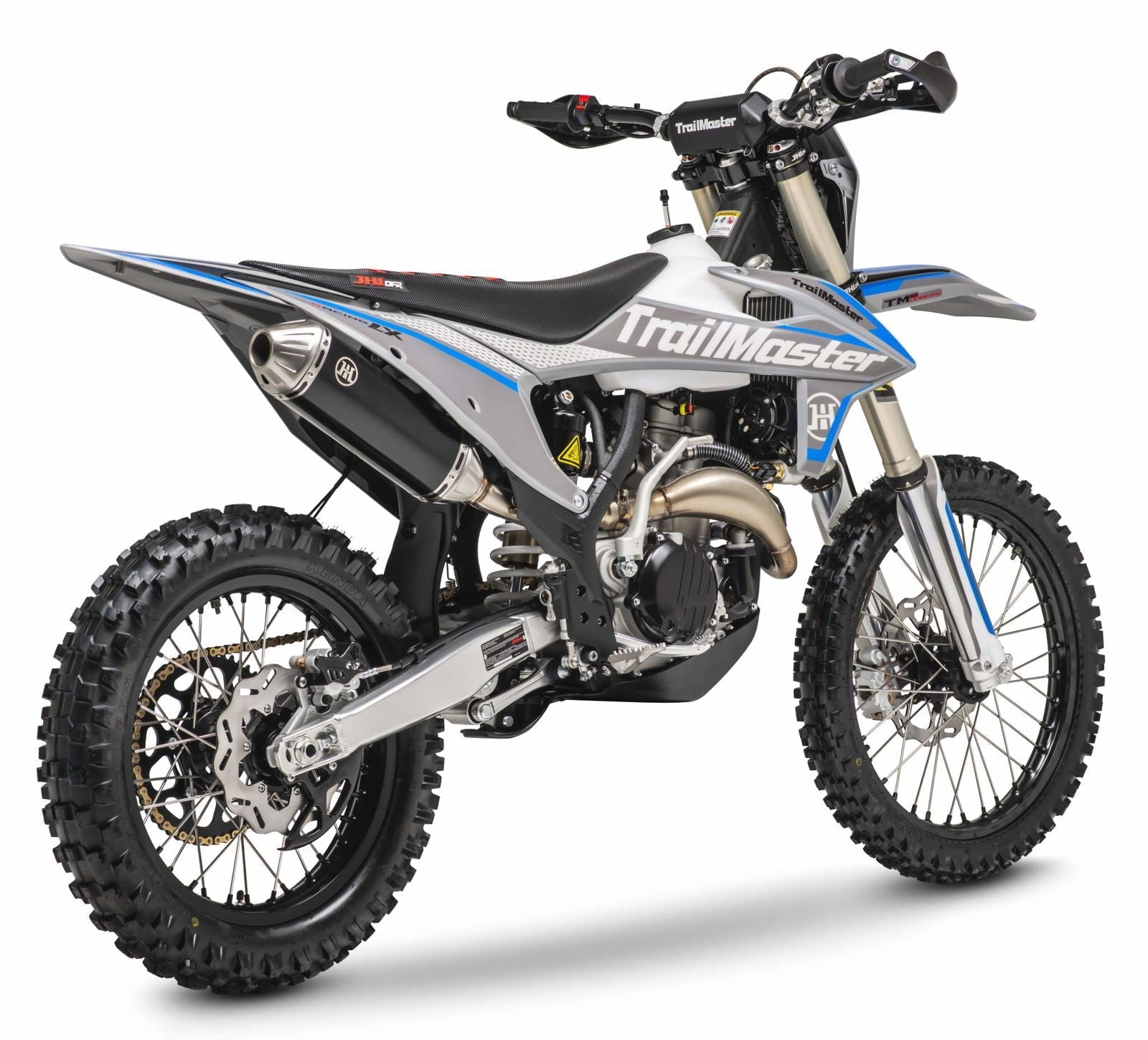

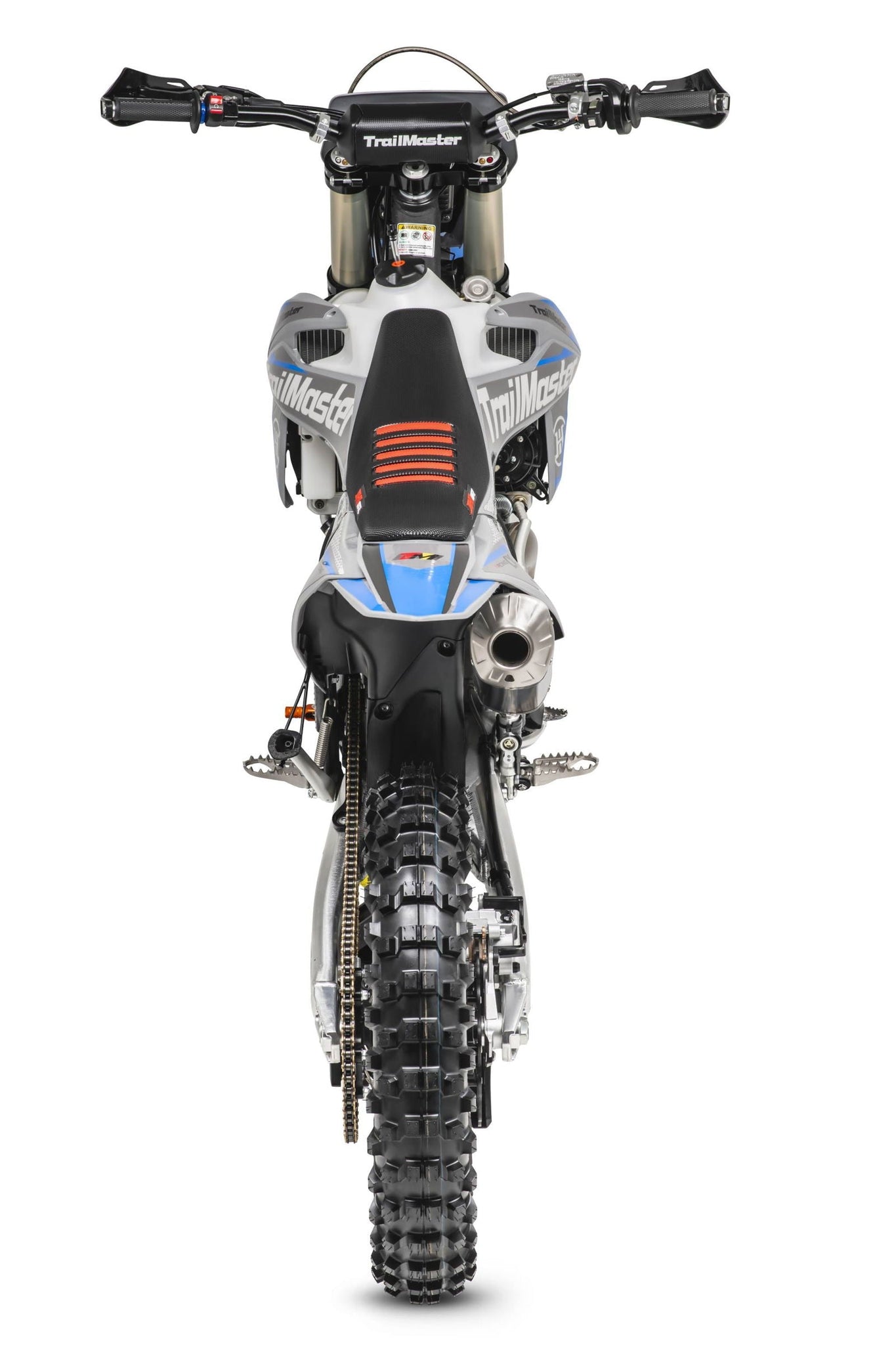

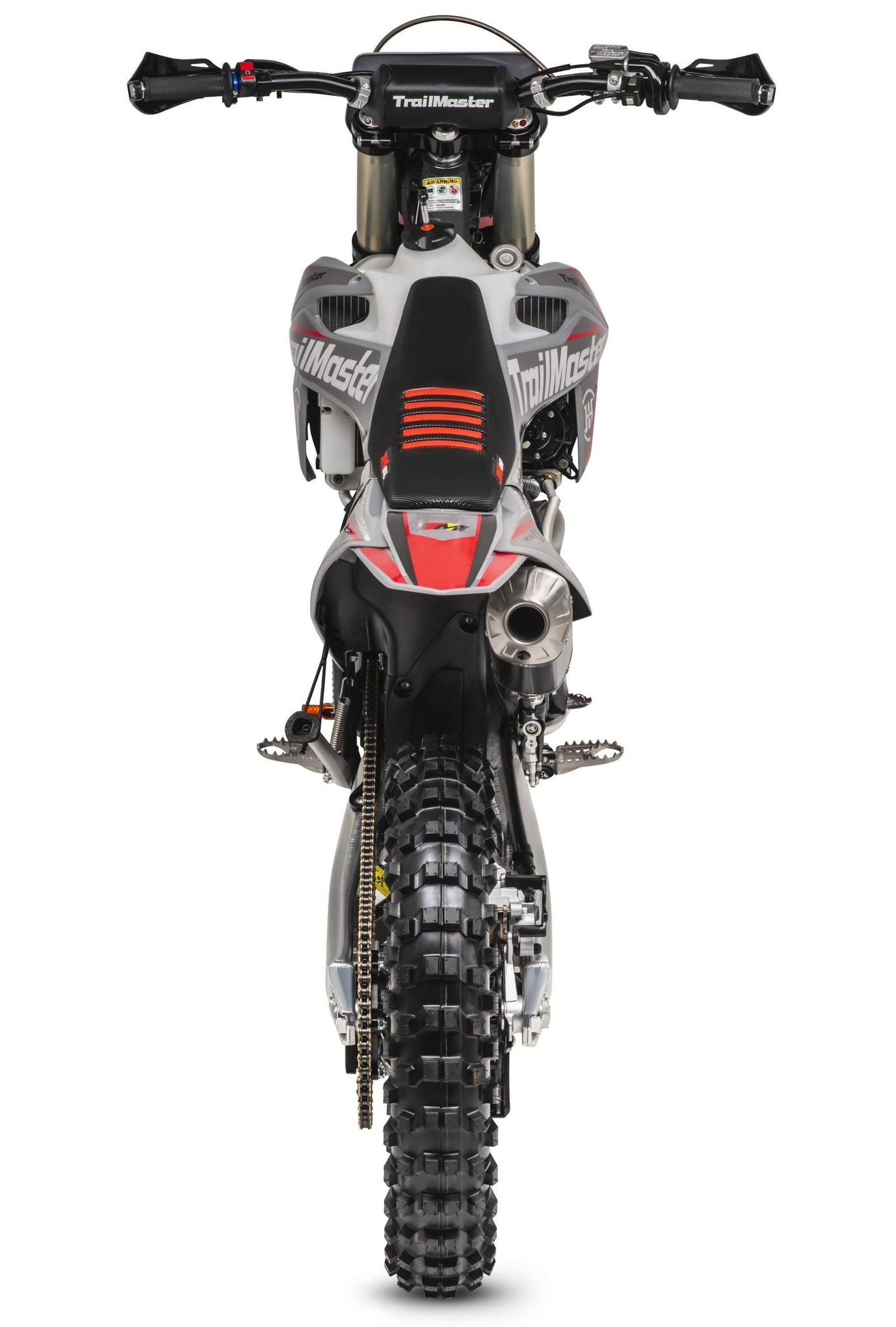

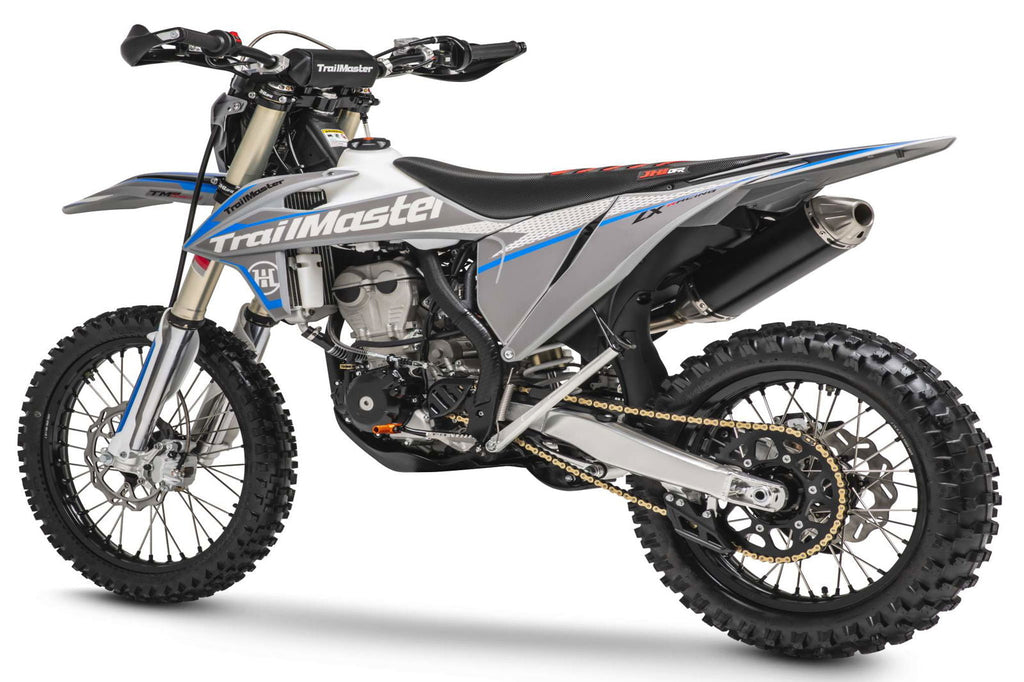

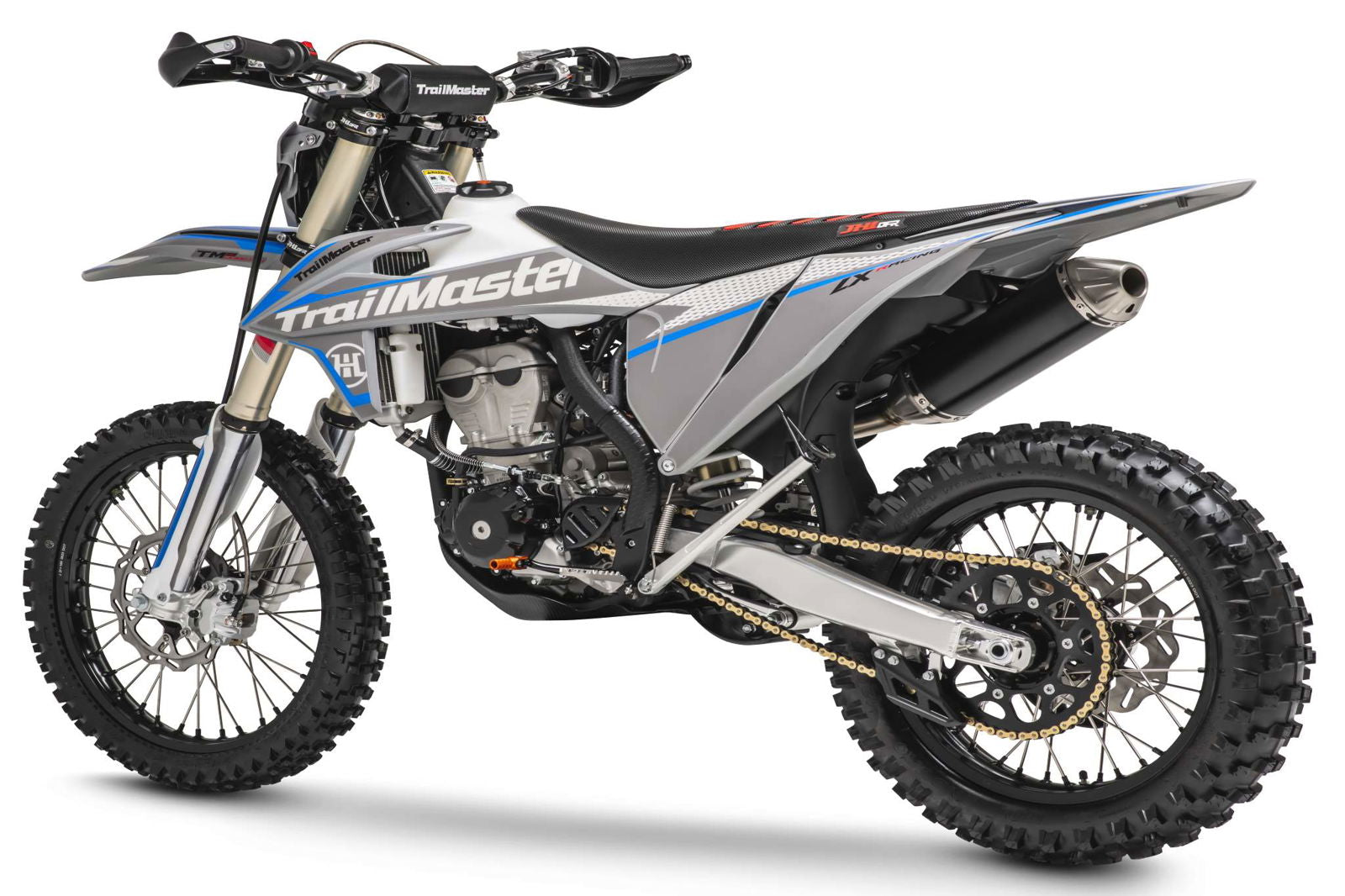

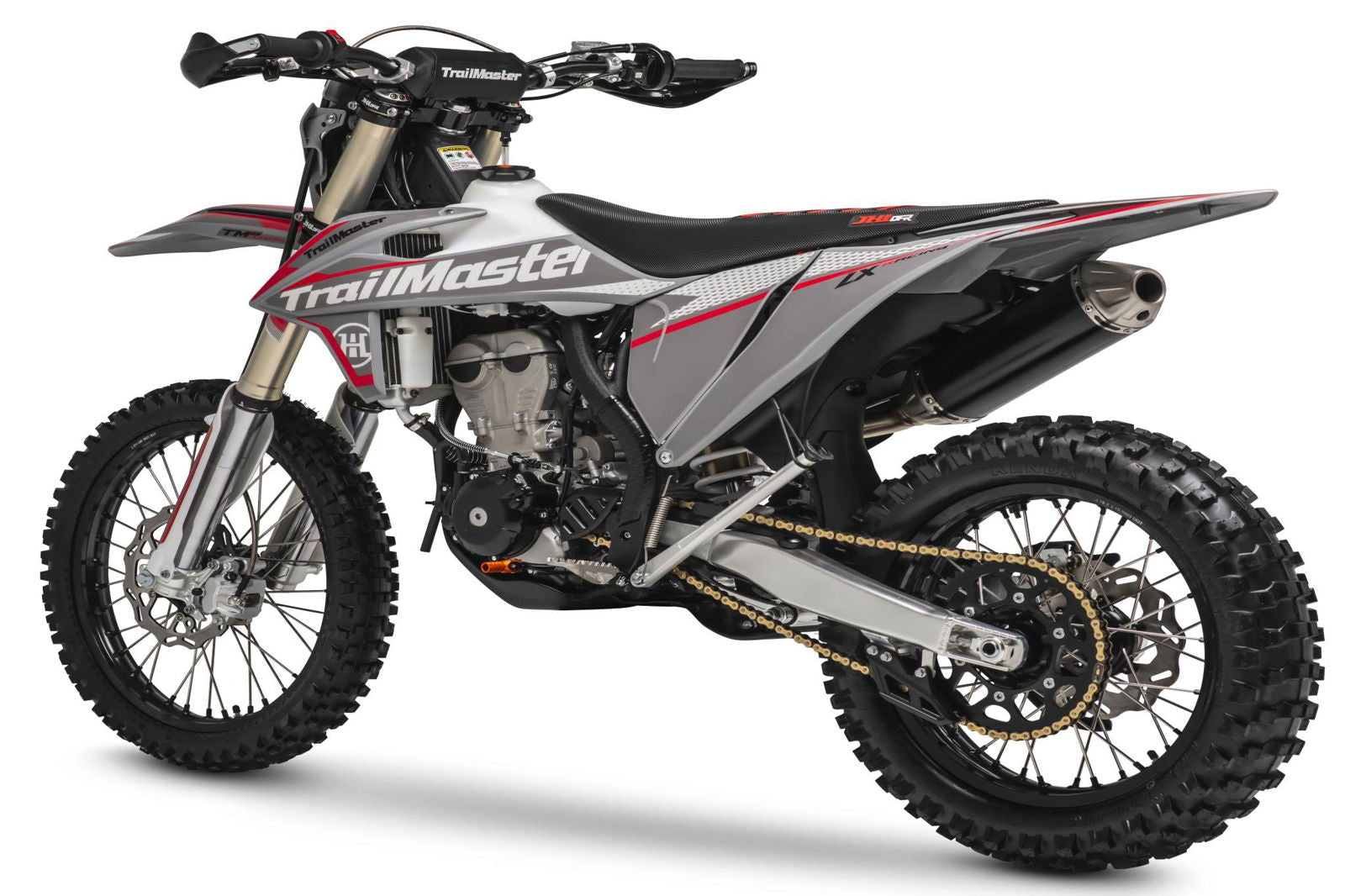

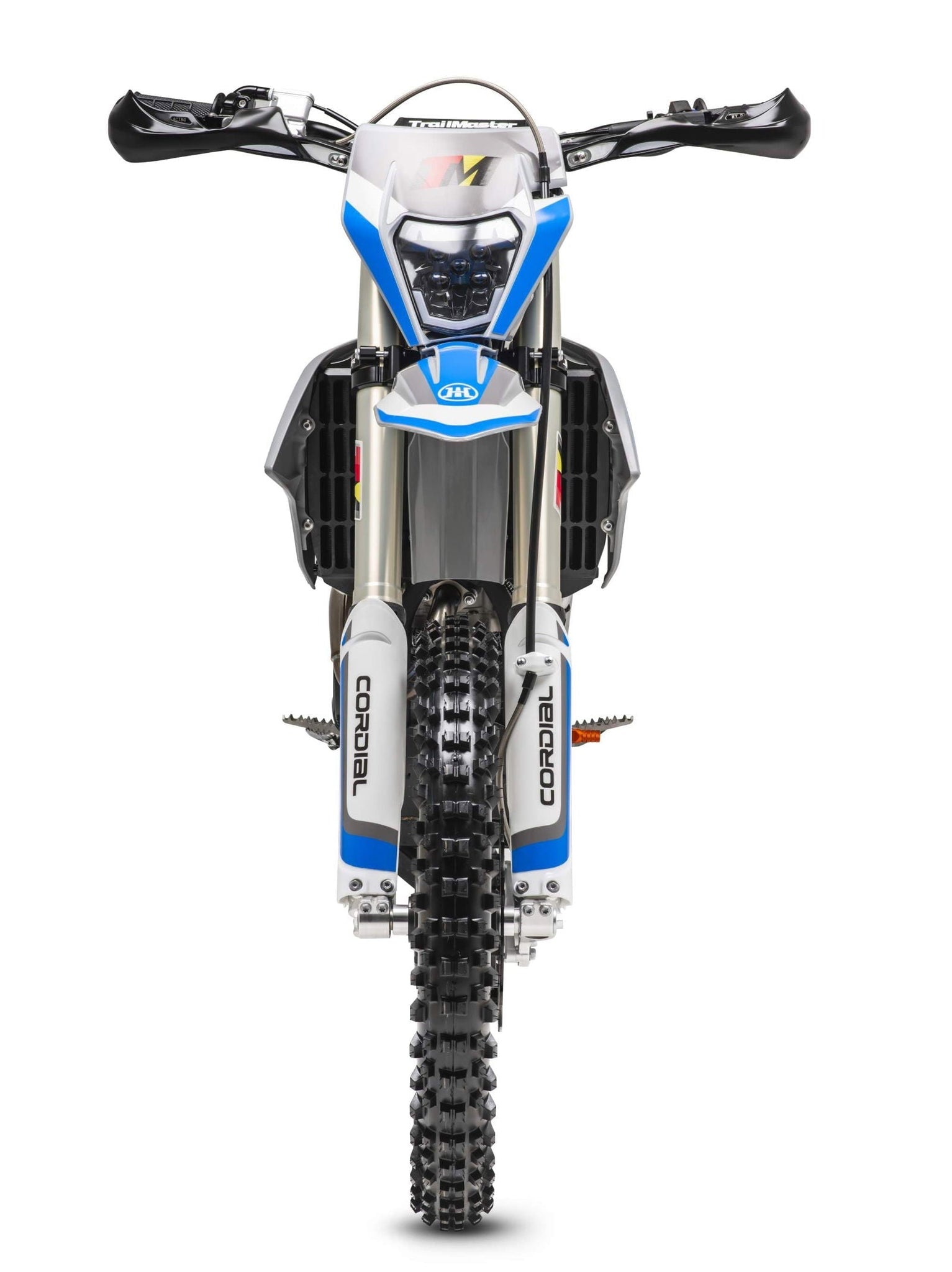

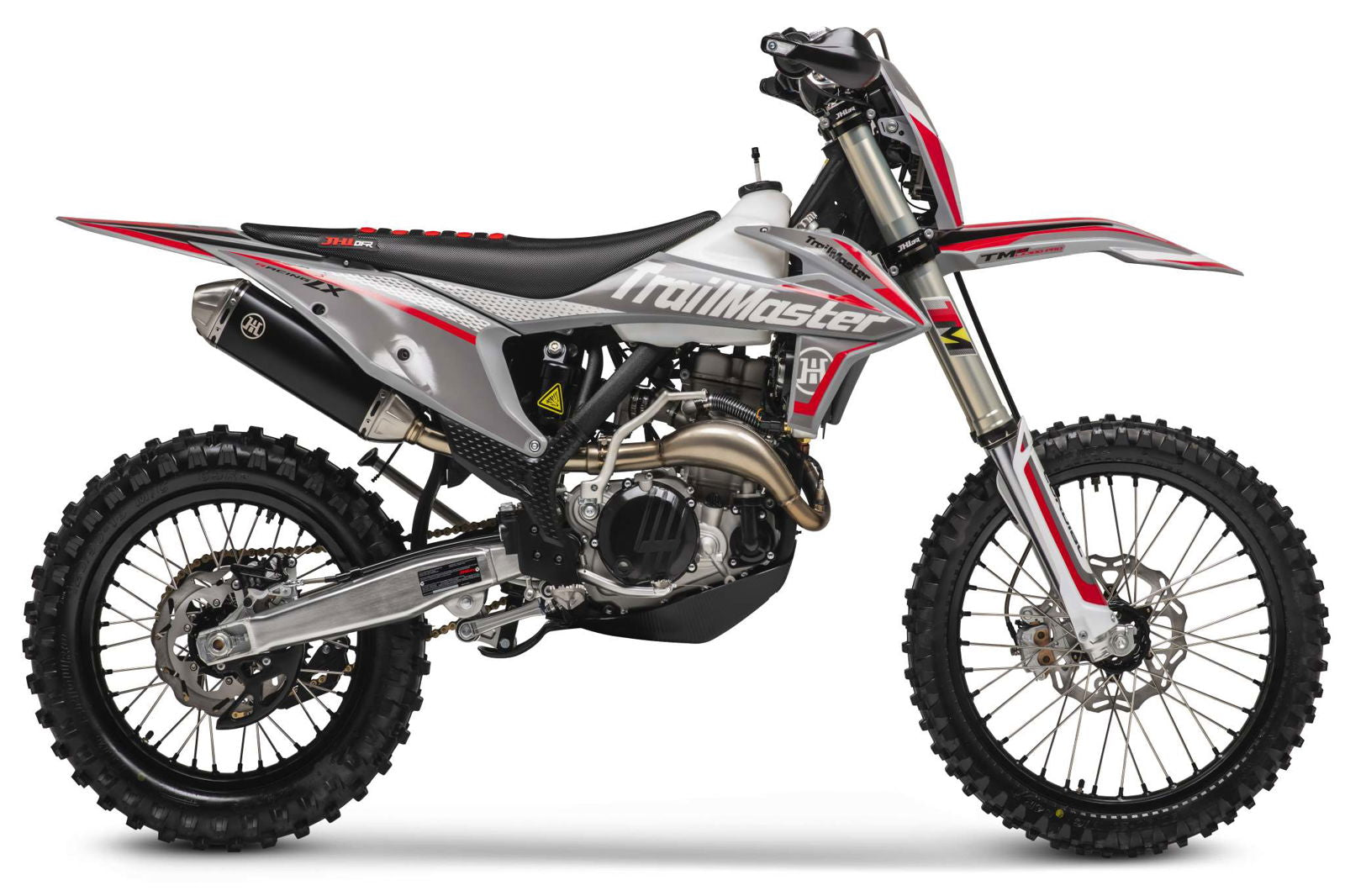

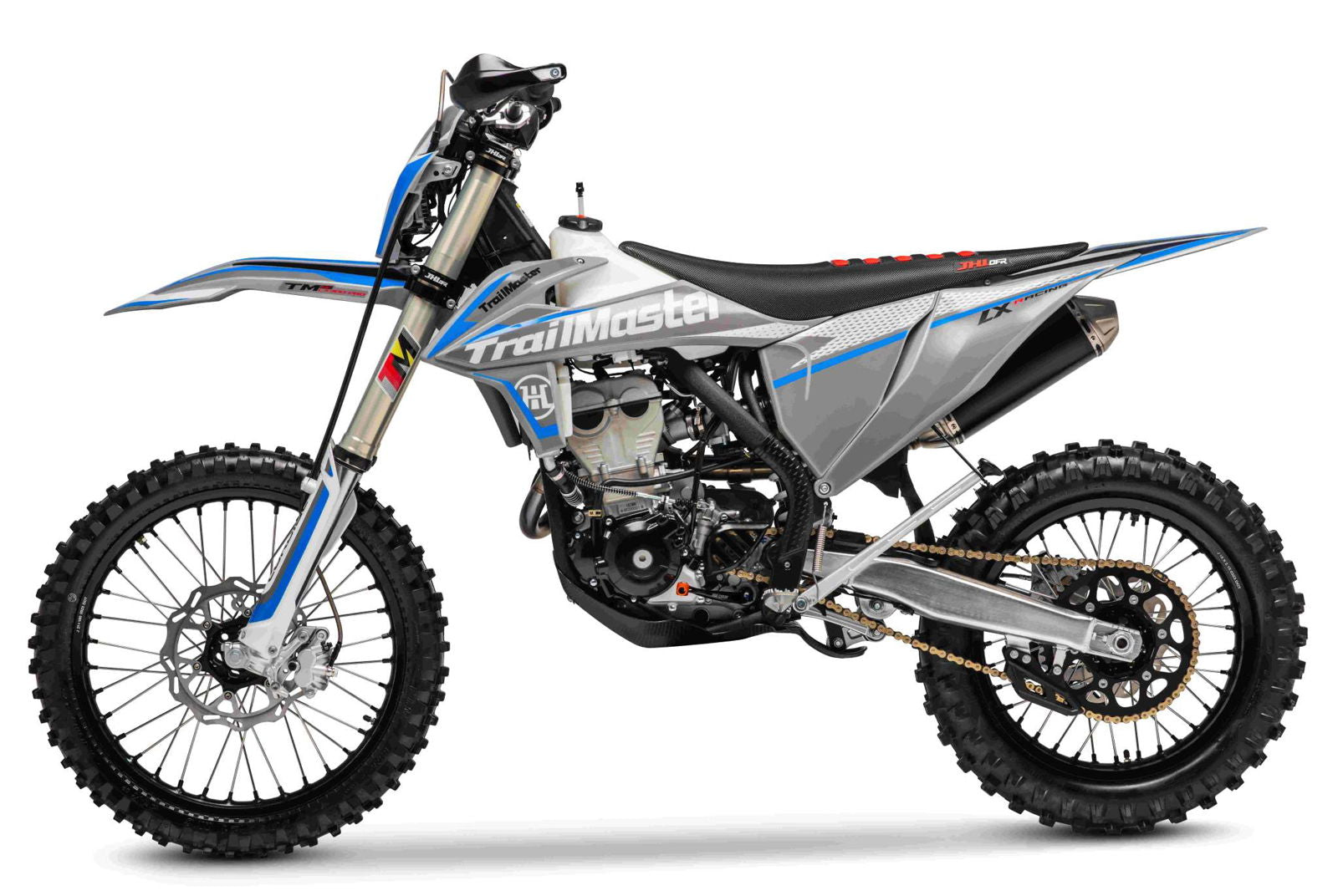

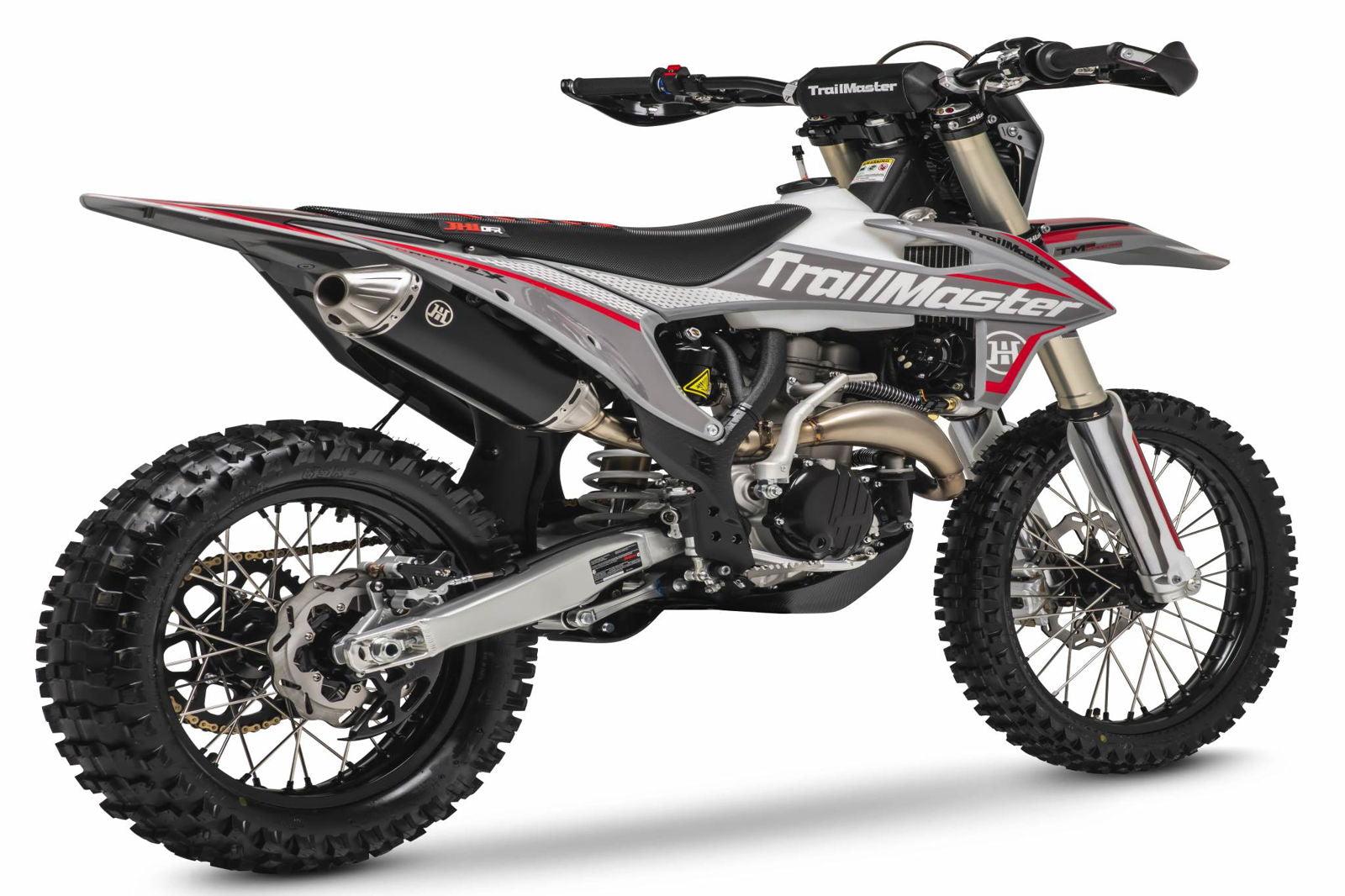

TrailMaster LX300-Pro Dirt Bike, NC300 EFI Racing Engine, Liquid-Cooled, 6-Speed Manual, Dual Disc Brakes, Electric Start with Kick backup, Billet Wheels (21/18)
TM-LX300Pro-Red
Shipping unavailable
Confirm delivery or pickup arrangements with Lee Motorsports. This listing price is not an out-the-door quote.
Shipping and local pickup are separate options. Available fulfillment methods and final charges are confirmed at checkout.
Talk through your options · (417) 461-4289
GET TO KNOW YOUR MACHINE
VEHICLE OVERVIEW
Explore the confirmed specifications and complete catalog information for this vehicle below.
SPECIFICATIONS & DETAILS
Engine and performance 7 details

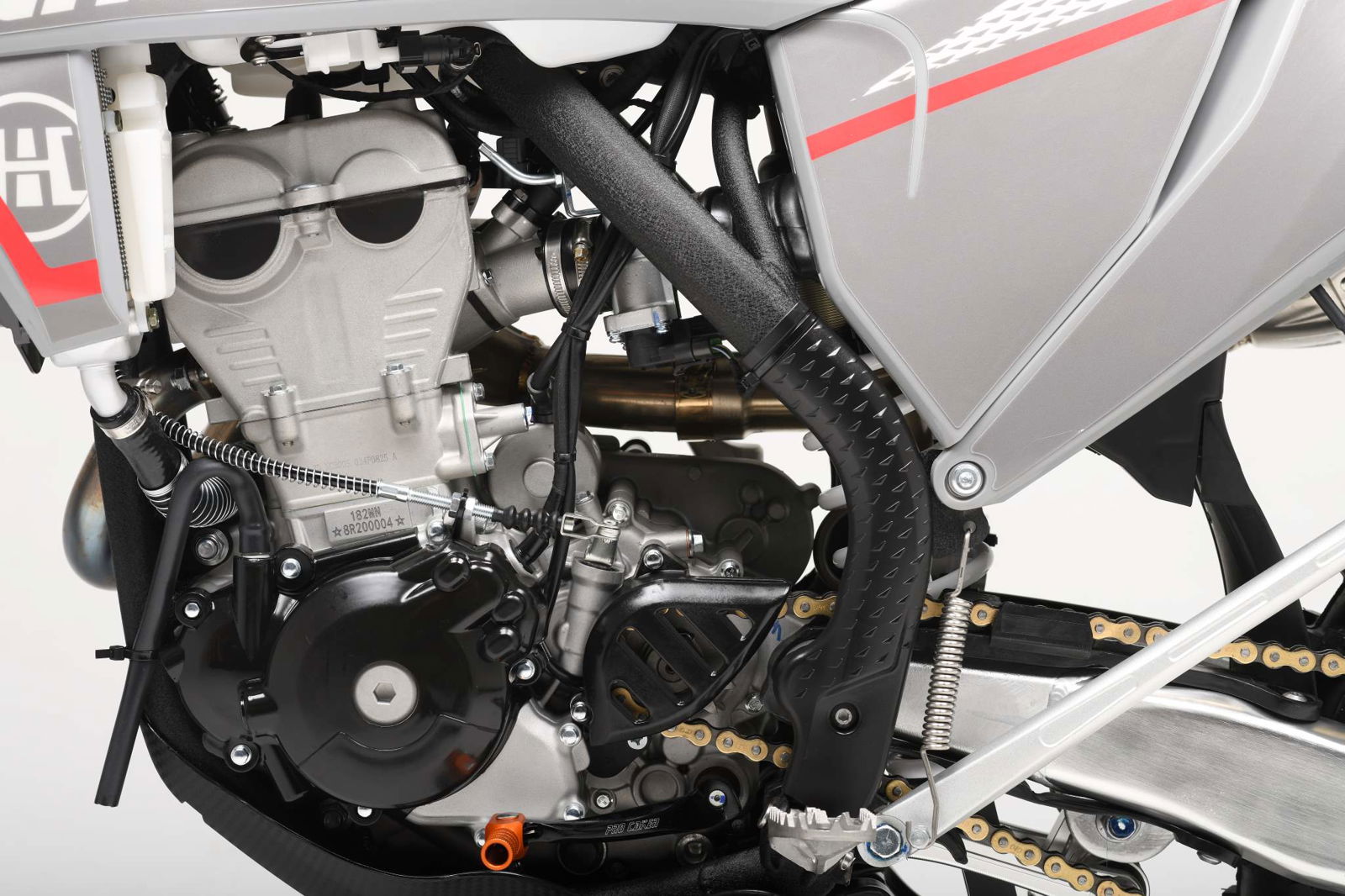

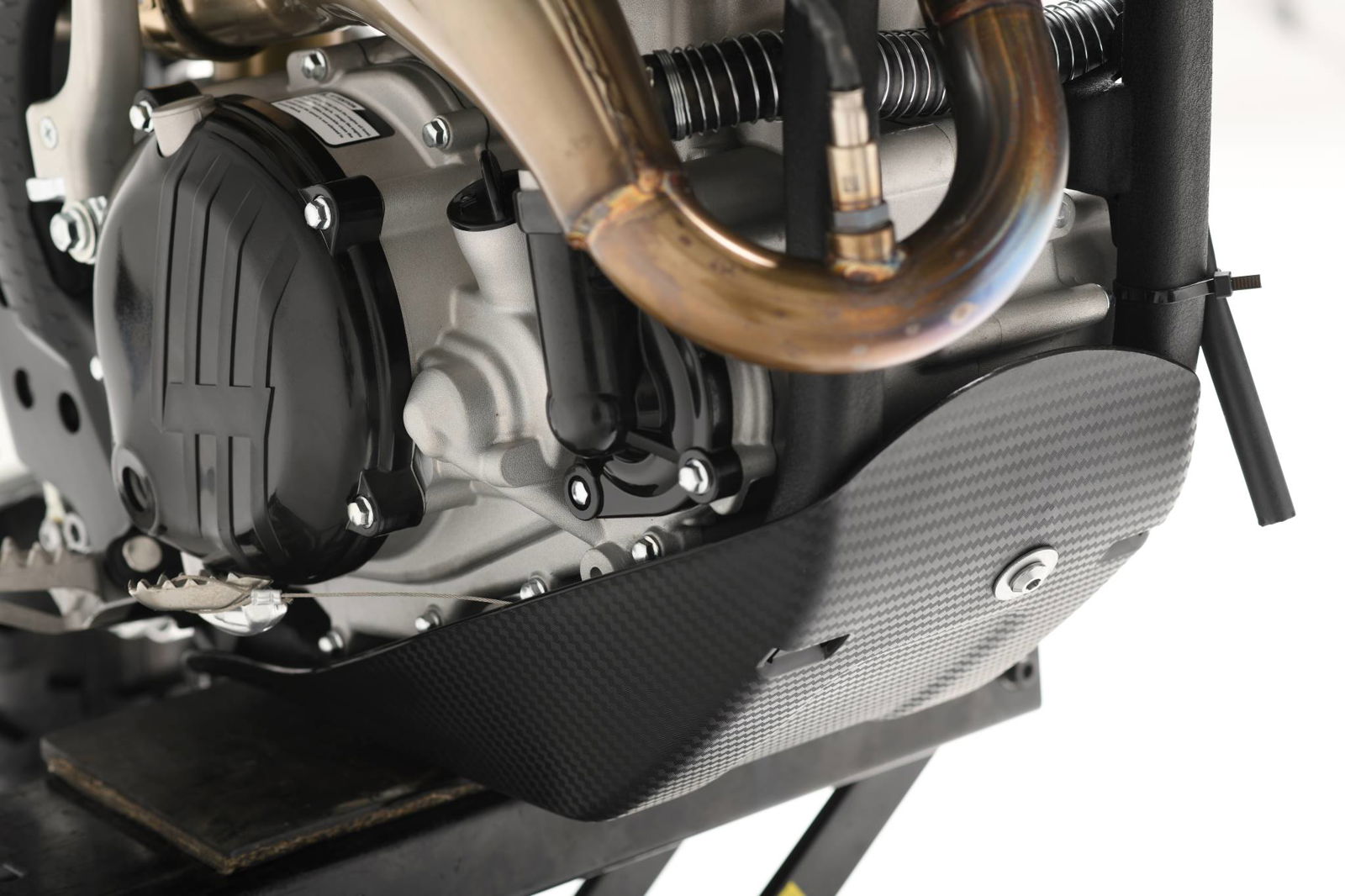

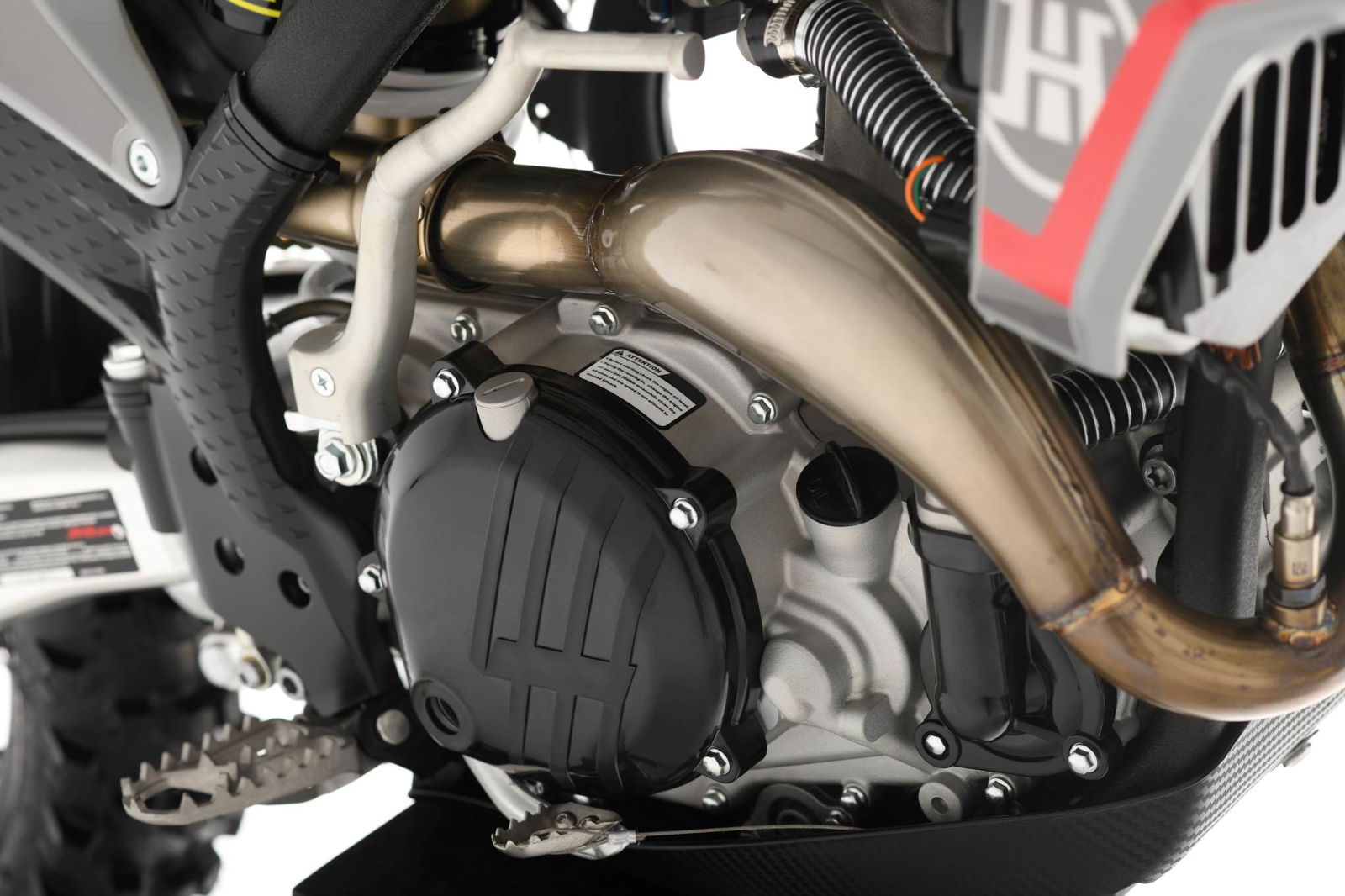

| Engine Type | Zongshen NC300S, Single cylinder, 4-stroke, 4-valve, water-cooling, double overhead camshaft, with balance shaft |
|---|---|
| Displacement (cc) | 283 |
| Max Power | 23 (±5%) / 9000 (±5%) |
| Max Torque | 25 (±5%) / 7000 (±5%) |
| Compression Ratio | 11.6 |
| Fuel Supply | EFI |
| Min. Fuel Consumption | ≤354 g/kw.h |
Transmission and drivetrain 3 details

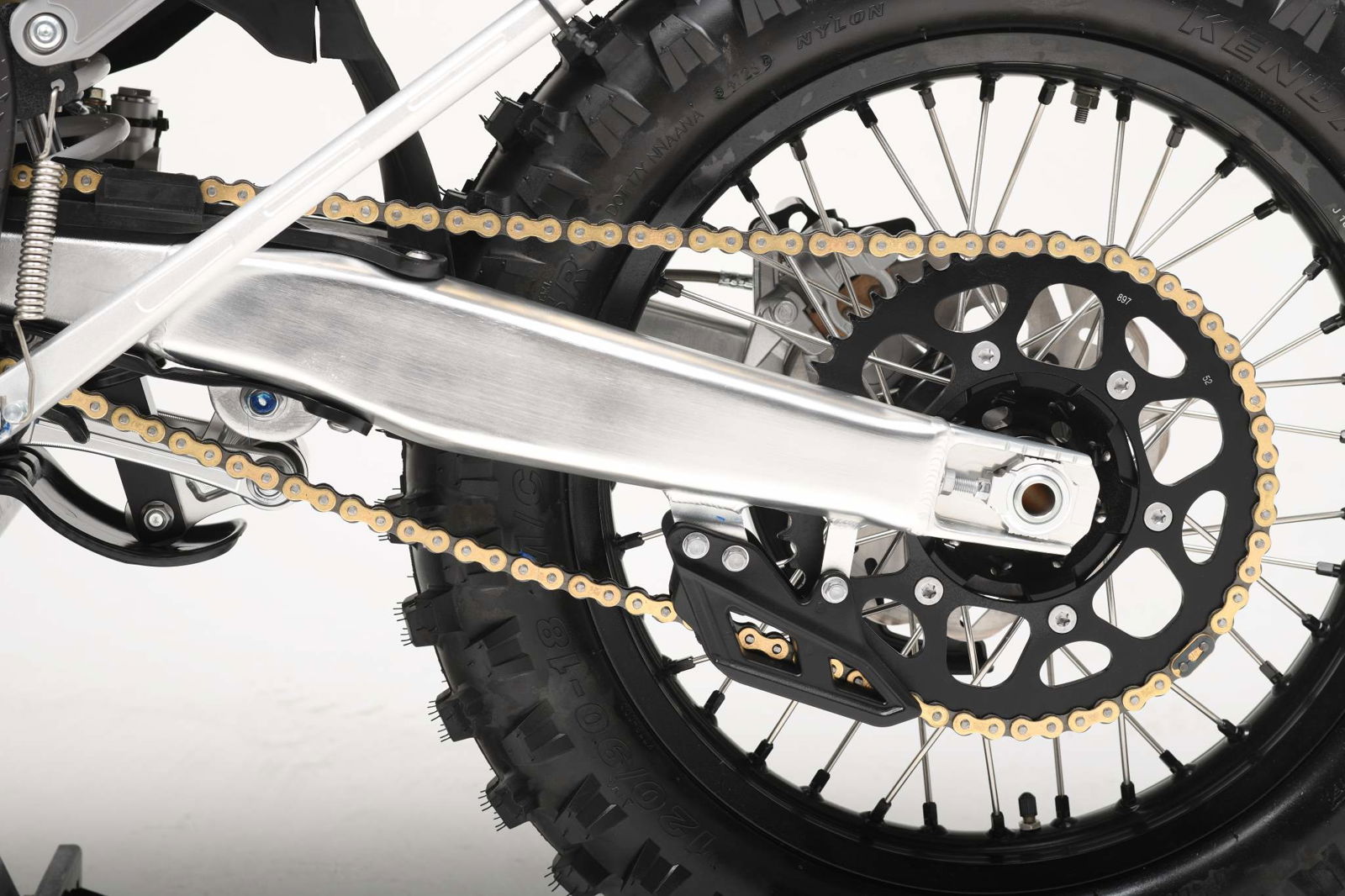

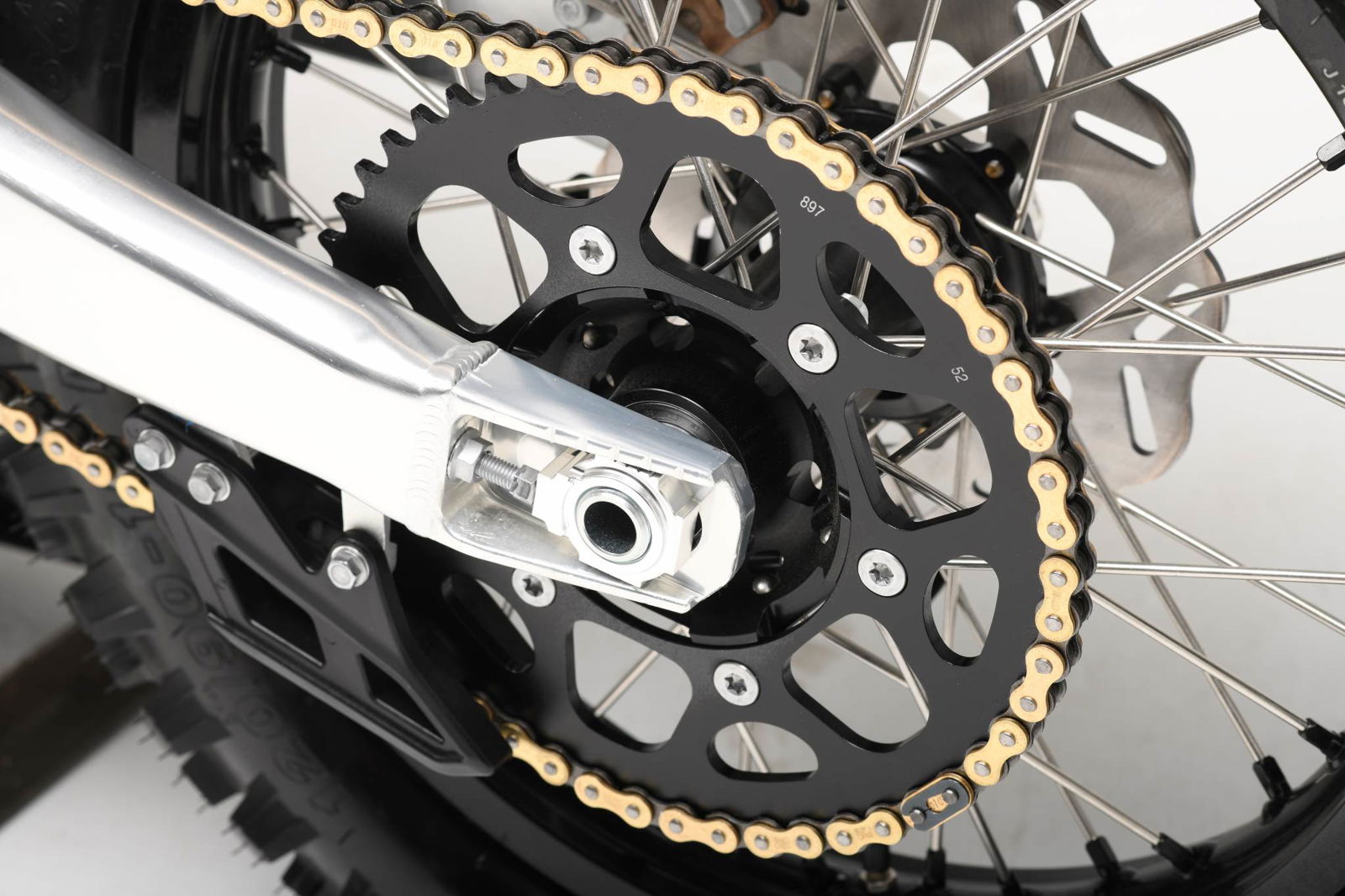

| Transmission | Chain Drive |
|---|---|

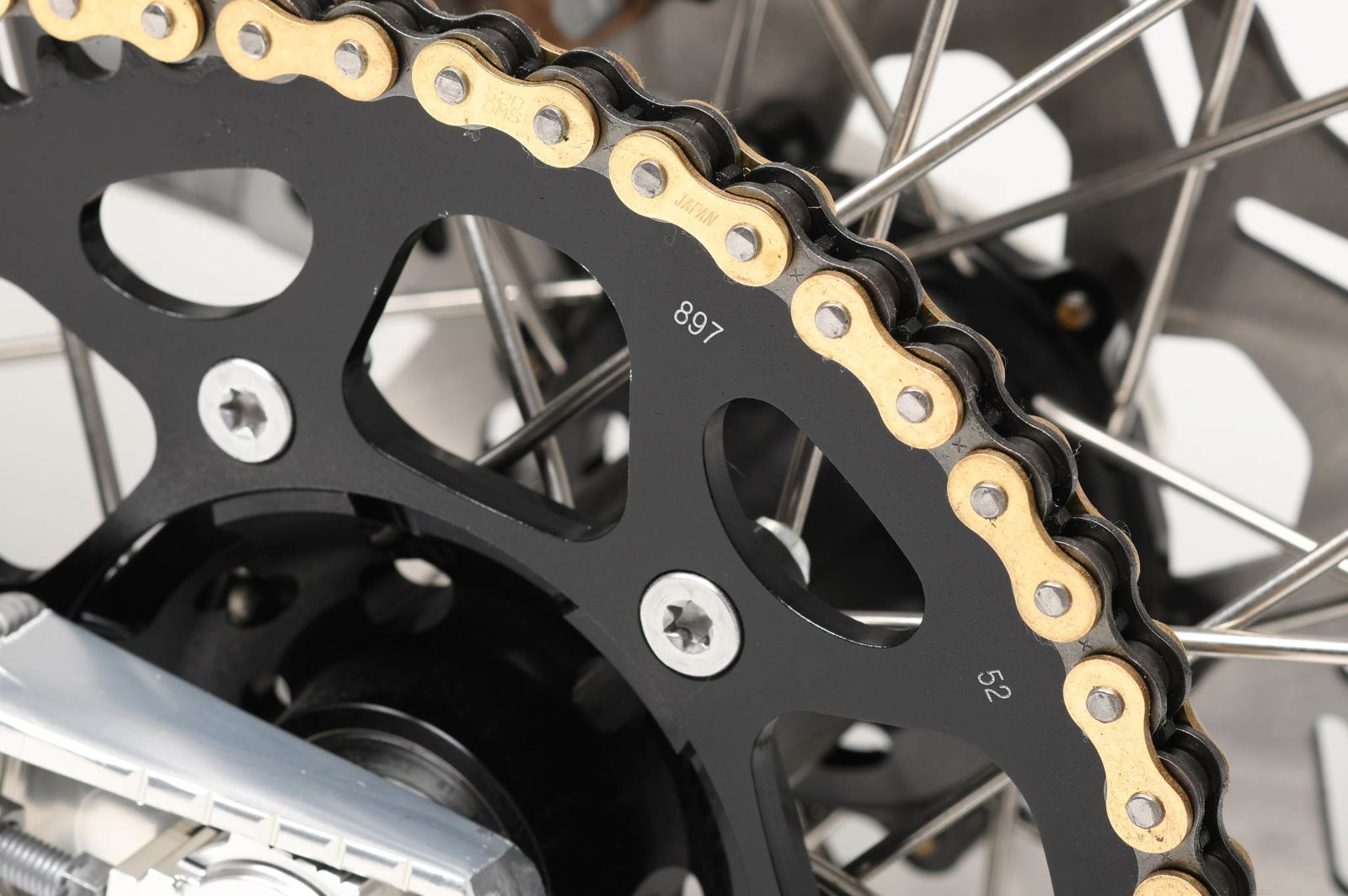

| Chain | DID |
| Sprocket | Alloy |
Dimensions and weight 4 details
| Overall Size (L x W x H) | 2190*810*1290 mm / 86.28*31.91*50.82 Inch |
|---|---|
| Wheelbase | 1500 mm / 59.1 Inch |
| Seat Height | 950 mm / 37.43 Inch |
| Ground Clearance | 300 mm / 11.82 Inch |
Suspension and brakes 5 details

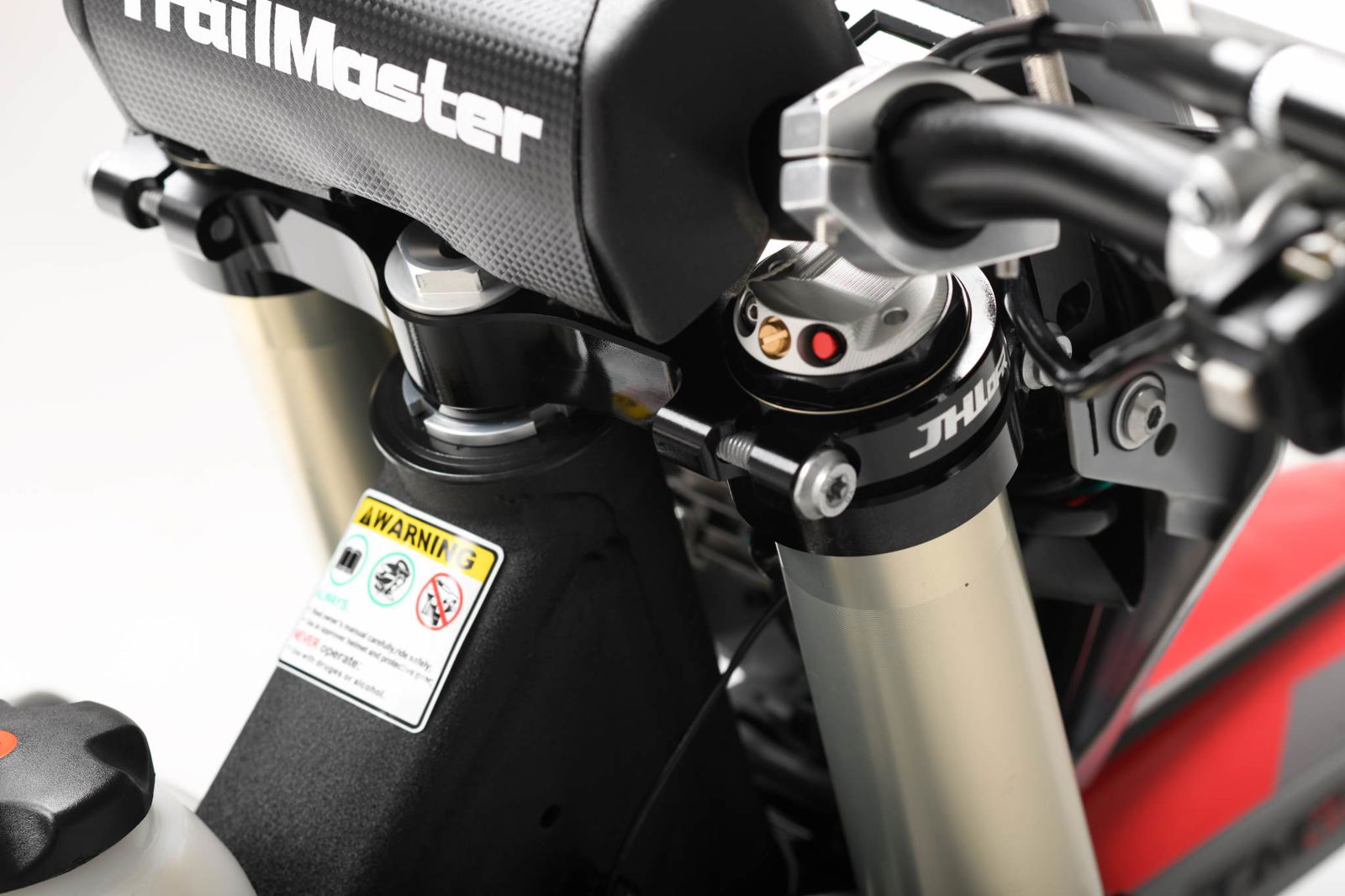

| Front shock | Front dual chamber dual adjustable inverted shock absorbers |
|---|---|

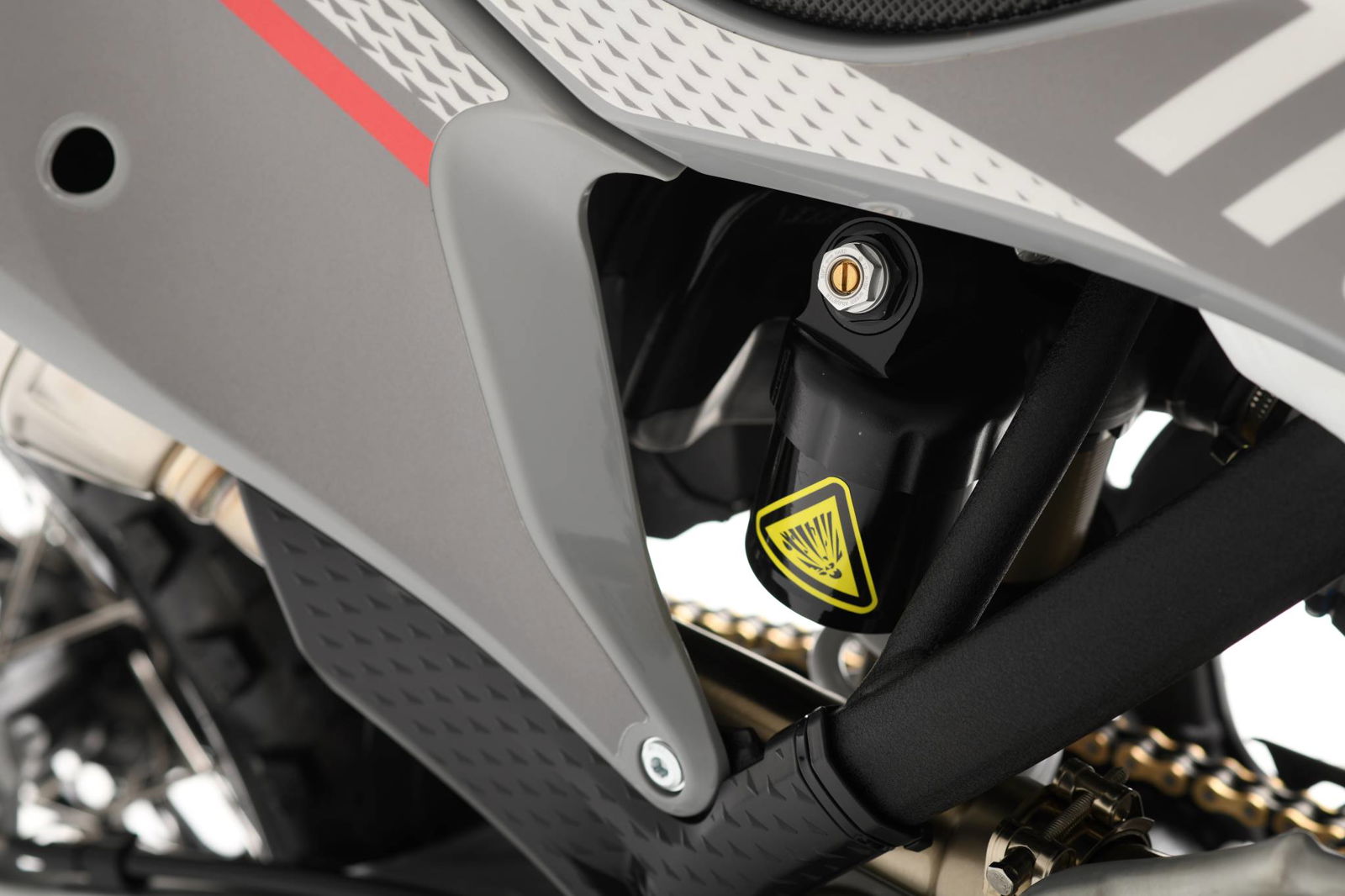

| Rear Shock | Rear triple adjustable shock absorber |

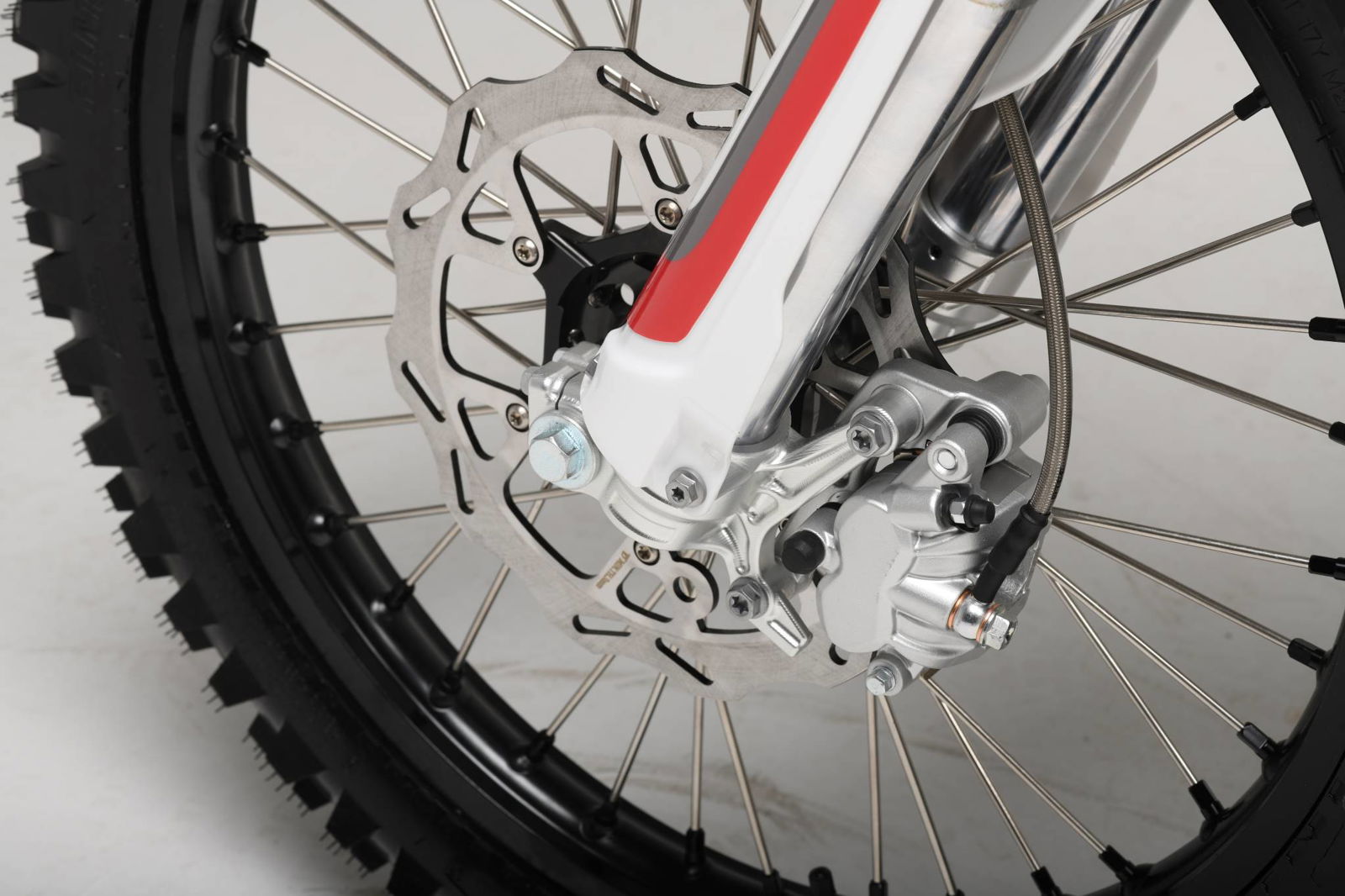

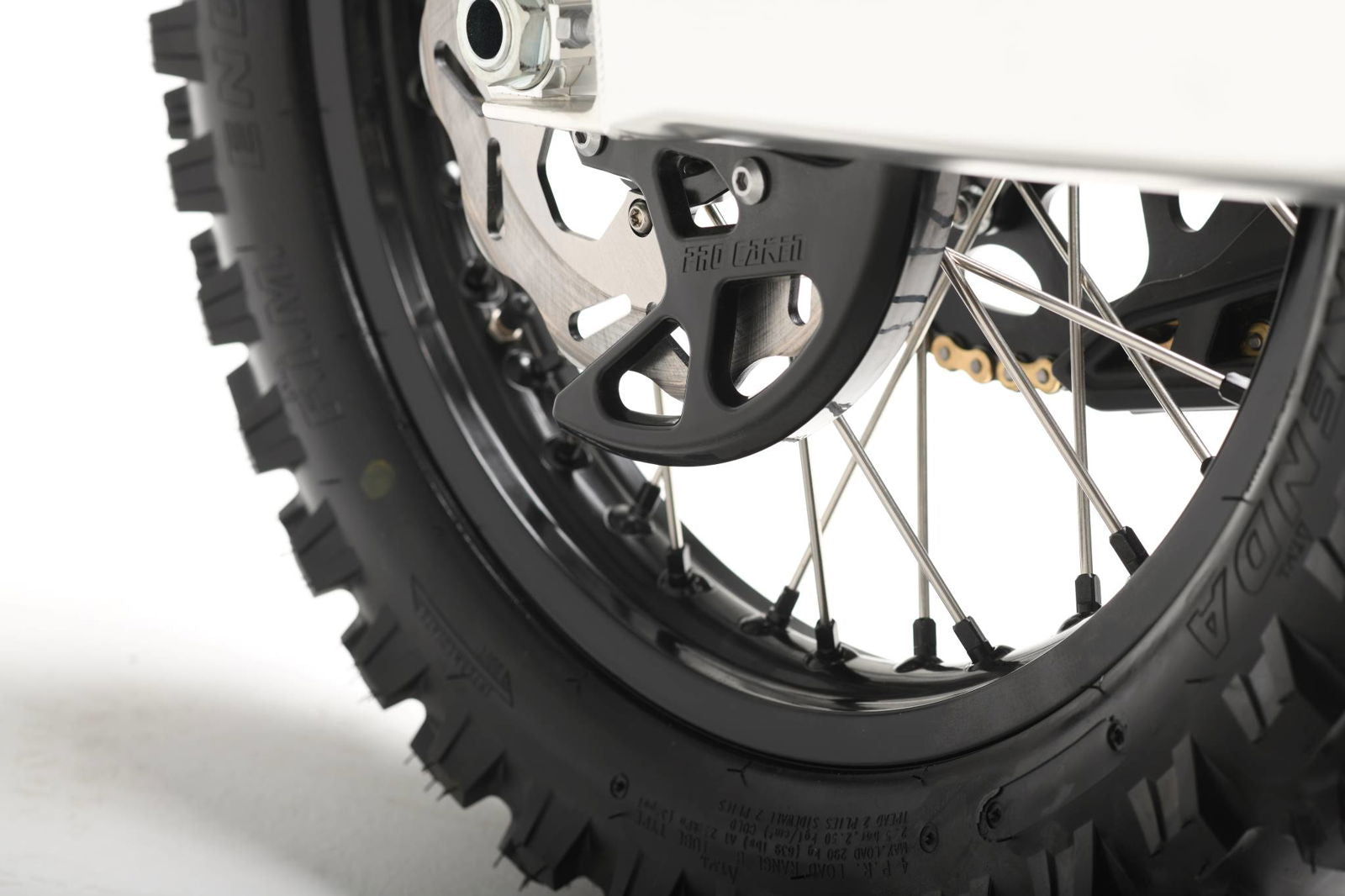

| Front Brake | Disc |

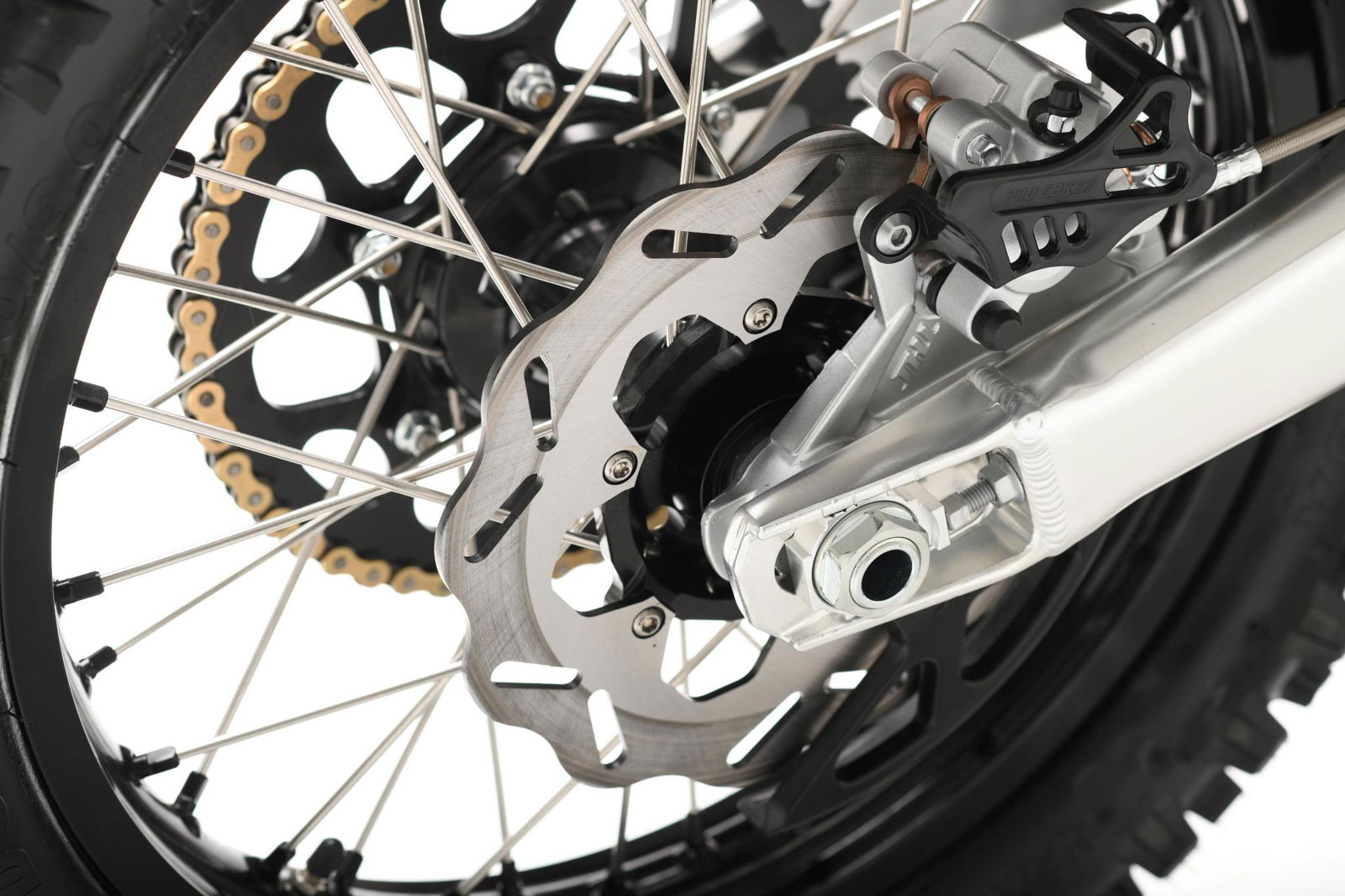

| Rear Brake | Disc |
| Brake | GG grade |
Tires and wheels 2 details
| Wheels | GLM 7-series aluminum alloy, CNC hubs |
|---|---|

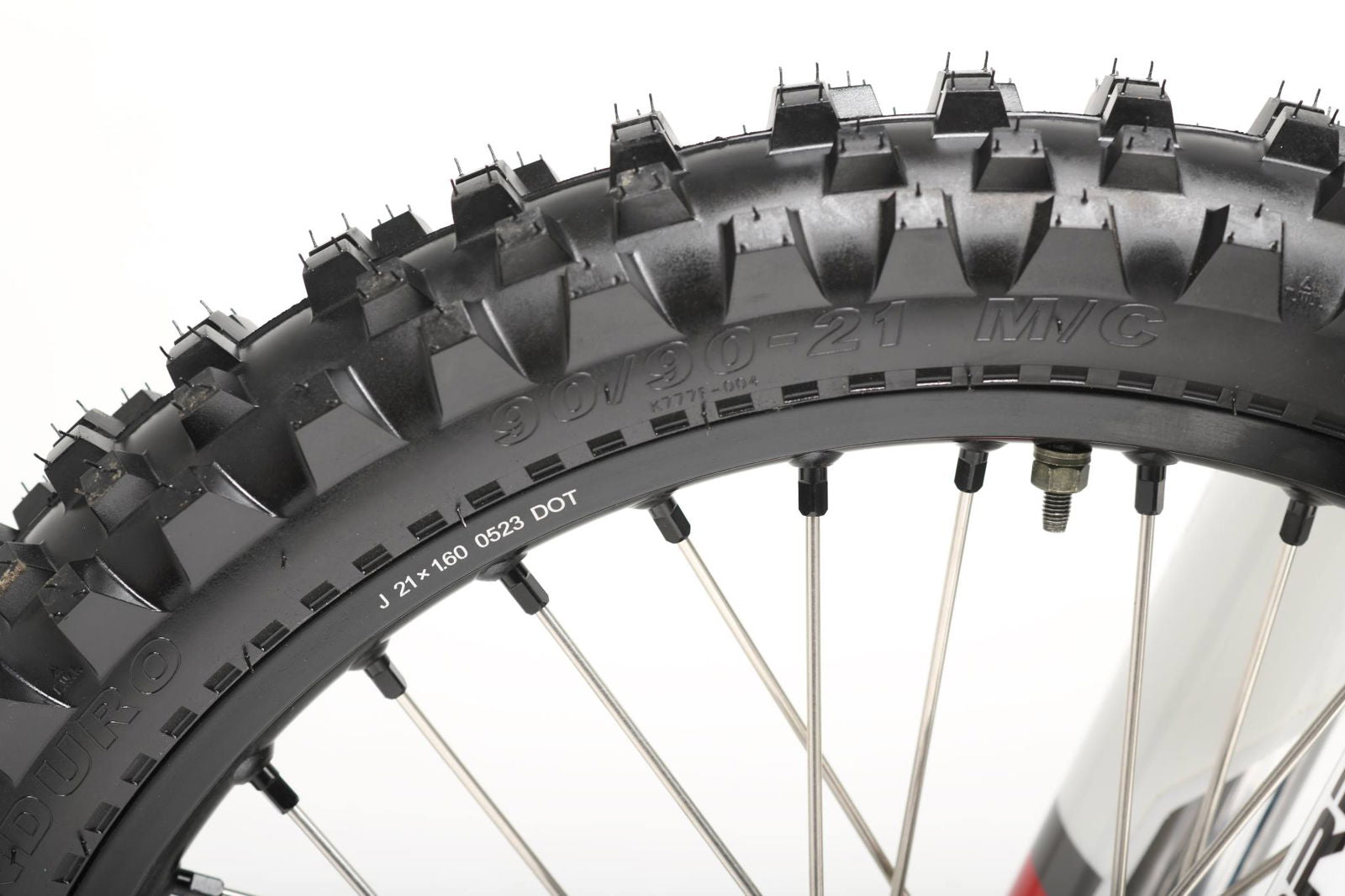

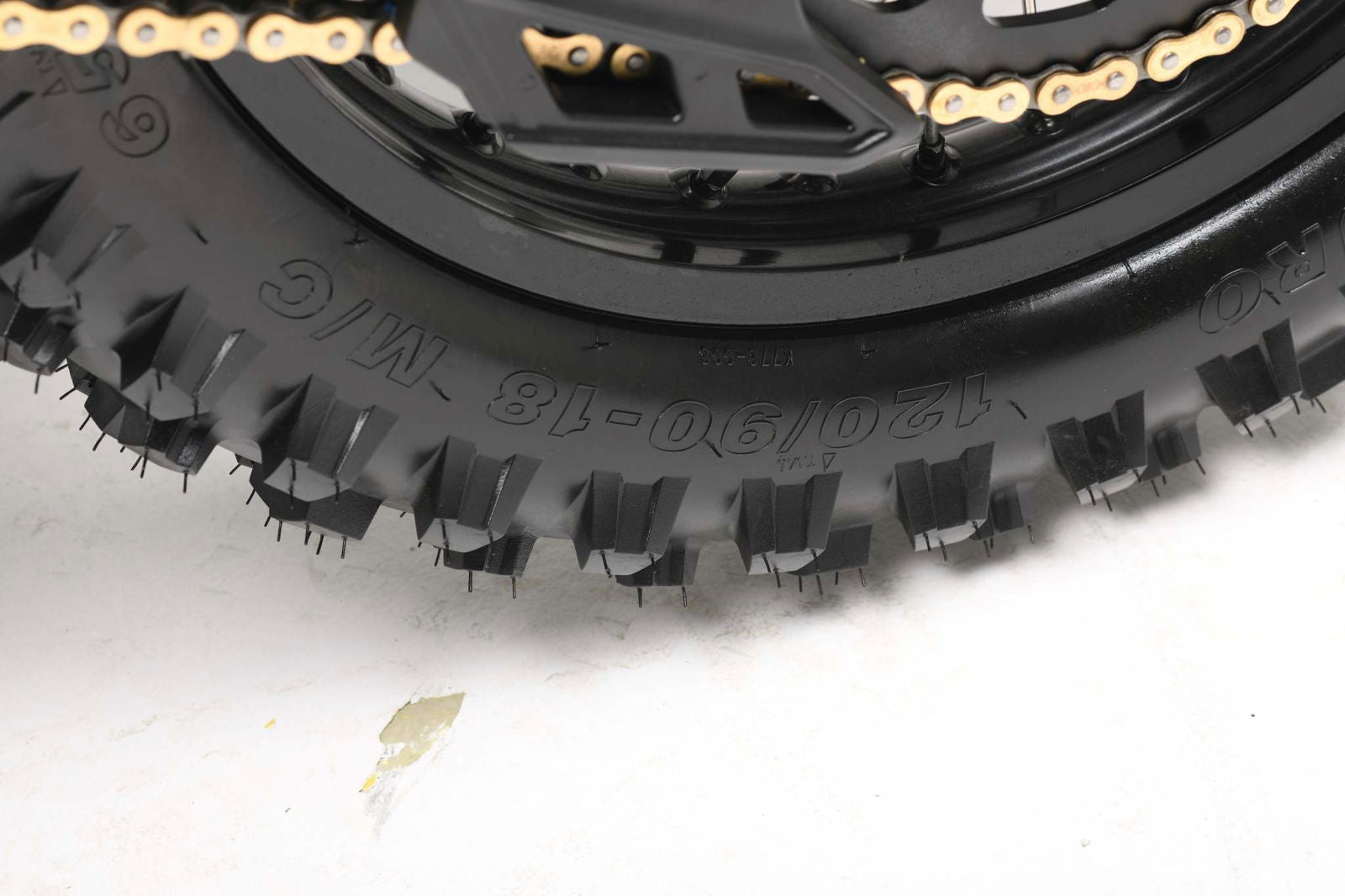

| Tires | KENDA tire 21"/18" |
Capacity and seating 1 details

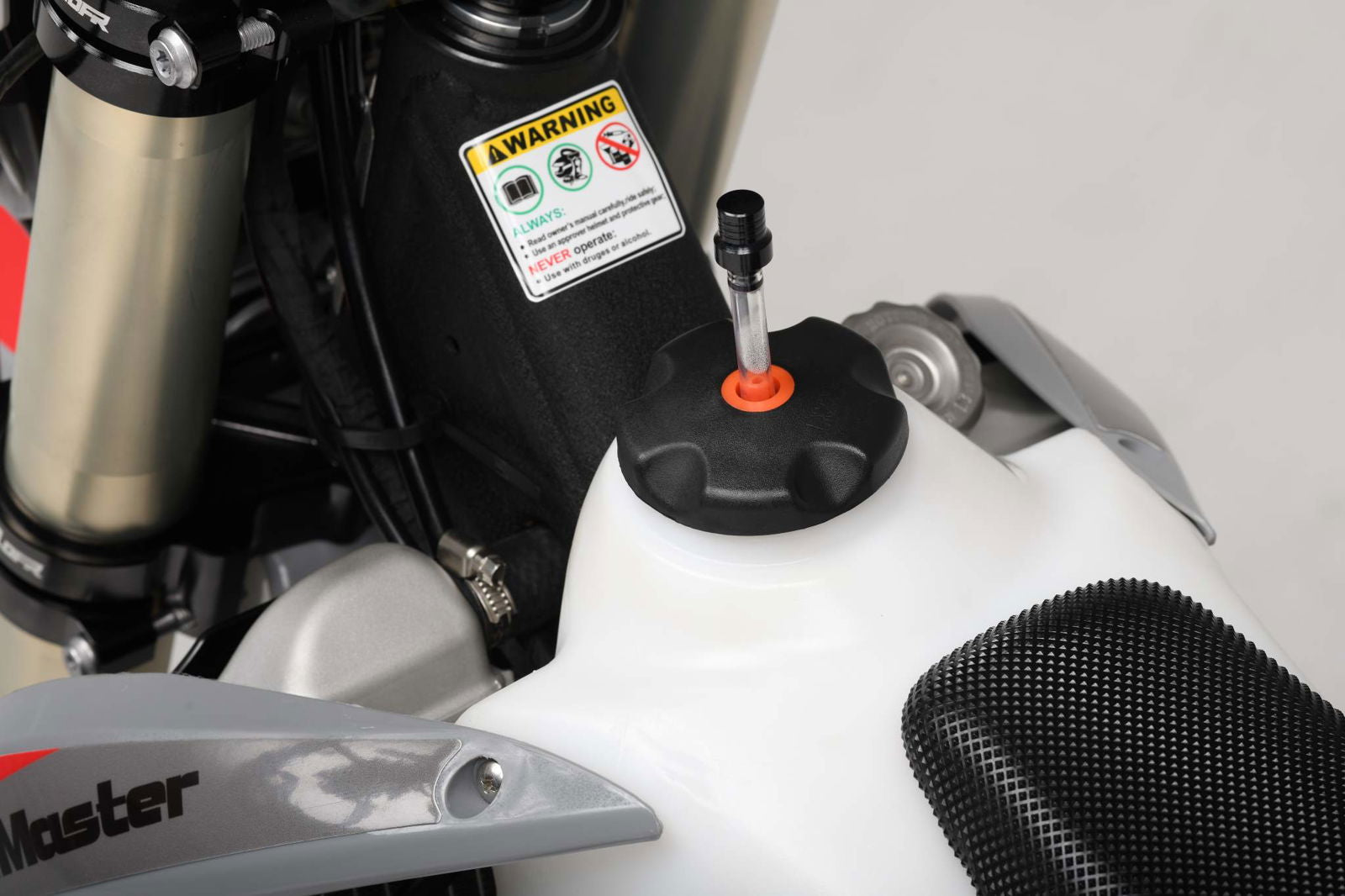

| Fuel Capacity | 7 L / 1.85 Gal |
|---|
Features and included equipment 1 details
| Frame | 30 CrMo steel, high strength |
|---|
Shipping, assembly, and delivery 1 details
| Packing Size | 2200*460*1280 mm / 86.68*18.12*50.43 Inch |
|---|
Additional catalog details 7 details
| Start Type | Electric / Kick Start |
|---|---|
| Minimum turning radius | 2500 mm |
| Lubricant Type | SJ 10W-40 |

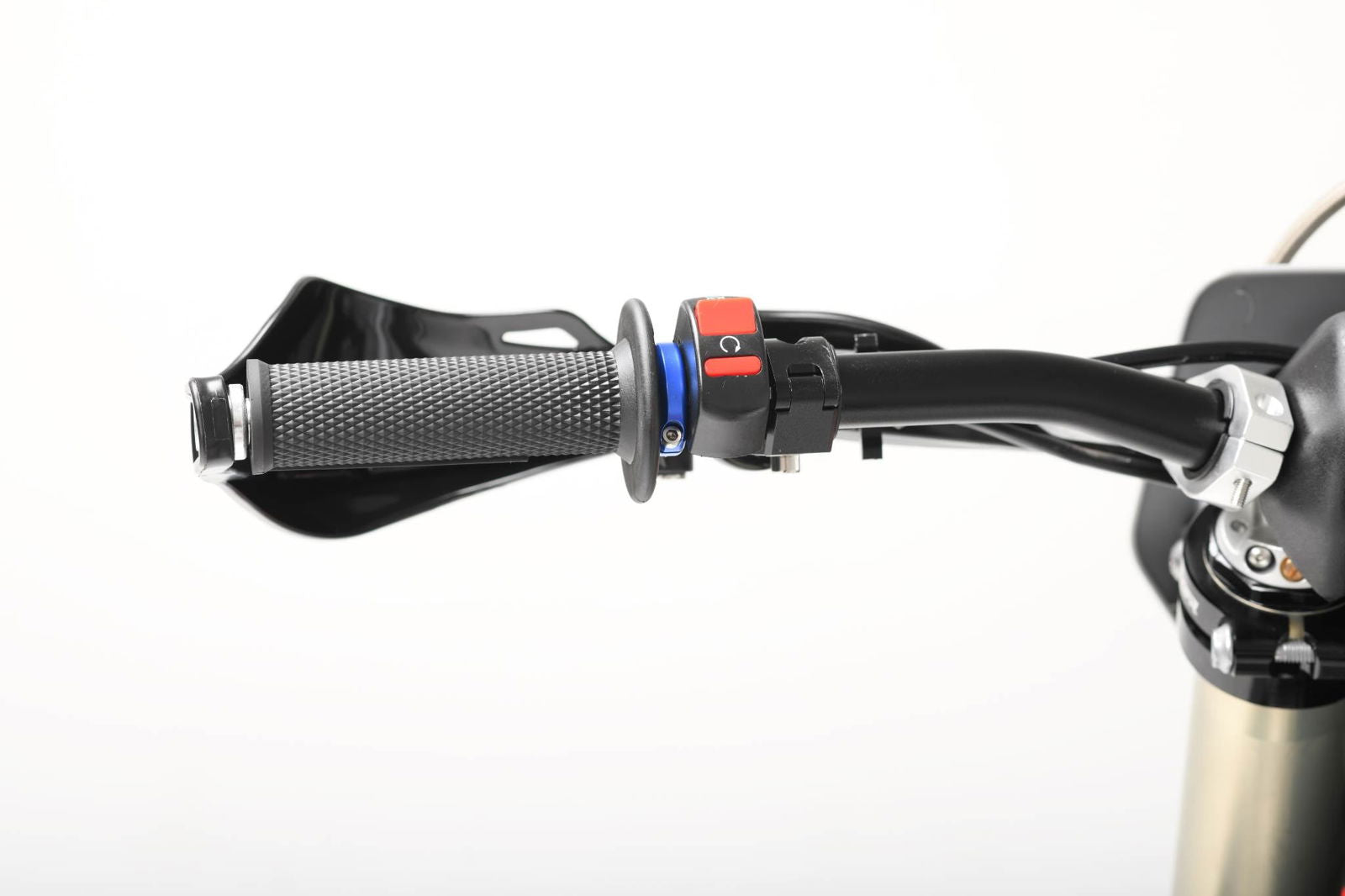

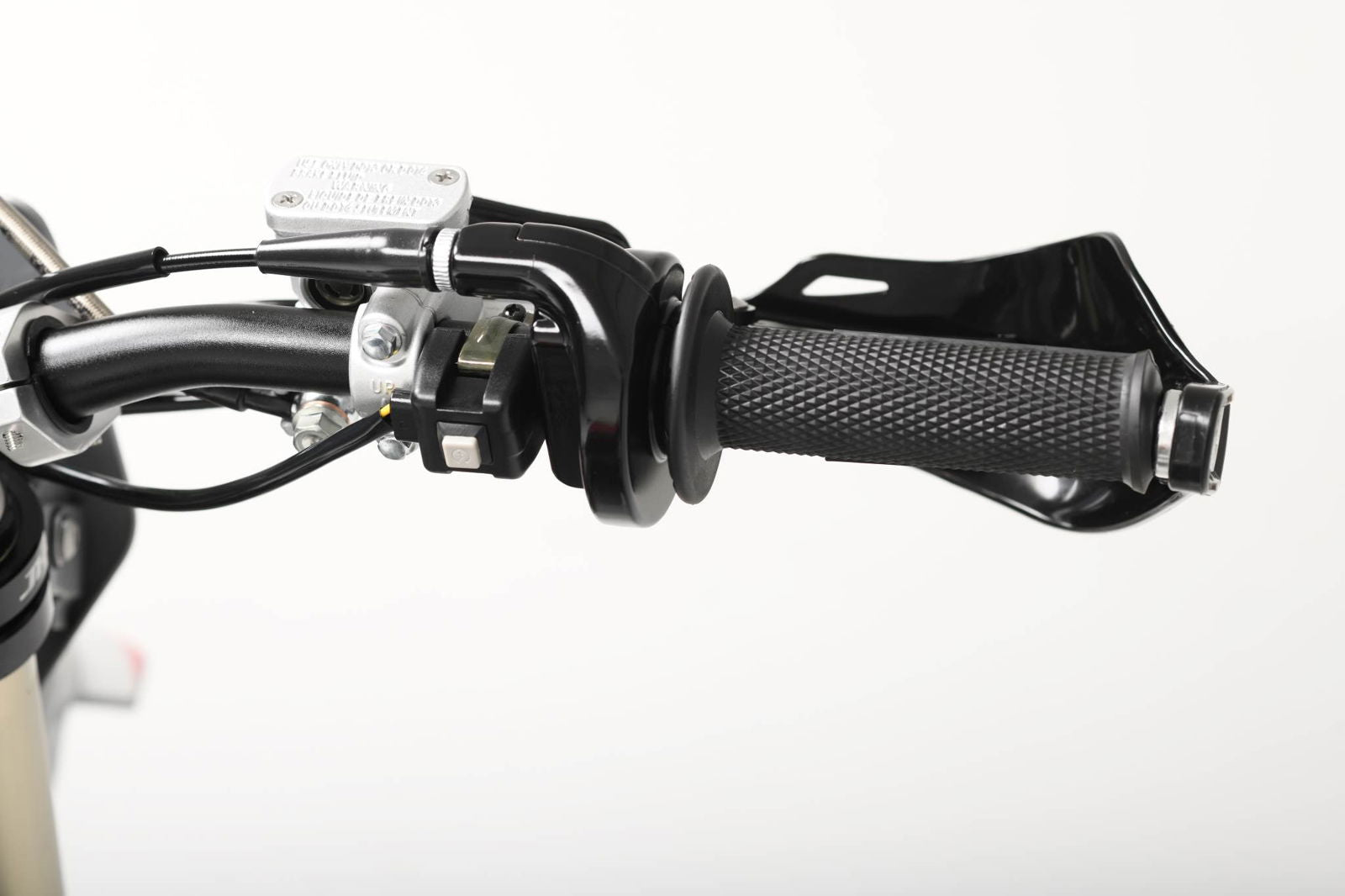

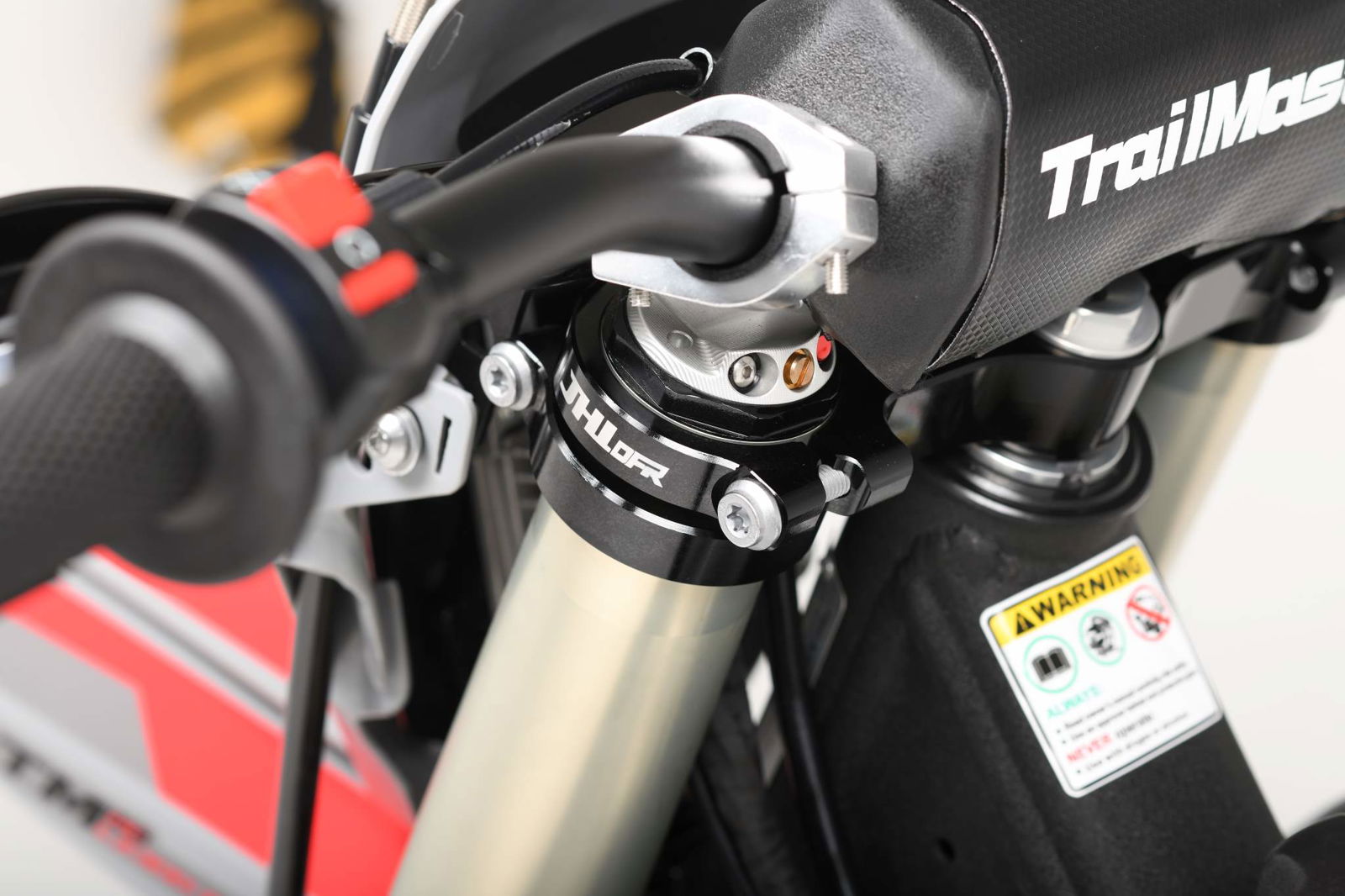

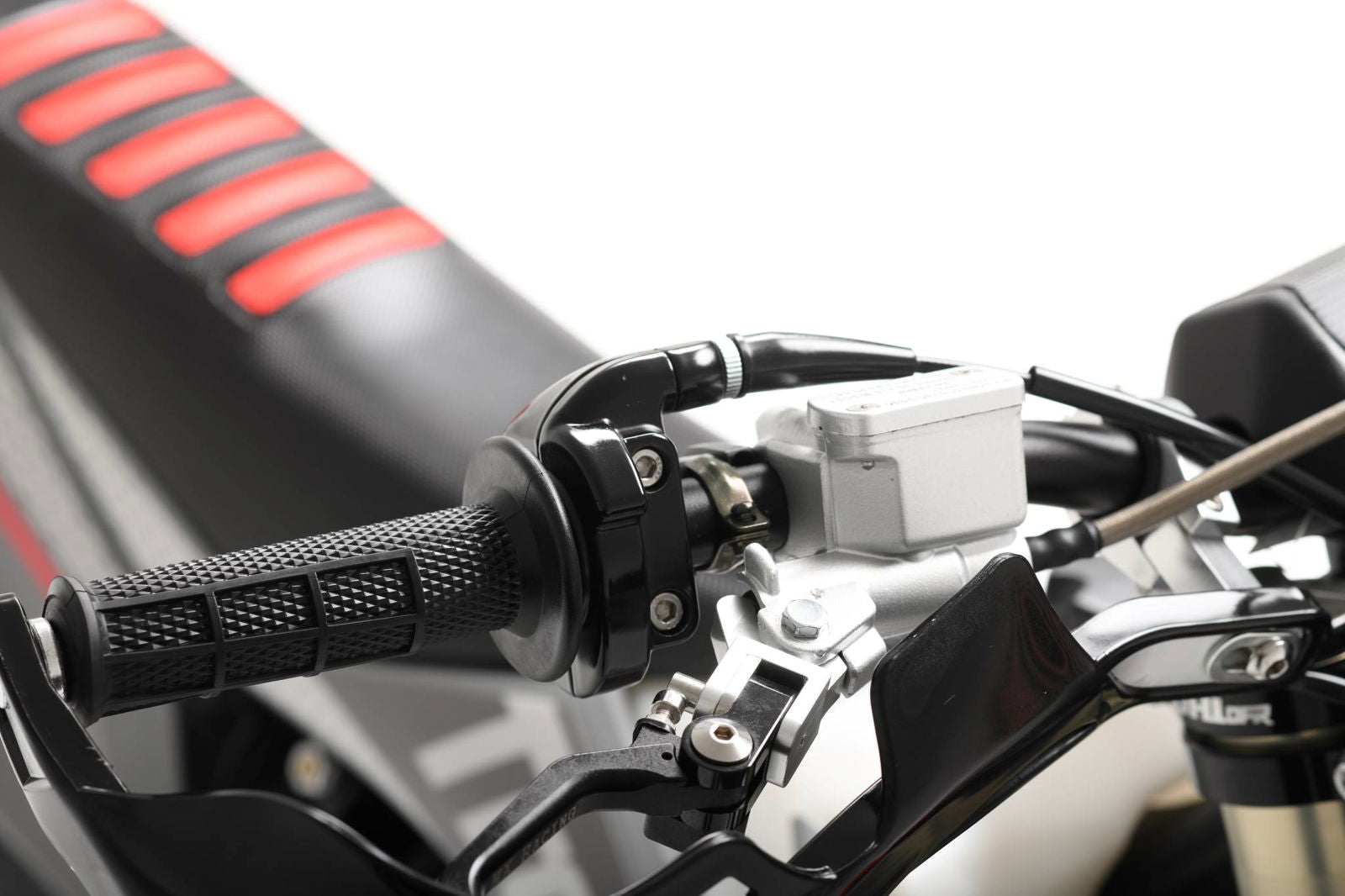

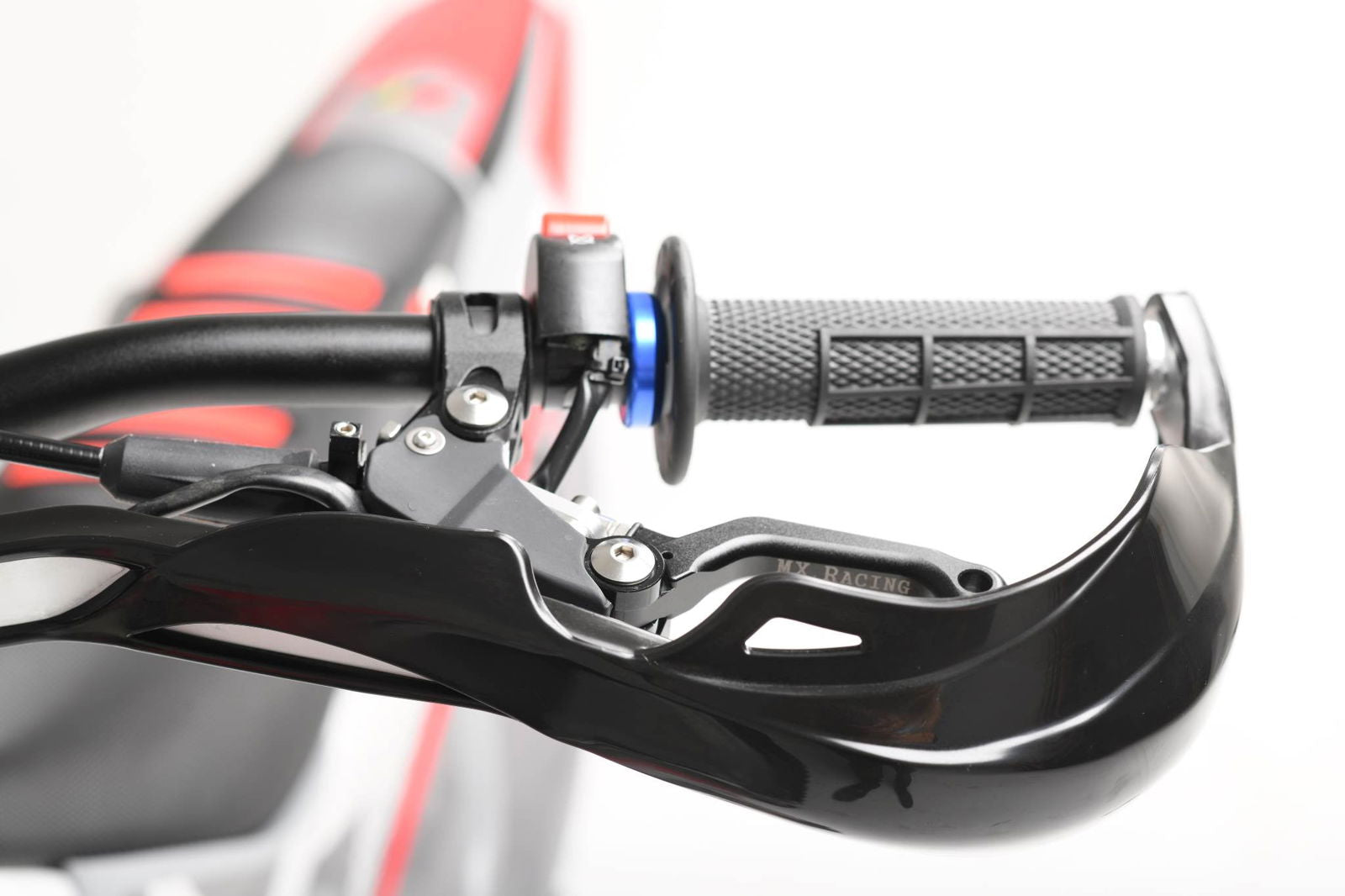

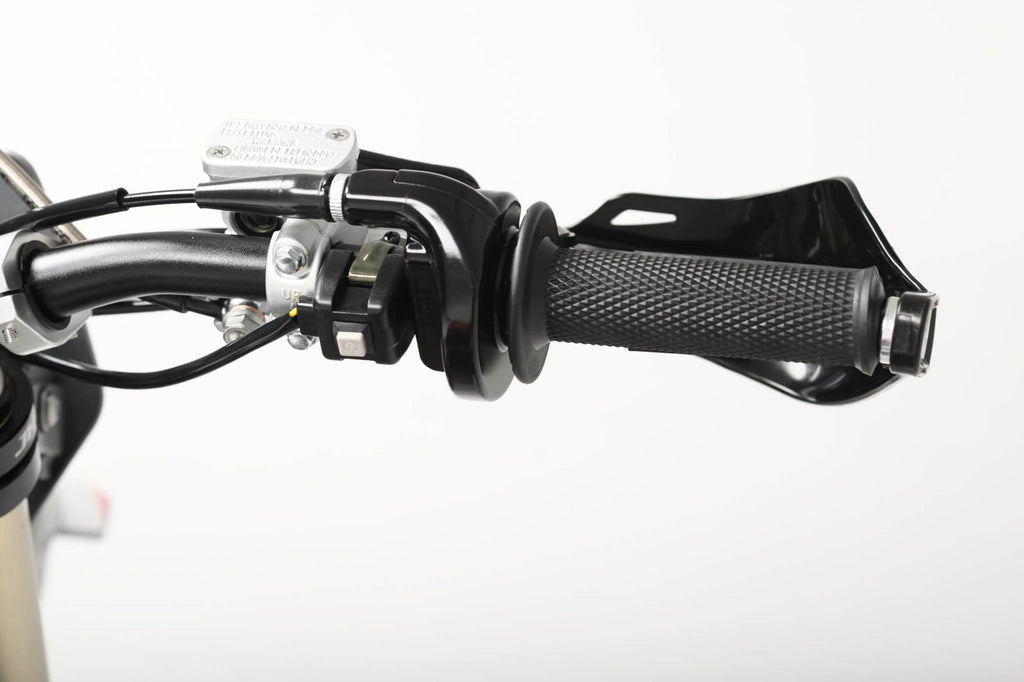

| Handle levers | CNC alloy unbreakable levers |

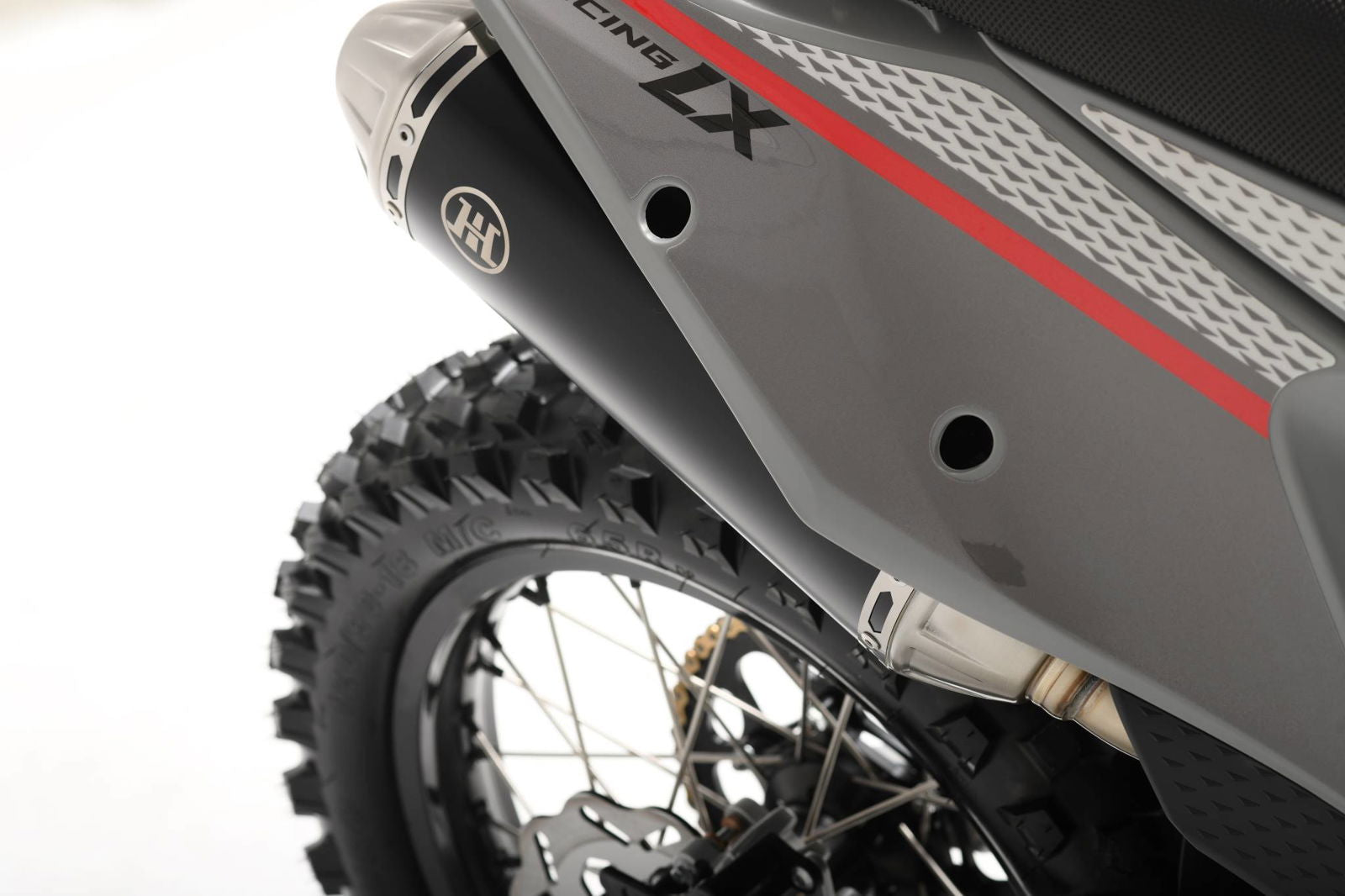

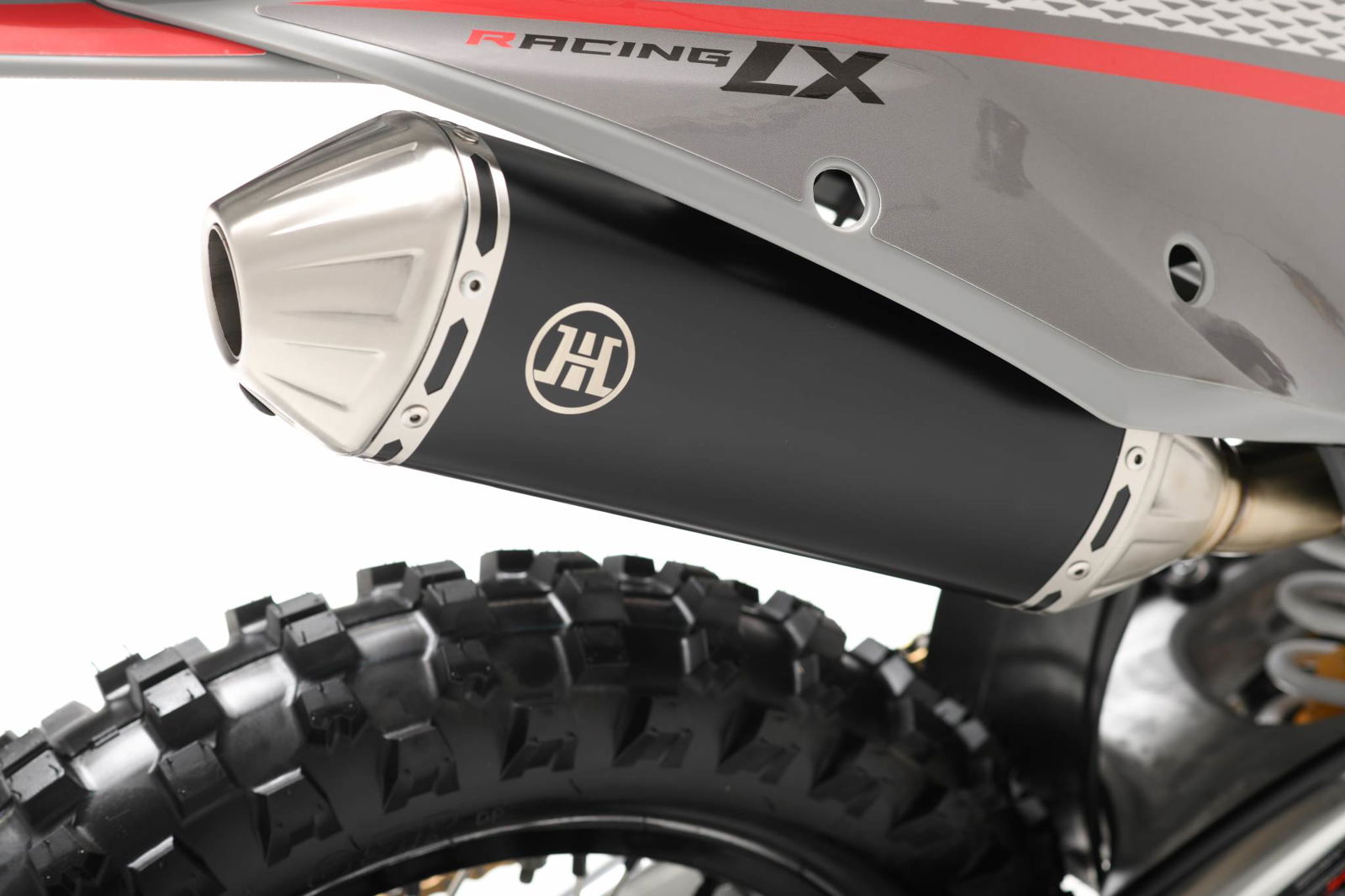

| Exhaust | Stainless steel muffler |
| N.W/LBS | 121 KGS / 266.2 LBS |
| G.W/LBS | 166 KGS / 365.2 LBS |
Manufacturer description and riding guidance
From the existing catalog description. Confirm model-specific claims with Lee Motorsports before ordering.

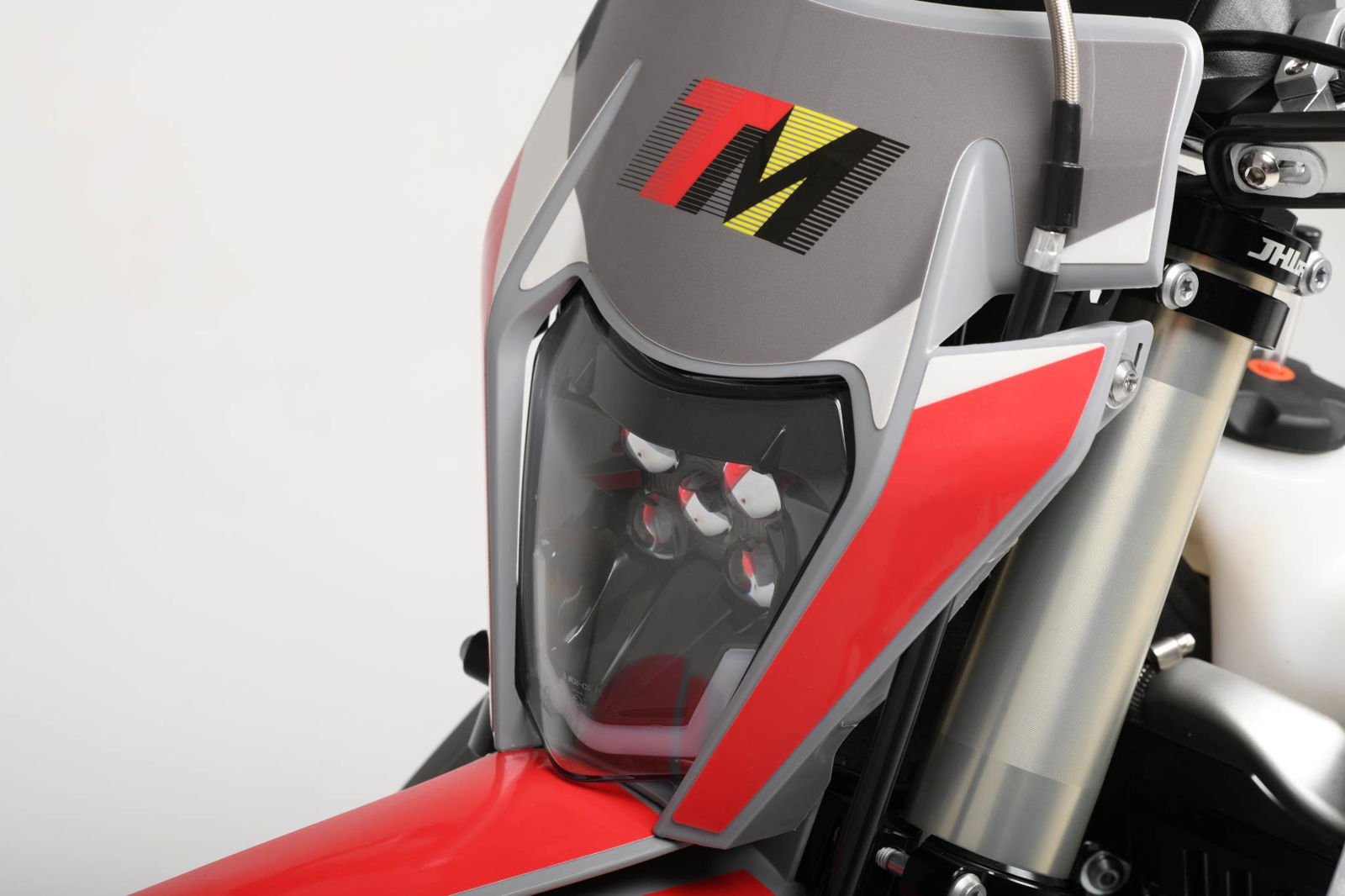

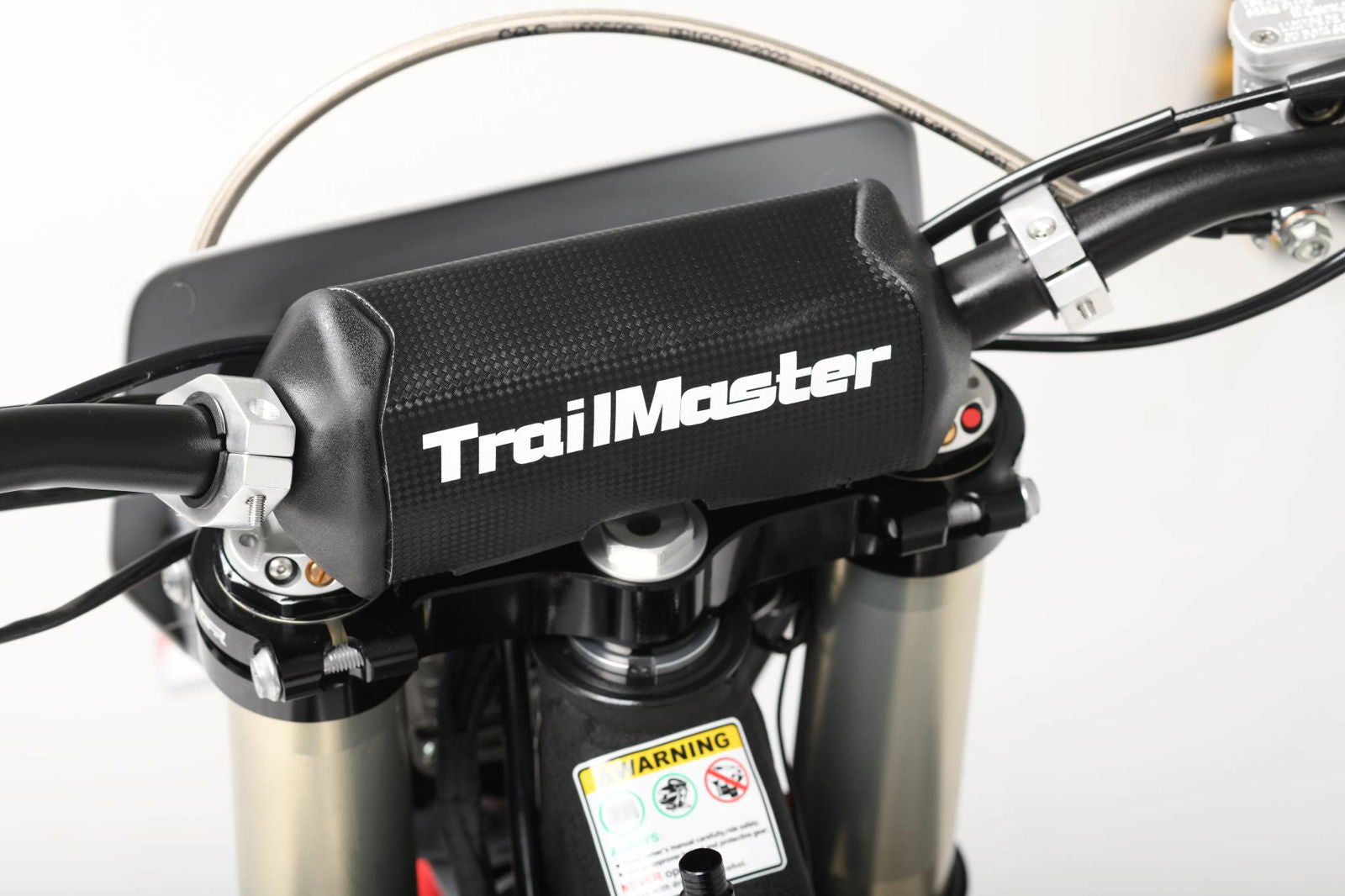

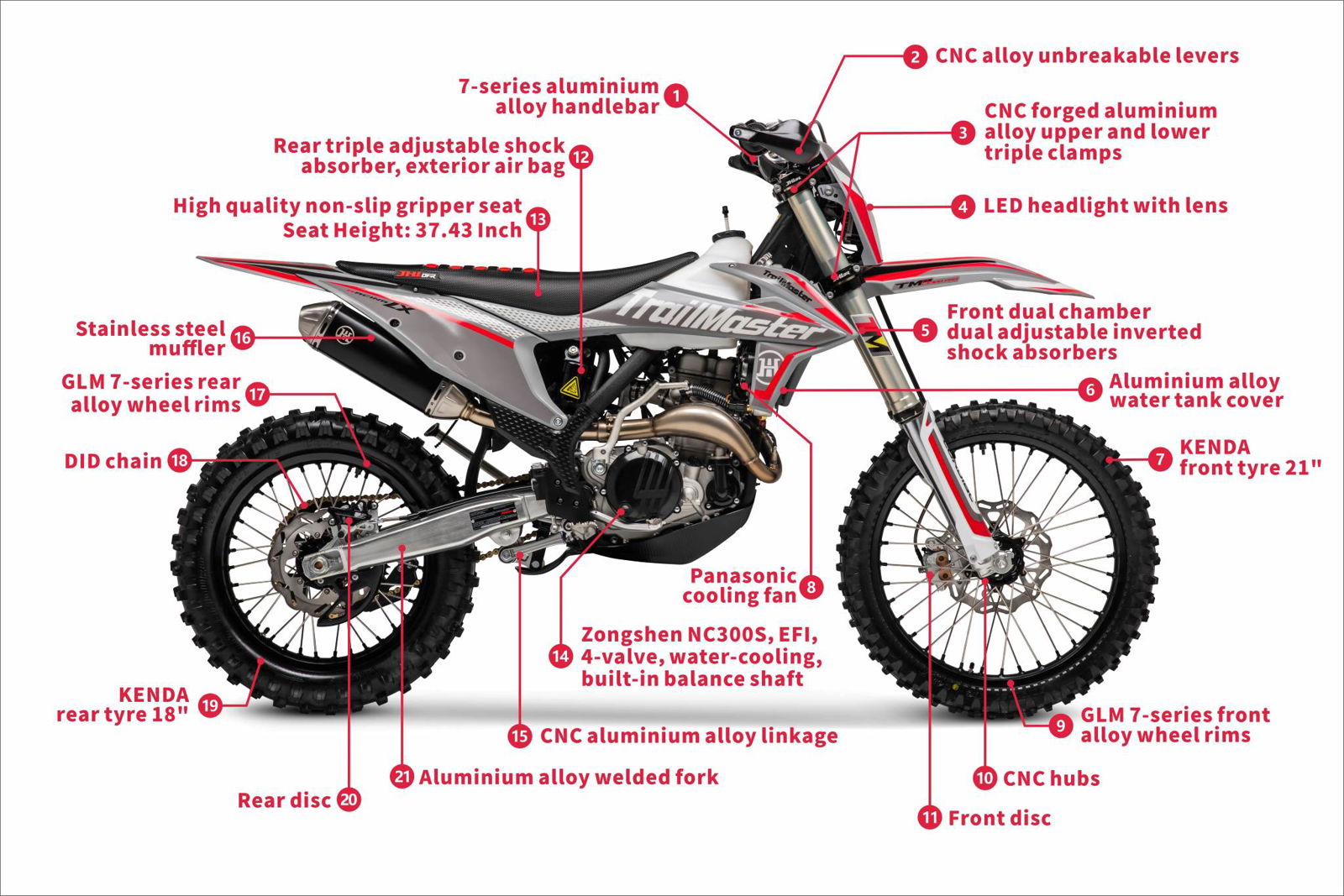

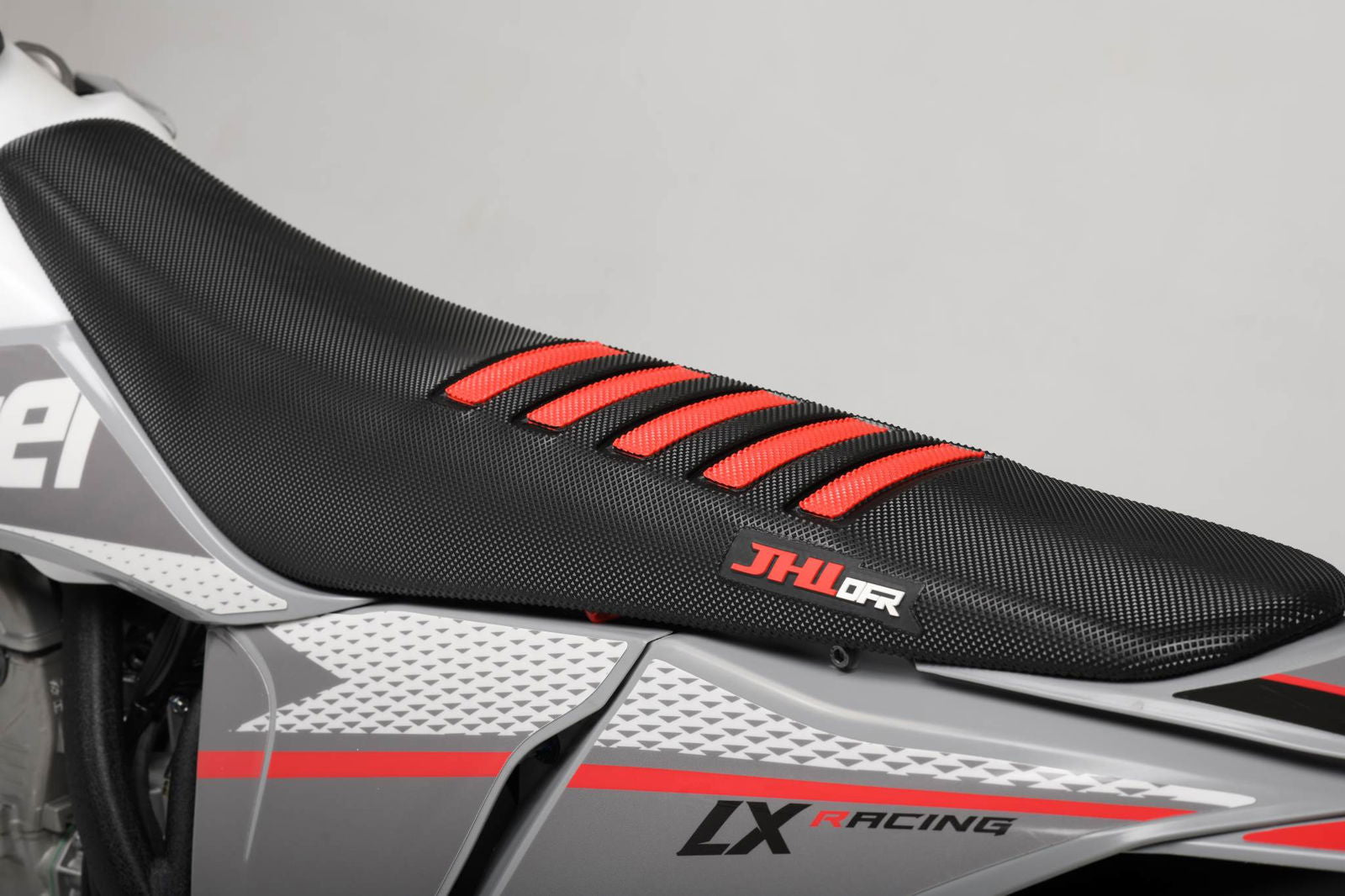

The TrailMaster LX300-Pro Dirt Bike NC300 EFI boasts a variety of premium features, including a spacious frame, an inverted 54/60-950mm dual adjustable front shock absorber, a high-quality rear dual adjustable shock absorber, and a performance stainless steel muffler. Other notable components include a high-quality LED headlight, CNC forged alloy wheels, high performance CHOCHO 520HDS chain, CNC alloy unbreakable levers, and CNC forged alloy upper and lower triple clamps. The bike is equipped with a waterproof wire harness, non-slip gripper seat, and quality front and rear disc brakes, creating a full-on motocross experience. Its ergonomics and race suspension system allow for natural and effortless handling, making it suitable for any terrain. Featuring electronic CDI ignition, the bike starts with ease and maintains a smooth ride in all gears, providing a broad, even power band.
Powerful water-cooled 283cc (23hp) Zongshen balanced shaft EFI engine
Inverted 54/60-950mm dual adjustable front shock absorber
Additional catalog specifications are awaiting confirmation. Contact us for the details needed to choose your vehicle.
