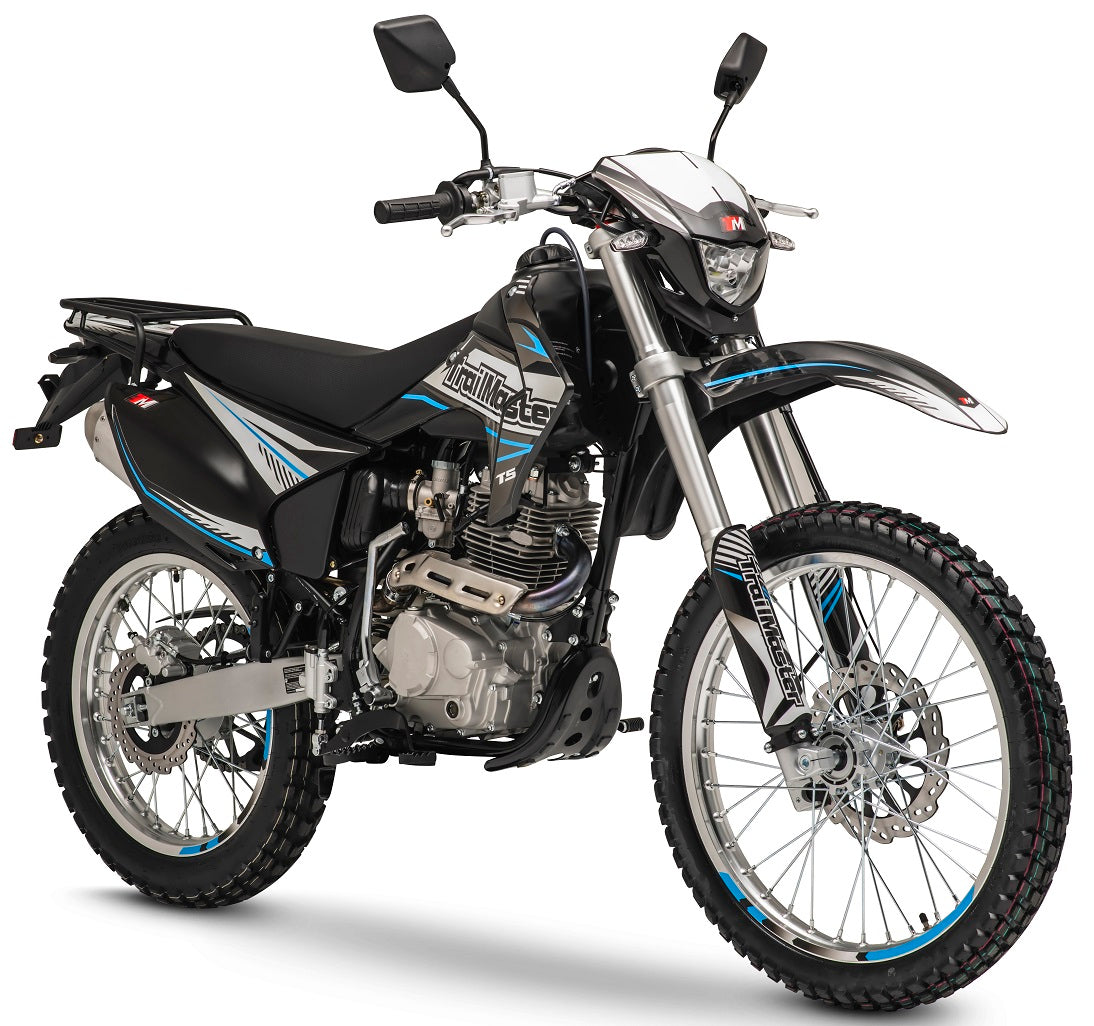

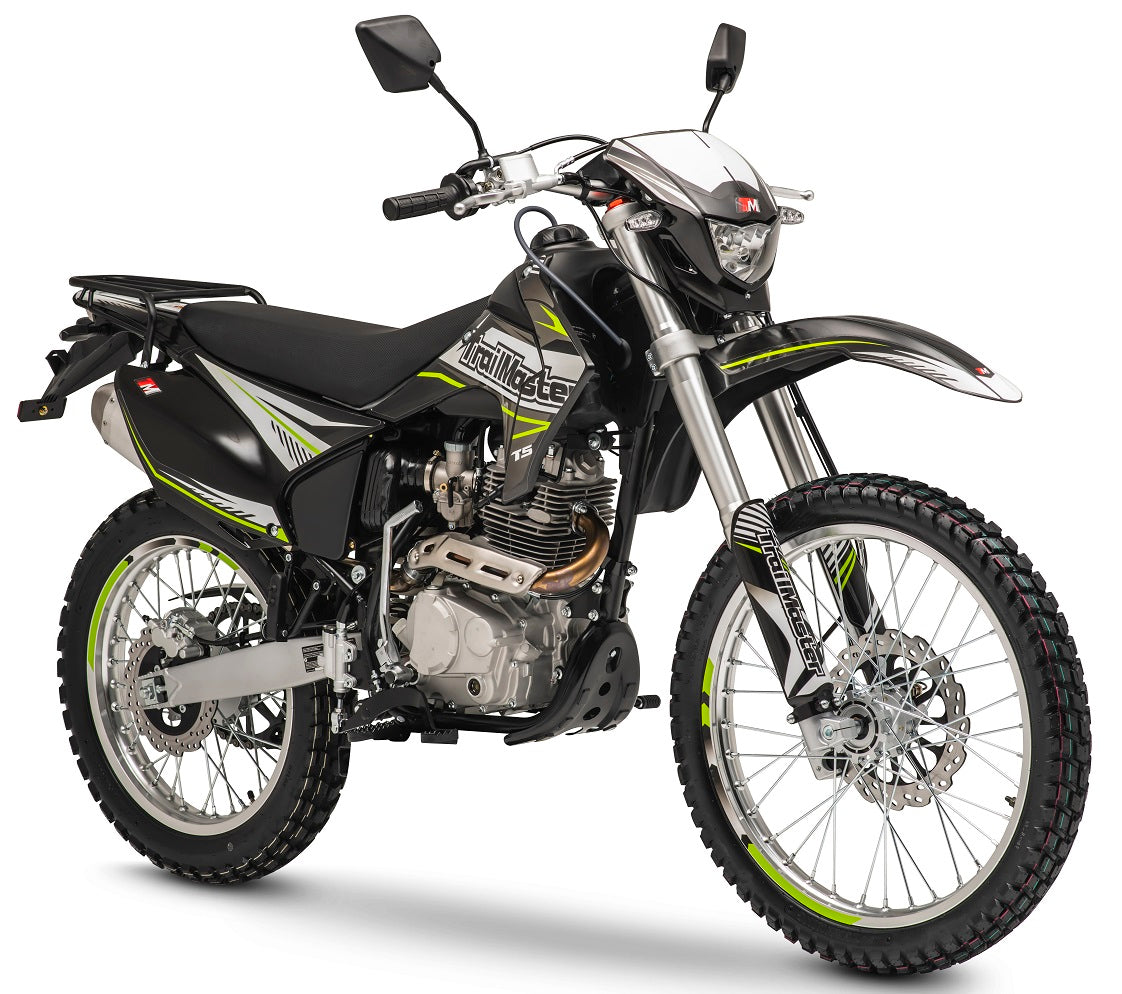

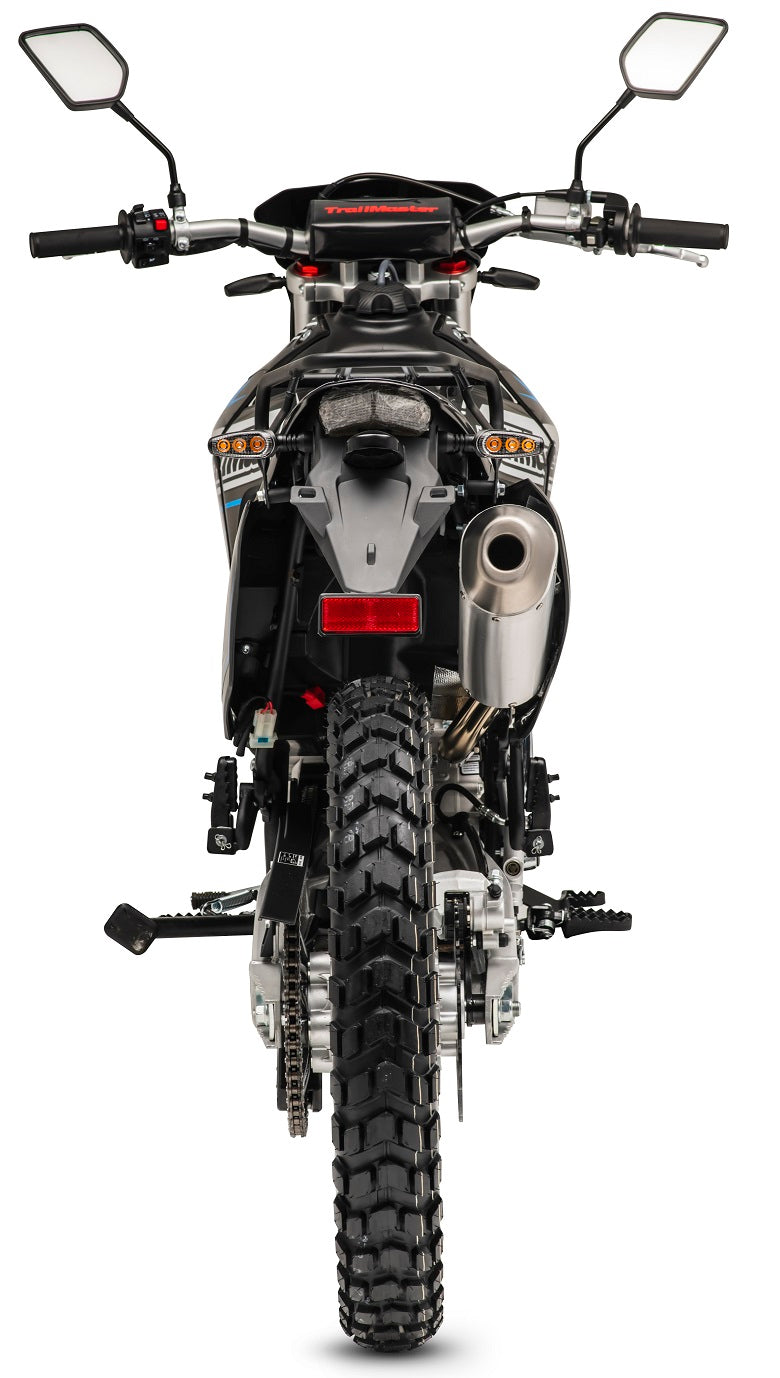

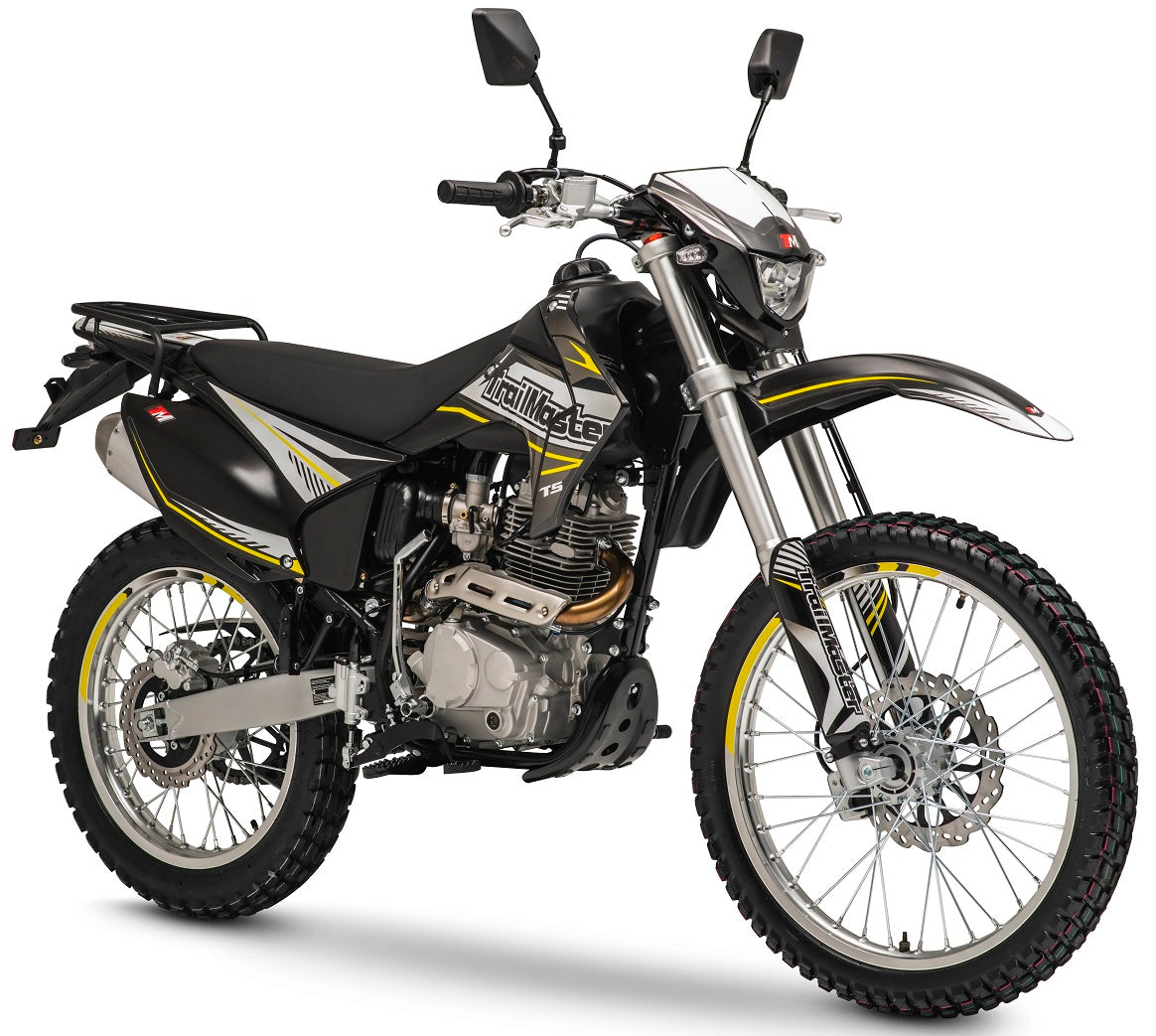

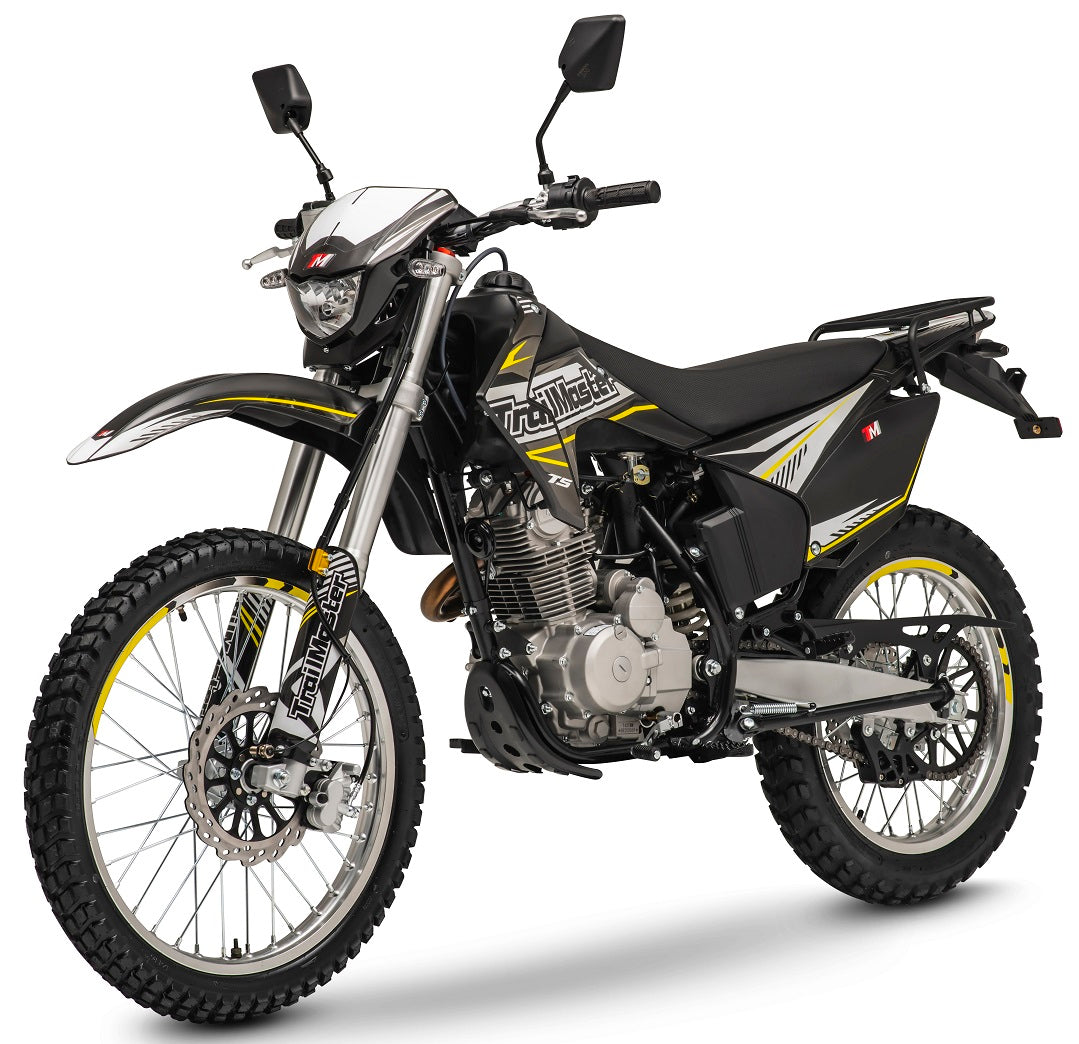

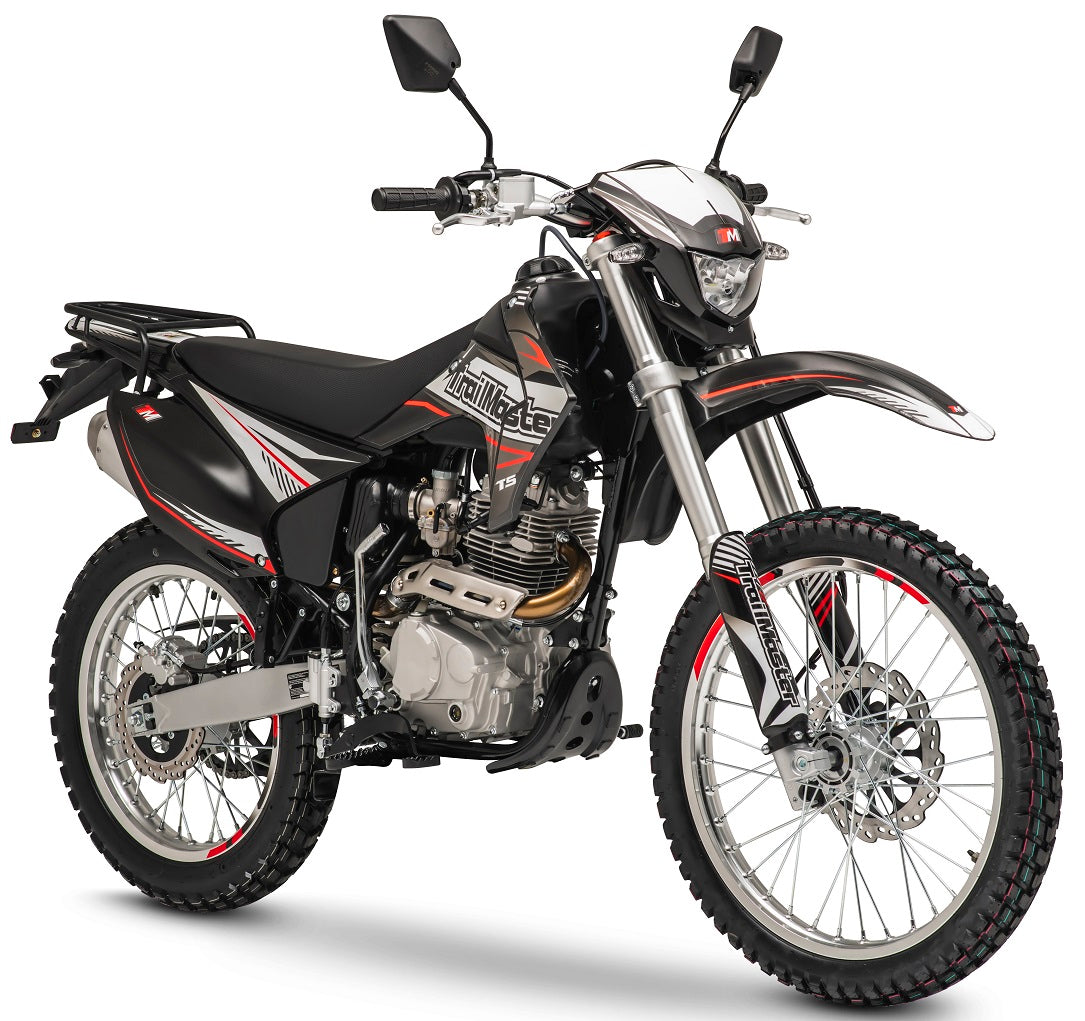

Photos show the catalog model. Confirm the selected configuration and color with Lee Motorsports.
TrailMaster / Dirt Bikes

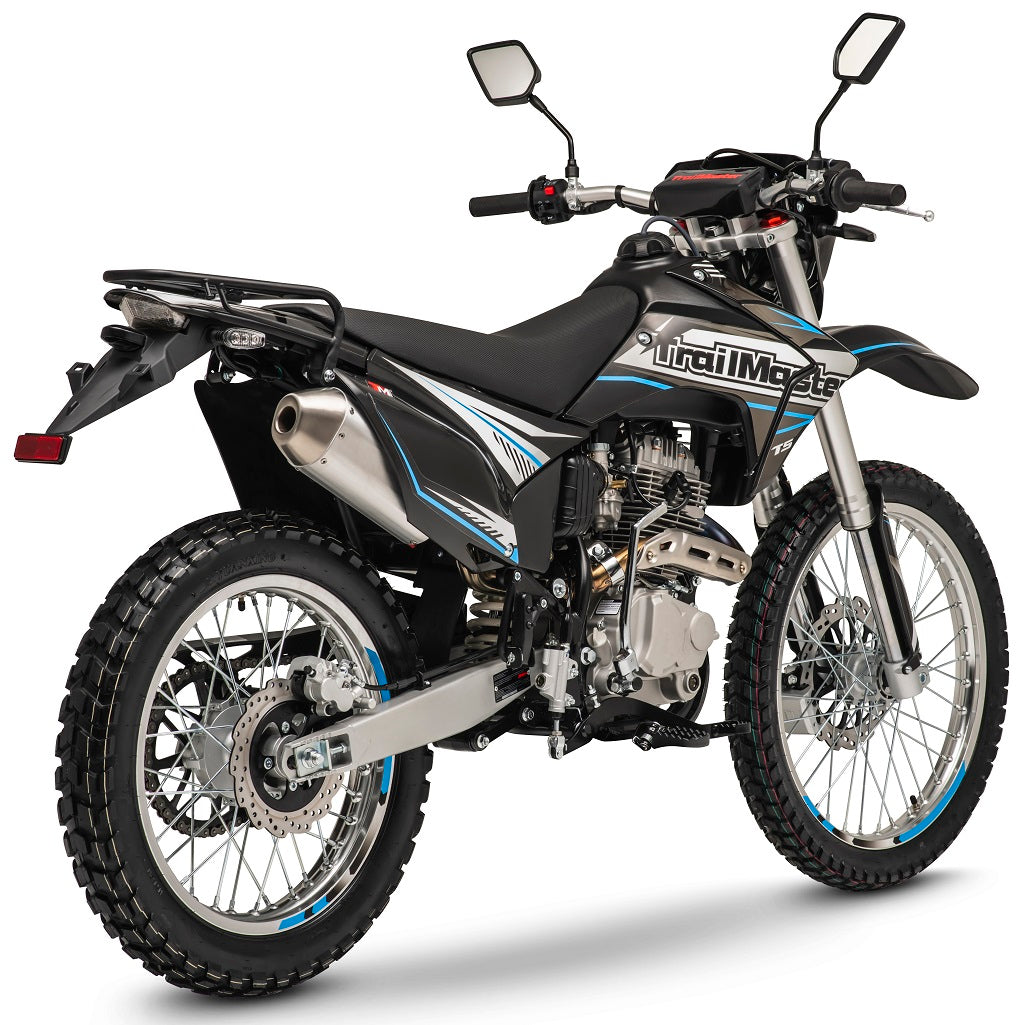

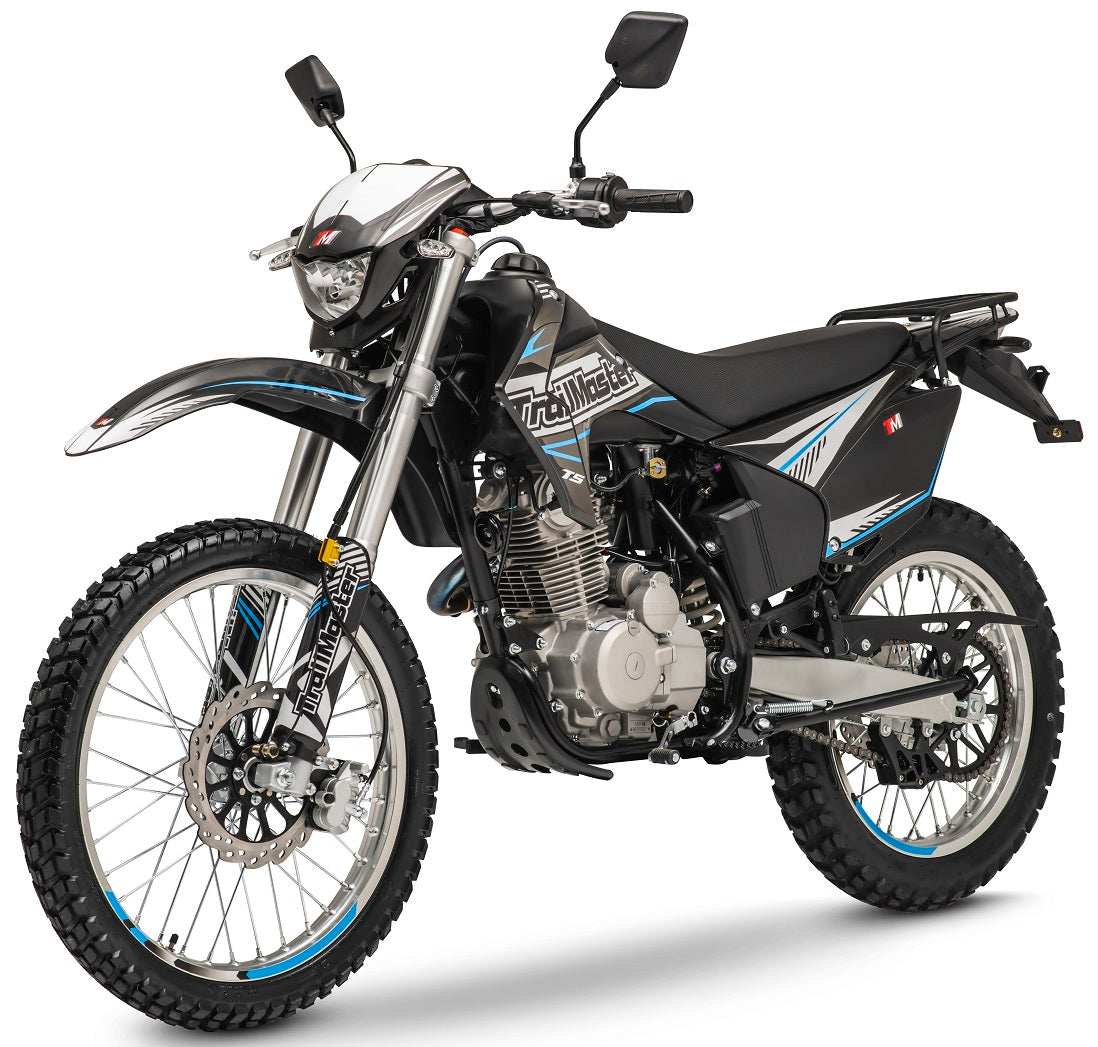

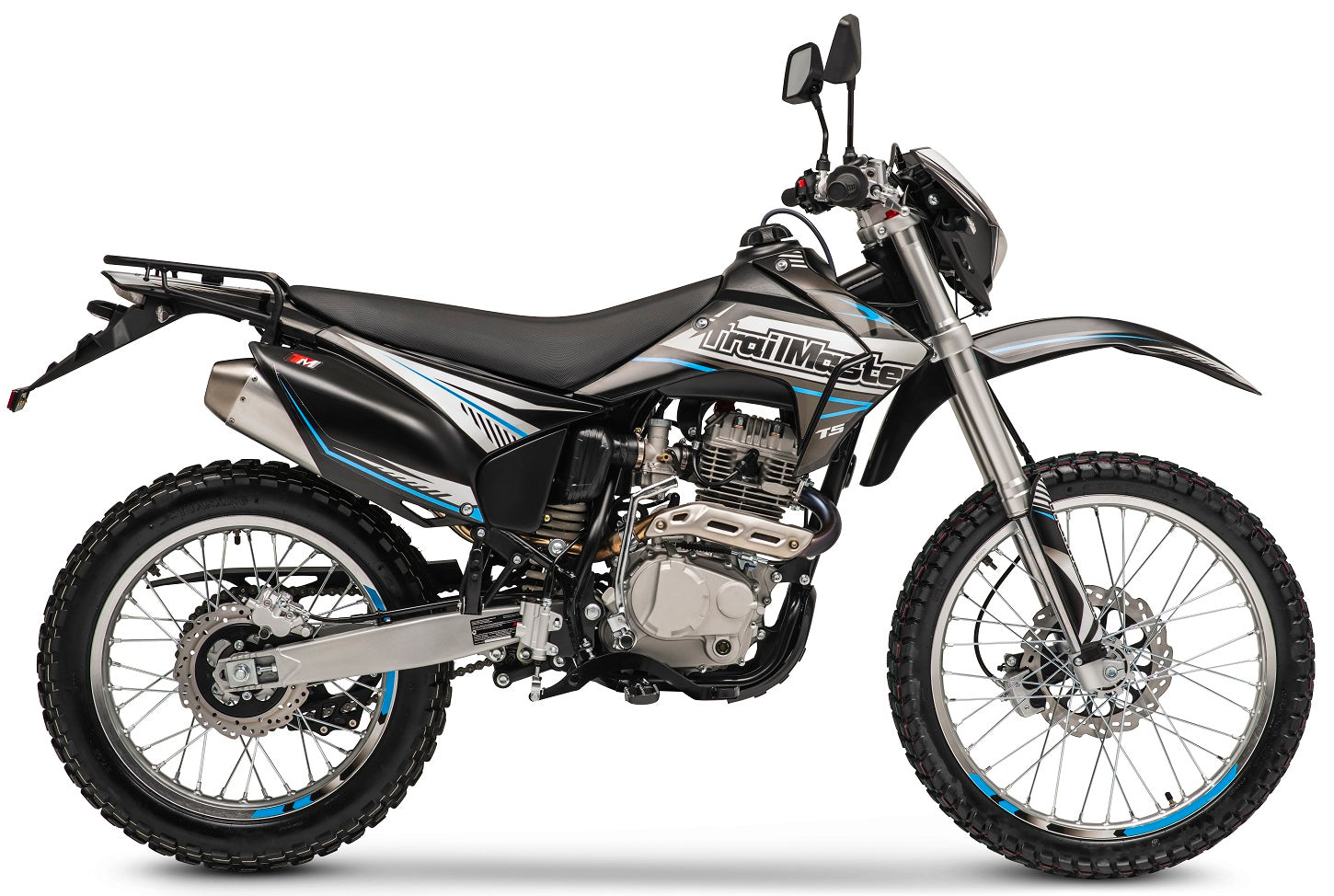

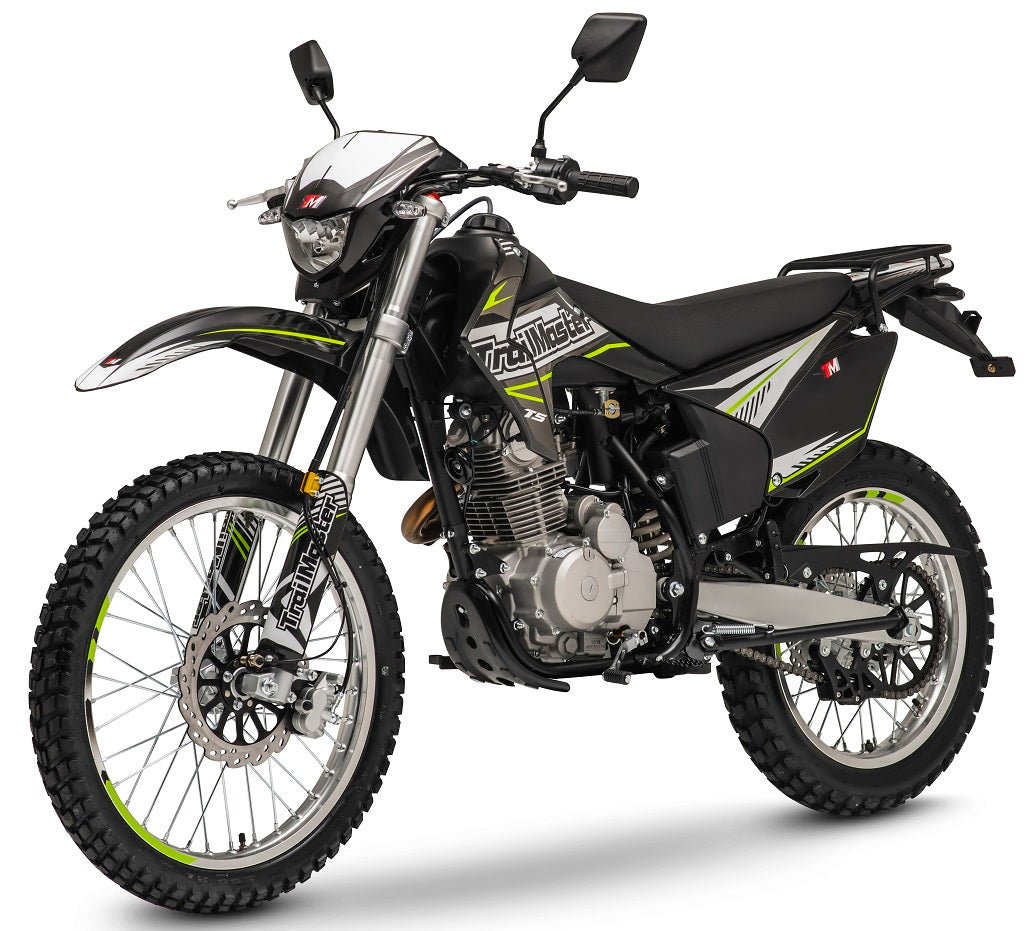

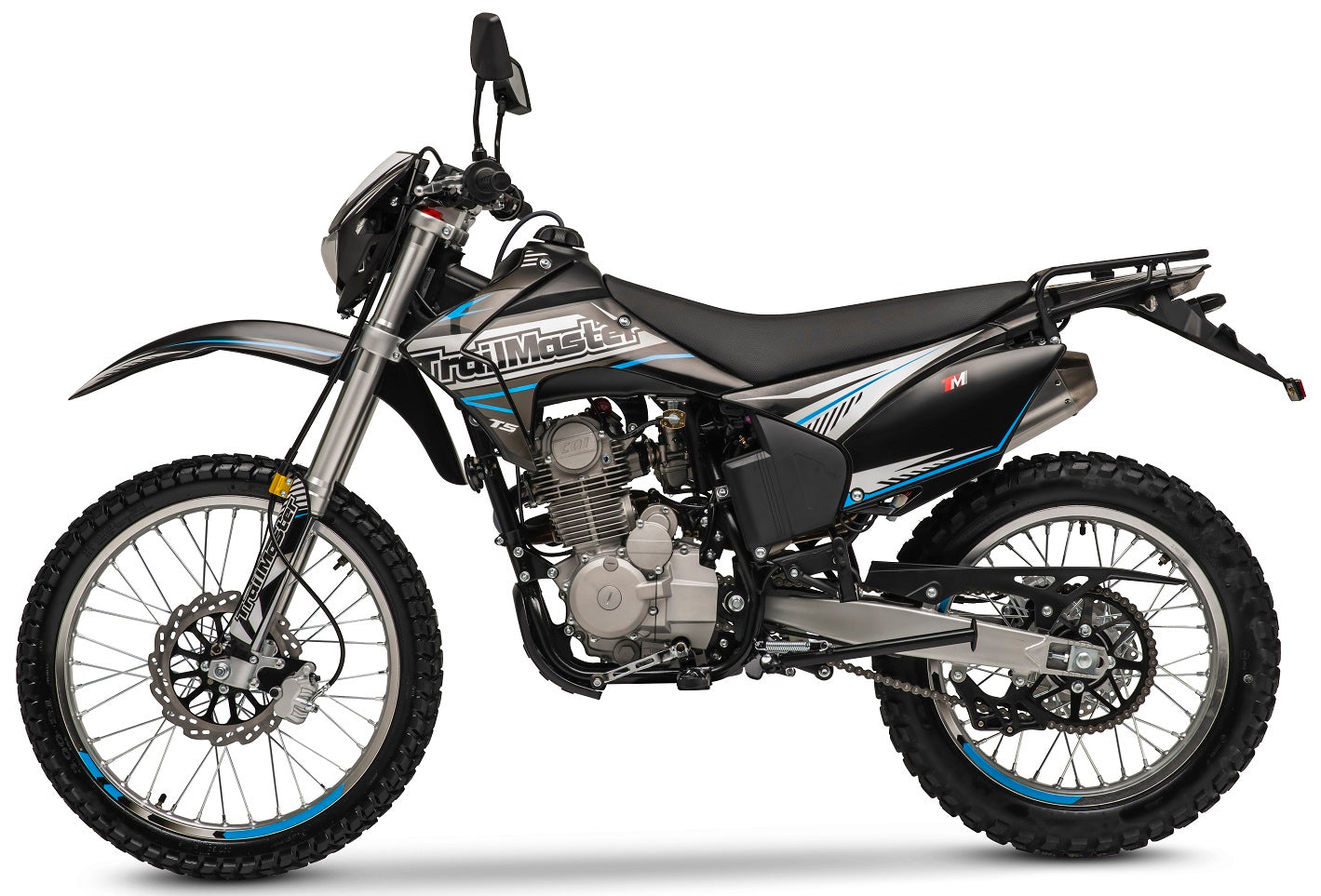

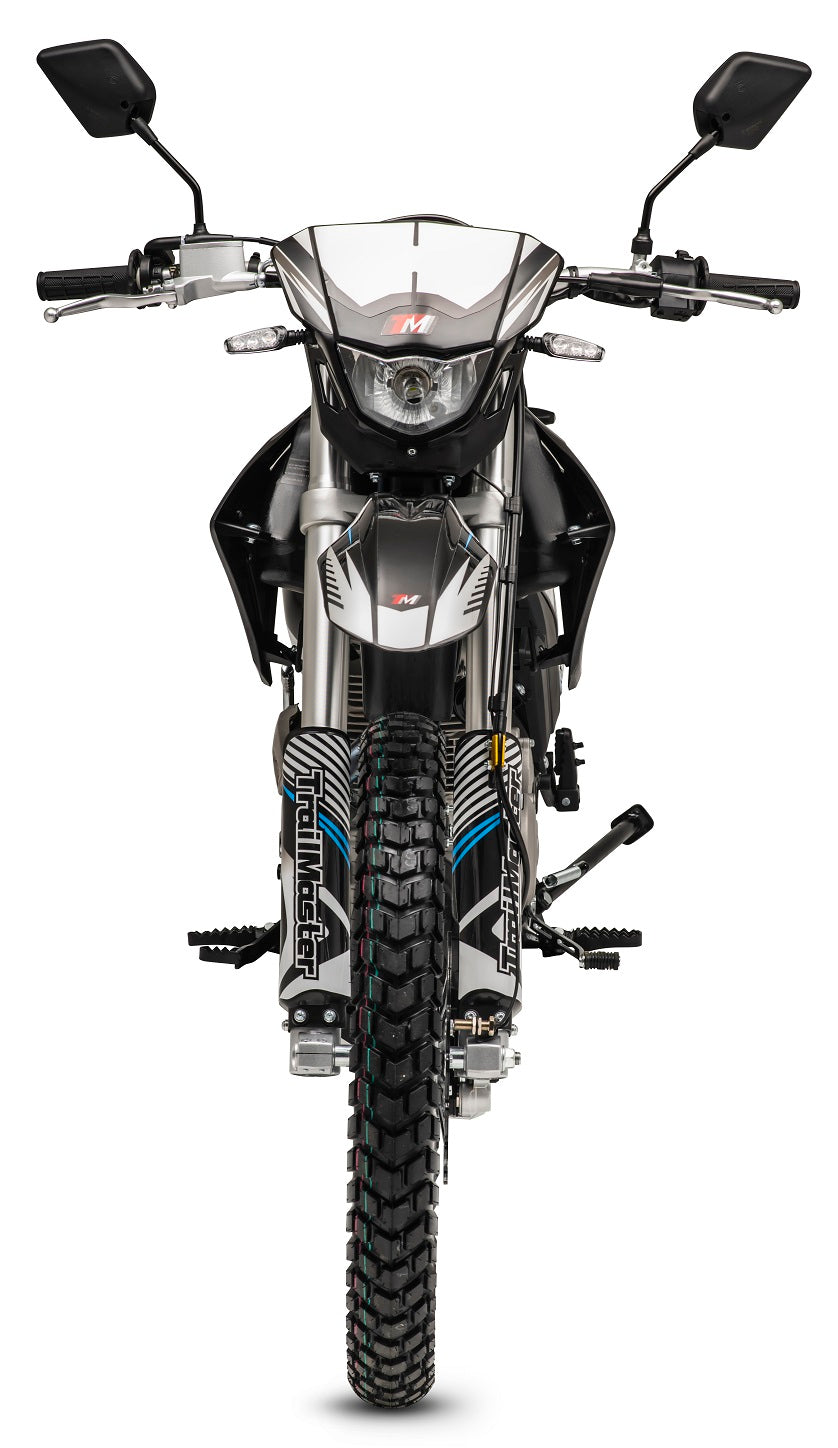

TrailMaster T5 Dual Sport Dirt Bike, 5-Speed Manual, 223cc Engine, Dual Disc Brakes, Electric Start with Kick backup, (21/18) Wheels
TM-T5-BLUE
Shipping unavailable
Confirm delivery or pickup arrangements with Lee Motorsports. This listing price is not an out-the-door quote.
Shipping and local pickup are separate options. Available fulfillment methods and final charges are confirmed at checkout.
Talk through your options · (417) 461-4289
GET TO KNOW YOUR MACHINE
VEHICLE OVERVIEW
Explore the confirmed specifications and complete catalog information for this vehicle below.
SPECIFICATIONS & DETAILS
Engine and performance 6 details
| Engine Type | Zongshen CB250D-G,Single cylinder, four-stroke |
|---|---|
| Displacement (ML) | 223cc |
| Max Power(Kw/r/min） | 12.00/7000（1±1.5%） |
| Max Torque(N.m/r/min） | 17.50/5500（1±1.5%） |
| Max. Speed | 57 M/H |
| Compression Ratio | 9.6：1 |
Transmission and drivetrain 2 details
| Chain | 520 CHOCHO |
|---|---|
| Transmission | Chain Drive |
Electrical and battery 1 details
| Ignition | CDI |
|---|
Dimensions and weight 4 details
| Overall Size (L x W x H) | 2100mm*810mm*1180mm / 82.74 * 31.91* 46.49 Inch |
|---|---|
| Wheel Base | 1400 mm / 55.16 Inch |
| Seat Height | 890 mm / 35.07 Inch |
| Ground Clearance | 290 mm / 11.43 Inch |
Suspension and brakes 3 details
| Rear Shock | Built-in airbag rear shock absorber |
|---|---|
| Front Brake | Disc 252mm |
| Rear Brake | Disc 220mm |
Tires and wheels 2 details
| Rims | Aluminium |
|---|---|
| Tires | YUANXING FT: 80/100-21 - RR: 110/100-18 |
Capacity and seating 2 details
| Max. Load Capacity (kg) | 150 |
|---|---|
| Fuel Capacity | 2 Gal/9L |
Features and included equipment 2 details
| Frame | High quality Steel Frame |
|---|---|
| Handle bar | Aluminium alloy Reducing Handle Bar |
Shipping, assembly, and delivery 1 details
| Packing Size | 70.92*18.12*34.78 Inch/ 1800*460*870 mm |
|---|
Additional catalog details 10 details
| Shift Type | International five gears |
|---|---|
| Start Type | Electric / Kick Start |
| Minimum turning radius | 2600mm |
| Lubricant Type： | SF 15W/40 |
| Hubs | Aluminium |
| Front Fork | Inverted front shock absorber, 48/51-800mm |
| Upper and Lower Connecting Board | Aluminium alloy |
| Exhaust | Stainless Steel |
| N.W/LBS | 118.00 KGS / 259.6 LBS |
| G.W/LBS | 140.00 KGS / 308.00 LBS |
Manufacturer description and riding guidance
From the existing catalog description. Confirm model-specific claims with Lee Motorsports before ordering.

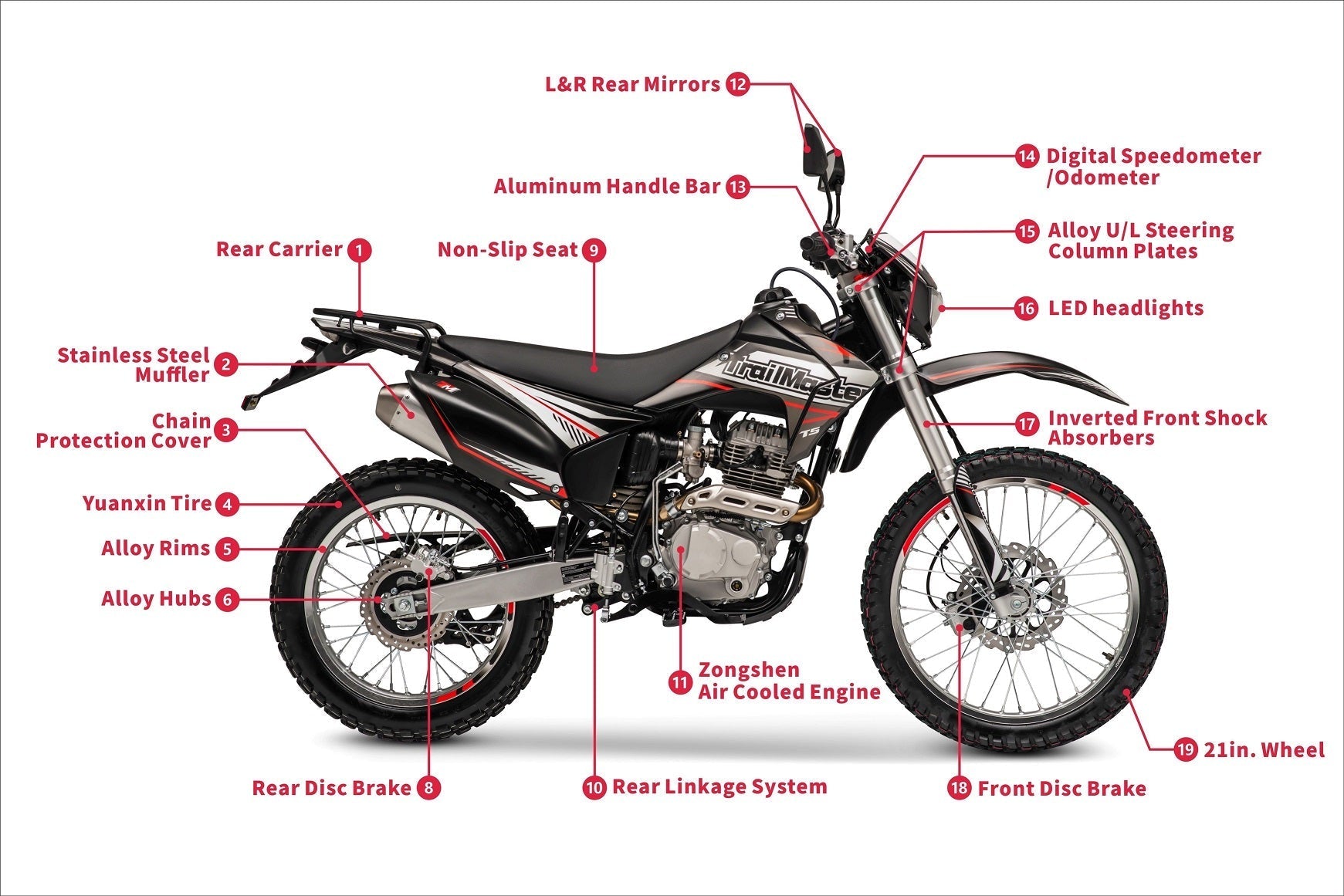

From the perspective of a product expert, Trailmaster proudly presents the all-new T5. This remarkable addition to Trailmaster's dirt bike lineup boasts upgraded performance and a sleek new frame design. Featuring adjustable inverted front forks, electric and kick start options, and a lightweight all steel twin-spar style frame, this bike is ready for any adventure. The outstanding top speed of up to 60 mph is thanks to the Zongshen engine and 5-speed manual transmission. The 21-inch front tire and 19-inch rear tire provide exceptional ground clearance, while the airbag-style shock in the rear suspension ensures a smooth ride. With lightweight aluminum rims for a superior power-to-weight ratio, the T5 outperforms its competitors.

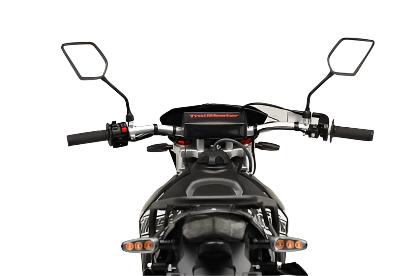

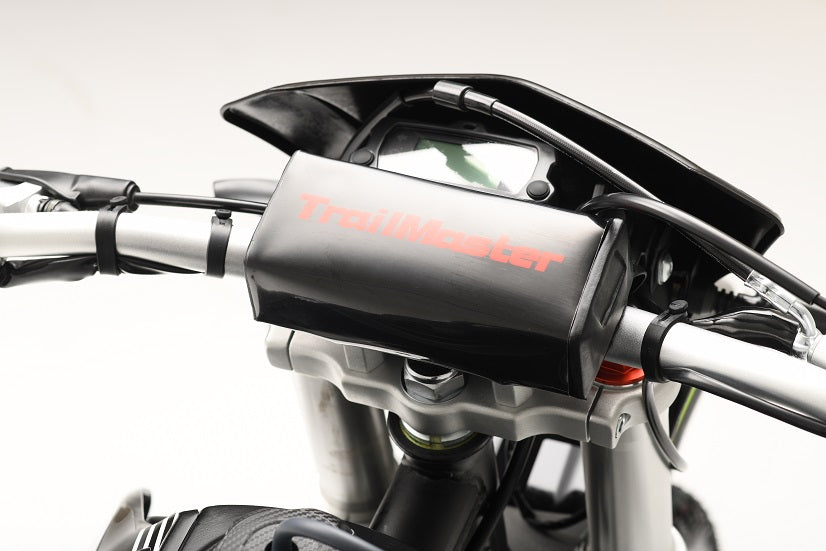

This TrailMaster T5 Dual Sport Dirt Bike features a digital display for easy access to information, as well as an LED headlight for nighttime rides. It also includes blinkers, brake lights, side view mirrors, and a license plate holder, making it compliant with street legal standards in a variety of states.
Additional catalog specifications are awaiting confirmation. Contact us for the details needed to choose your vehicle.
