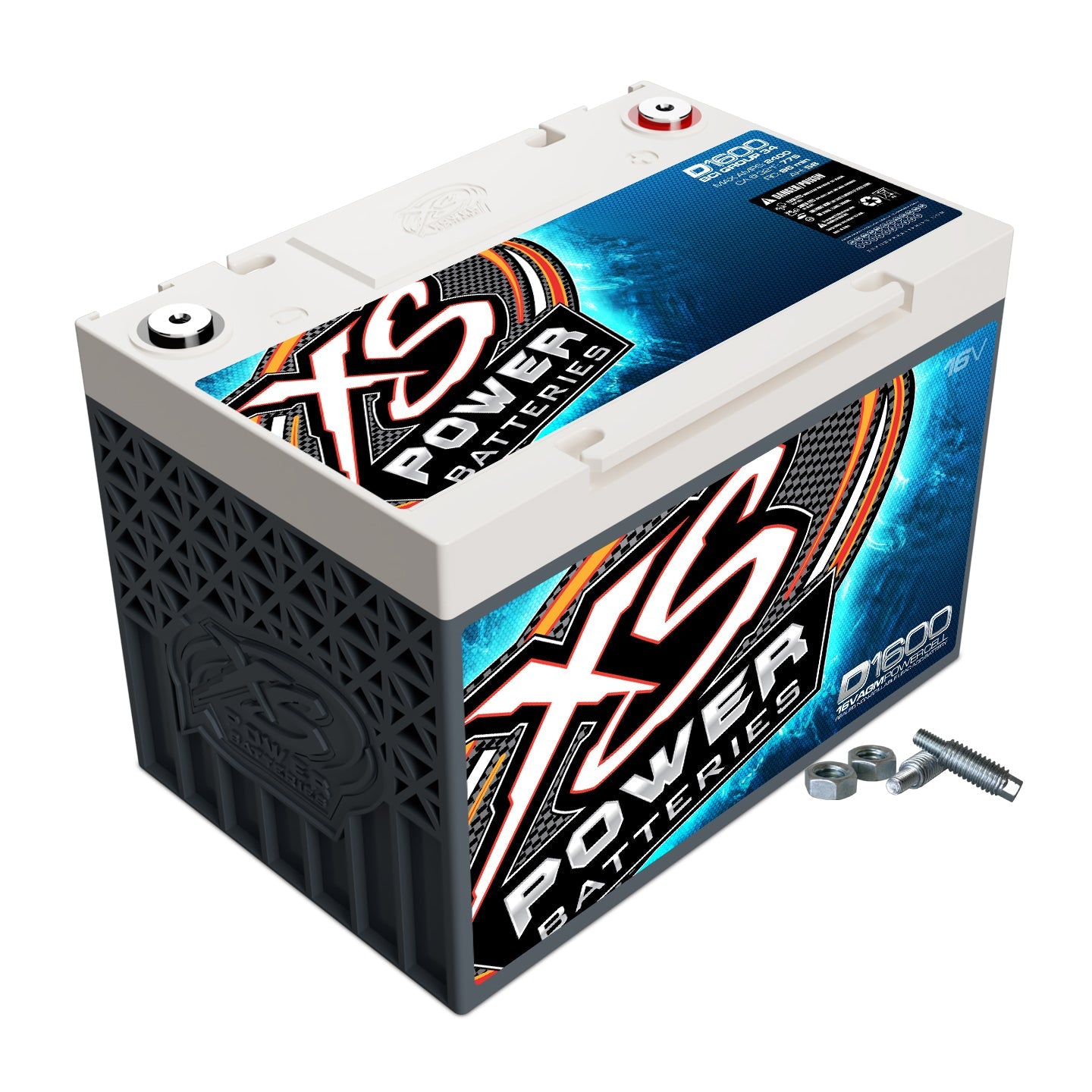

XS Power D1600 16V AGM Racing Battery is a battery option for a compatible motorsports electrical system. Its AGM construction uses absorbent glass mat electrolyte retention in a sealed, valve-regulated lead-acid design.
Lee Motorsports is a nationwide authorized XS Power dealer.
What D1600 brings to your setup
- 16V AGM D-Series model D1600.
- 56 Ah capacity at the published C/20 test rate.
- 682 CCA; compare the vehicle’s cold-start requirement.
- 2400 maximum amps is a peak rating, not a continuous-current or runtime promise.
- Published battery weight: 46.68 lbs..
Specifications
| Model |
D1600 |
| Product type |
AGM Racing Batteries |
| Nominal voltage |
16V |
| Technology |
AGM |
| Series |
D-Series |
| Cranking amps (CA) |
775 |
| Cold cranking amps (CCA) |
682 |
| Maximum current (amps) |
2400 |
| Capacity (Ah, C/20) |
56 |
| Reserve capacity (minutes) |
96 |
| BCI reference group |
34 — verify dimensions and terminal orientation |
| Battery weight |
46.68 lbs. |
| Length |
10.24 in |
| Width |
6.46 in |
| Height |
7.01 in |
Physical fit and terminal checks
10.24 × 6.46 × 7.01 inches (L × W × H). Body height; allow extra clearance for terminals and cables. Check the manufacturer’s dimensional and installation information.
- Measure the tray and usable length, width and height. Include the hold-down, battery cables and terminal clearance.

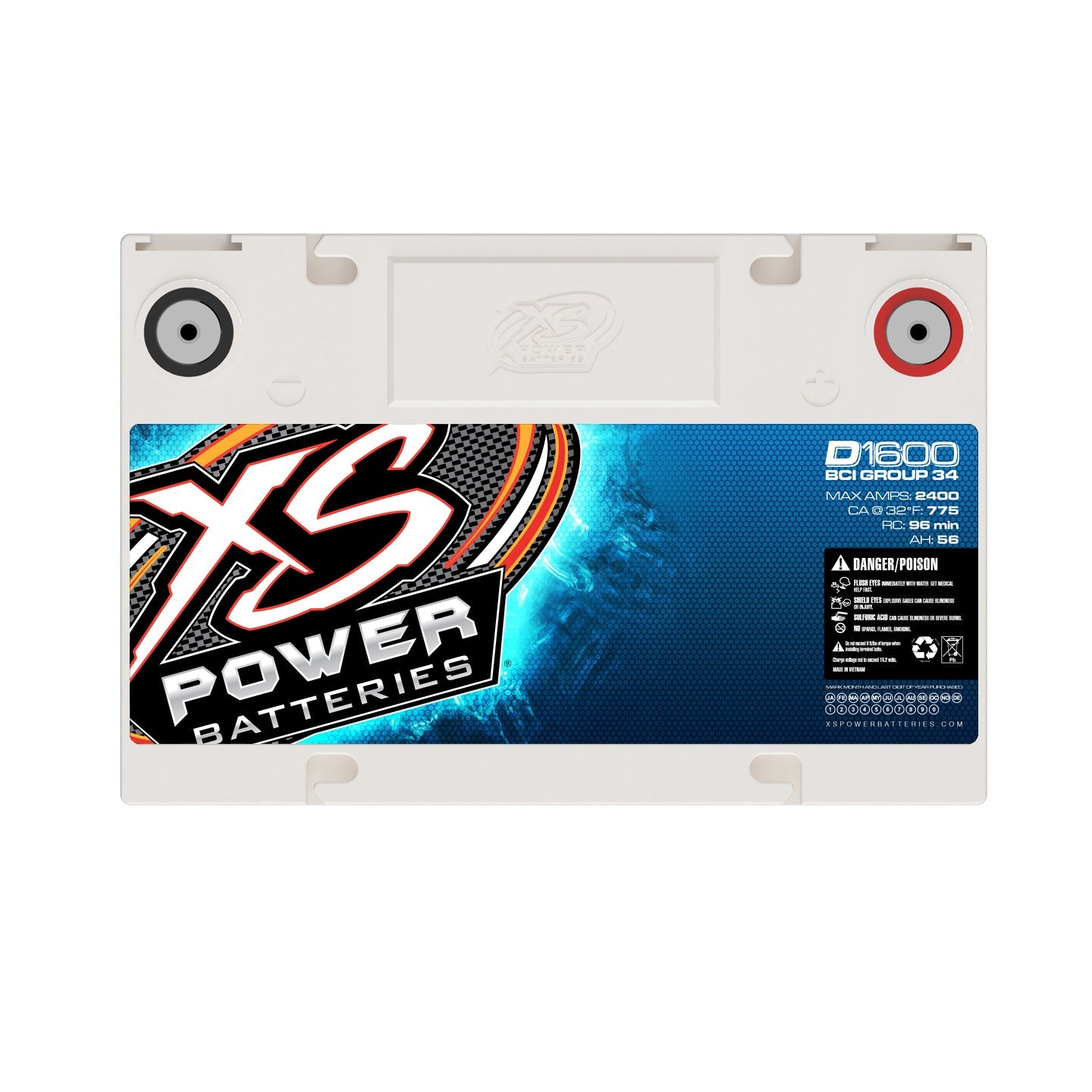

- Identify positive and negative terminal locations and match the cable end style and fastener size.
- Secure the battery against movement; follow the vehicle’s installation requirements and the applicable battery instructions.
- Check current draw, cable sizing, protection and charging-system output as part of the complete installation.
Included hardware
- 587 Stud Adapter Hardware Included
Practical application examples
-
Between-round race-car loads: Include the fuel pump, ignition, electric fan and data logger in the reserve calculation. Repeated starts plus time in staging can require more stored energy than a single engine start.
-
Electrical-system planning: For a 16V setup, verify the starter, ECU, ignition, pumps and charger. This is a system-voltage choice, not a direct replacement for an ordinary 12V vehicle.
Charging, storage and care
Use an automatic charger with an AGM profile and the correct system voltage. Follow the battery’s applicable instructions and label for current, temperature and voltage limits. Flooded-battery or repair/desulfation settings should not be assumed suitable. Check state of charge during storage and before demanding use.
14V/16V AGM Battery Instructions (PDF)
Questions about D1600
Will D1600 fit my vehicle?
The confirmed physical dimensions are 10.24 × 6.46 × 7.01 inches (L × W × H). Body height; allow extra clearance for terminals and cables. Compare your tray, polarity, terminal style and hold-down before ordering.
What do the power ratings mean?
CA and CCA describe starting performance under different test conditions. Maximum amps describes peak current capability. Amp-hours describe stored charge at a stated test rate; these ratings are not interchangeable. Actual runtime depends on load, temperature, voltage cutoff and battery condition.
Which charger should I use?
Use an automatic charger with an AGM profile and the correct system voltage. Follow the battery’s applicable instructions and label for current, temperature and voltage limits. Flooded-battery or repair/desulfation settings should not be assumed suitable. Check state of charge during storage and before demanding use.
How does D1600 compare with other 16V AGM models?
Compare XS Power S1600 16V AGM Racing Battery and XS Power XP1000 16V AGM Racing Battery. Review weight, cranking ratings and reserve capacity together. A heavier battery may provide different reserve characteristics; select from the published ratings rather than model name alone.
Manuals, warranty and Lee Motorsports support
14V/16V AGM Battery Instructions (PDF)
14V & 16V XS Power AGM Batteries and Accessories 1 Year Warranty — read eligibility and exclusions (PDF)
Manufacturer warranty coverage depends on the applicable terms, installation and use. Contact Lee Motorsports with your model, order details and symptoms for assistance. Returns are subject to Lee Motorsports’ return policy.
Build the rest of your setup
Ordering and availability
Current price and availability are shown above. Confirm delivery timing and local-pickup eligibility for your exact item with Lee Motorsports. An inventory quantity does not by itself establish that the item is on the Joplin shelf.
